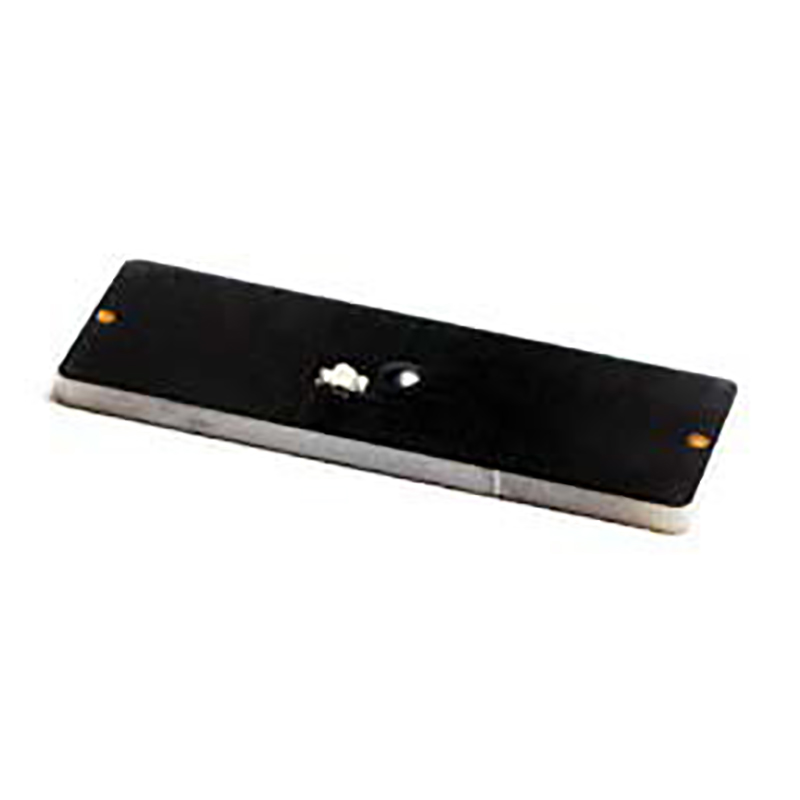

TAG-915-Sensor-6020 UHF RFID Illuminating Tag

TAG-915-Sensor-6020 UHF RFID Illuminating Tag

The Tag-915-Sensor-6020 series is a battery-free RFID electronic TAG with a light-emitting (LED) function. It is a high-frequency electronic tag specifically designed for single-item positioning and features a rapid search function. This label is equipped with an LED light. When the label needs to be located, simply select the EPC number of the label, and the LED light on the label will flash, allowing users to identify the managed items more intuitively and making inventory checks, goods search or other processing procedures easier.

Brand:

ThingMagic（JADAK）

Spu:

M7E-TERA

Overview
Size

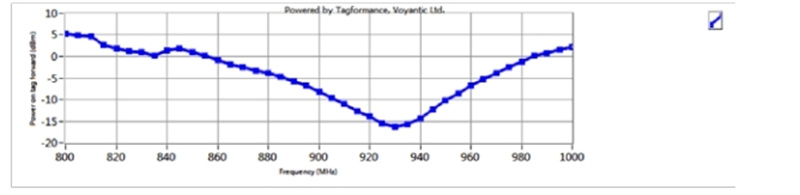

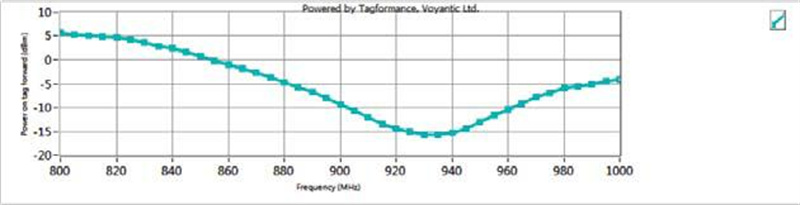

Sex curve test graph
Typical applications
Recommended Products

Overview

Specification parameters

Functional parameters
Model	TAG-915-Sensor-6020L/TAG-915-Sensor-6020M
Frequency range	902Mhz ~ 928Mhz
Chip capacity	EPC 128bits , user 1312bits, TID 96bits
Reading distance	Non-metallic surface: It can reach over 6 meters without lighting and over 3 meters with lighting. Metal surface: It can reach over 5 meters without the light on and over 3 meters with the light on. (The reading distance varies according to different device scenarios.
Chip	XBL2005-KX
Read-write protocol	EPC Class1 Gen2; ISO18000-6C
Data preservation	Fifty years
Function	Read/Write, write once
Physical parameters
Product weight	Non-resistant metal:2.5g	Metal-resistant:7.5g
Product materials	PCB
Color	Black

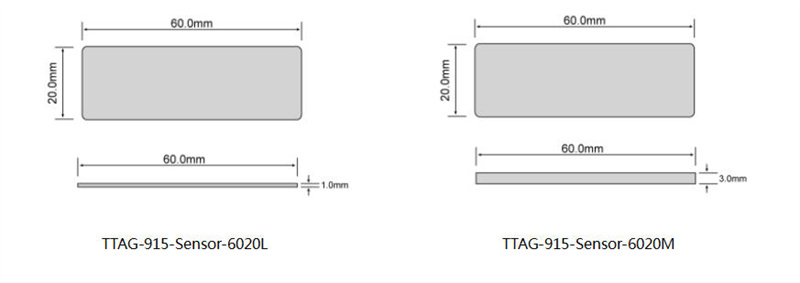

Size	Non-resistant metal:60x20x1.0mm	Metal-resistant:60x20x3.0mm
Installation method	Adhesive backing
Environmental parameters
Working temperature	-20℃~ +80℃
Storage temperature	-20℃ ~ +80℃
IP rating	IP67
Certification	Reach, RoHS, CE
