TAG-915-Sensor-2110011 UHF RFID (LED) audio-visual tags
Tag-915-sensor-2110011 is a battery-free RFID electronic TAG with a light-emitting diode (LED), specifically designed for single-item positioning and featuring a rapid search function. It is an ultra-high frequency electronic tag. This label is equipped with an LED light. When the label needs to be located, simply select the EPC number of the label, and the LED light on the label will flash, allowing users to identify the managed items more intuitively and making inventory checks, goods search or other processing procedures easier.
- Overview
- Applications
- Specifications
- Electronic tag structure
- Performance curve test graph
- Packaging information
- Recommended Products
Overview
Meanwhile, the TAG-915-Sensor-2110011 adopts a special structural design, featuring high LED light brightness, compact size, and a fully flat label surface. It can be printed, meeting the requirements of visualization systems and batch initialization of RFID information. It is flexible and convenient to apply.
Applications
The sound and light tag is based on the traditional RFID tag and adds a light reminder function, which enables quick location and finding of designated items (LED) in item management in warehouses, freight stations, archives, etc. It can be widely applied:
Warehouse management
Asset positioning
Library and archive management
Goods picking
Specifications
| Functional parameters | |
| Model | TAG-915-Sensor-210011 |
| Frequency range | 860-960MHz |
| Chip capacity | EPC 160bits , user 1312bits, TID 192bits |
| Chip | KX2005XB-L/T |
| Read-write protocol | EPC Class1 Gen2; ISO18000-6C |
| Function | 读/写(Read/Write ) |
| Reading distance | More than 1m (The reading distance varies depending on different devices) |
| Physical parameters | |
| Antenna technology | Aluminum antenna |
| Installation method | Adhesive |
| Technology | Planar microstrip |
| Size | 100 * 12 * 0.2 mm |
| Release paper | White glassine release paper |
| LED light color | green |
| Printing, printing | Printable |
| The color of the bare signature | White, customizable |
| Environmental parameters | |
| Working temperature | -35℃~ +85℃ |
| Storage temperature | 0℃ ~ +25℃ |

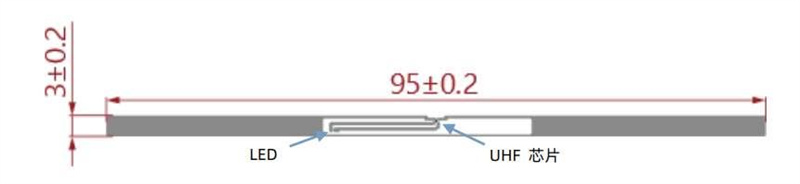

Electronic tag structure

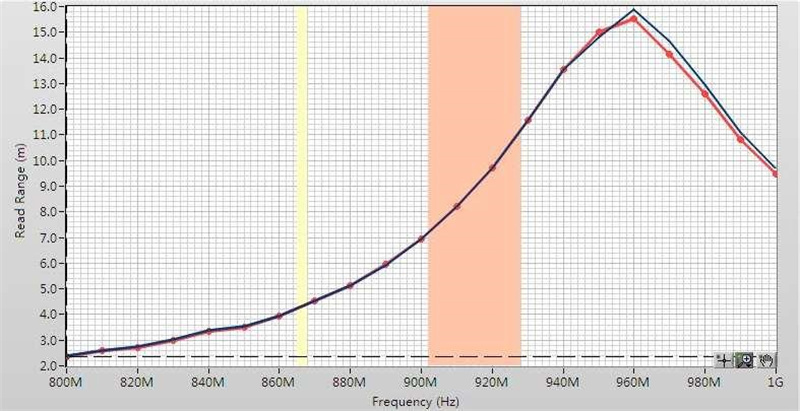

Performance curve test graph

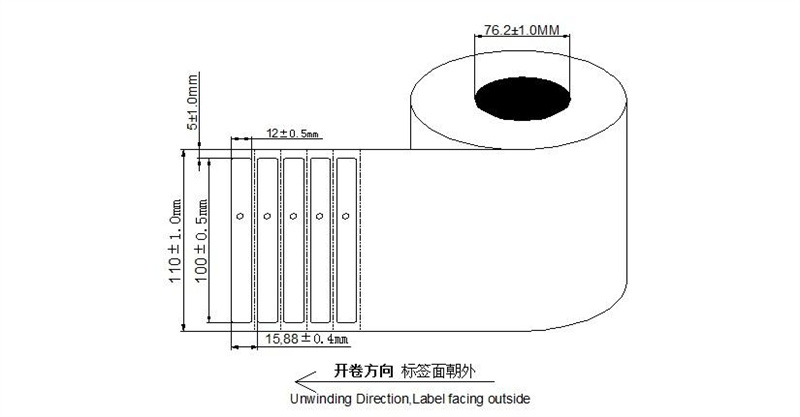

Packaging information
The supply quantity of coil material is 1,000 to 3,000 pieces per roll.
