FU-YRF32-T 32-Channel RFID Reader
Excellent multi-tag recognition rate
High reception sensitivity
High port isolation
Industrial-grade design with high reliability
- Overview
- Specifications
- Product appearance and size
- Precautions and Environmental Instructions
- Warranty Service Terms
- Recommended Products
Overview
Applications
Library management
Retail
Access control
Archive management
Introduction
FU-YRF32-T is an industrial-grade, 32-channel, ultra-high-frequency fixed RFID reader. This reader supports the ISO18000-6C (EPC C1G2) protocol and offers ultra-high sensitivity, excellent multi-tag anti-collision algorithms, dense read/write mode support, and low power consumption. It is widely used in demanding mid-to-high-end applications that require fast reading speed, simultaneous multi-tag reading, dense read/write environments, and complex network communication. Additionally, the product provides standard API user interfaces to facilitate easy integration into various projects.
Specifications
Electrical Characteristics
| Data/Control Interface | Physical Connection | Provides RS-232, TCP/IP network interface |
| Communication signal | Baud rate 9600-230400bps | |
| GPIO Interface | 4 relay outputs, 4 inputs; 1 5V 1A power output, 1 12V 1A power output | |
| API support | C#(.NET), C++(VC), JAVA | |
| Power | DC power supply | +12V ~ +42V 3A |
| AC power supply | AC 90~260V | |
| Maximum operating current | 1.5A(33dBm) | |
| Standby current | 0.2A | |
| RF Function | Supported bands | FCC 902-928 MHzCN 920-925MHzETEI 865.7-867.5MHz |
| Support protocol standards | EPC global C1Gen 2 (ISO 18000-6C) | |
| Antenna connection | 32 SMA interfaces | |
| Receiving sensitivity | -78dBm | |
| Output power | 9-33dBm, step 1dB adjustable | |
| Port isolation | -50dB | |
| Maximum Tag Read Rate | 400 sheets/second | |
| Read label distance | 0~12m(8dBi linear polarization antenna) | |
| Write label distance | 0~6m(8dBi linear polarization antenna) |
Mechanical Characteristics and Operating Environment
| Condition | Parameters | Description |
| Shape and structure | Dimensions | 300mm*130mm*39mm(L*W*H) |
| Net weight | 860g | |
| Protection level | IP53 | |
| Use of the environment | Working temperature | -20 ℃ ~ +70 ℃ |
| Storage temperature | -40 ℃ ~ +85 ℃ | |
| Working humidity | 5% ~ 95% RH, no condensation |
Environmental Adaptability Tests
| Serial Number | Test items and grades | Test basis | Compliance with performance criteria |
| 1 | Radiated RF Electromagnetic Field Immunity Test (Level 3) | GB/T17626.3-2006 | Class A |
| 2 | Surge impact immunity test (level 3) | GB/T17626.5-2008 | Class A |
| 3 | Electrical fast transient burst immunity test (level 3) | GB/T17626.4-2008 | Class A |
| 4 | Power frequency magnetic field immunity test (level 3) | GB/T17626.8-2006 | Class A |
| 5 | Pulsed magnetic field immunity test (level 3) | GB/T17626.9-1998 | Class A |
| 6 | Electrostatic discharge immunity test (level 3) | GB/T17626.2-2006 | Class A |
| 7 | RF Field Induced Conducted Disturbance Immunity Test (Level 3) | GB/T17626.6-2008 | Class A |
| 8 | Voltage Dags, Short Interruptions and Voltage Variations Immunity Test (Level 3) | GB/T17626.11-2006 | Class A |
Accessories List
| Name | Quantity |
| FU-YRF32-T 32-Channel RFID Reader | 1 |
Note: Items that are not included with the device or additional selectable items are not recorded in the list. Please confirm details with sales.

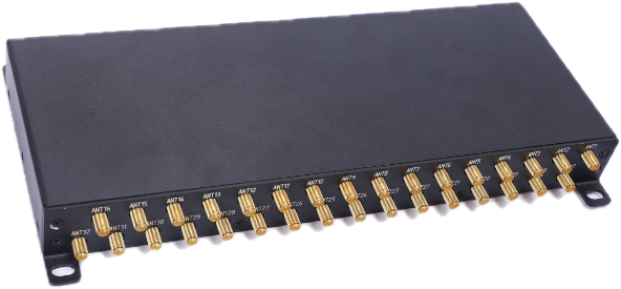

Product appearance and size
FU-YRF32-T : 300mm*130mm*39mm(L*W*H)
Precautions and Environmental Instructions
Precautions
For safe and effective use, please read the following information before using this product:
● Do not disassemble the casing without professional authorization to prevent damage.
Warranty Service Terms
1.Warranty Service Scope
● Warranty Products:
To comply with the relevant laws and administrative regulations of the People's Republic of China, this warranty service is a limited warranty applicable only to products sold by Shenzhen Fuwit Technology Co., Ltd. (hereinafter referred to as "Fuwit") or its authorized distributors.
● Warranty period:
From the date of shipment, products that experience malfunctions under normal use within the specified period are eligible for warranty service. Customers requesting warranty services must provide a purchase contract, delivery receipt, the faulty device's SN number, and a description of the issue to prove that the product qualifies for a one-year warranty from the date of shipment.
● Exclusions from Warranty:
a. Failure to provide valid purchase contracts, delivery receipts, or proof of purchase (including altered purchase contracts or receipts, or discrepancies between documents and actual products).
b. Surface damages such as scratches, dents, or depressions.
c. Consumable items like batteries, except in cases where defects result from material or manufacturing issues.
d. Damage caused by accidents, misuse, improper handling, fire, natural disasters, or improper maintenance (including external force damage).
e. Repairs, modifications, or alterations conducted by unauthorized personnel, which may lead to permanent product damage.
2.Description
● This warranty policy grants you specific legal rights, which may vary by country. Other statutory rights under different national laws are not excluded, limited, or suspended by this policy. Some of the following limitations may not apply to you.
● To the extent permitted by law, this warranty policy is exclusive and supersedes all other express, implied, or statutory warranties, including but not limited to warranties of merchantability, fitness for a particular purpose, or any other condition under statutory laws. Furthermore, Fuwit shall not be liable for any incidental, special, indirect, or consequential damages arising from the use, misuse, inability to use, or defects of the product.
● Fuwit reserves the right to deny warranty claims for products or services obtained and/or used in violation of any national laws.
● Products purchased through auction websites or from non-authorized distributors of Fuwit are not covered under this warranty service.
● If the product is determined to fall outside the warranty scope after inspection, Fuwit will proceed with repairs only after obtaining customer approval and charging a quoted fee. Repaired components are covered by a 90-day warranty for the same functionality failure.
●Fuwit reserves the right to repair or replace the product or software. Repairs will be performed using original manufacturer parts following standard procedures. If the product cannot be repaired, it may be replaced with a module or an entire unit. If repair parts are out of stock or the product has been discontinued, Fuwit will provide an equivalent replacement product based on depreciation value during the warranty period or offer an upgrade option with an additional charge upon customer agreement. Products outside the warranty period will not be eligible for repair services. Any replaced defective parts will become the property of Fuwit.
3.Precautions
● Before requesting warranty service, customers should back up all personal and important data and provide only the faulty product for repair. During the repair process, all data stored in the device may be lost and cannot be recovered. Fuwit does not provide data backup services and does not guarantee that system settings will remain unchanged before and after repair.
