TAG-915M13 UHF RFID shelf pallet tags
Product features: This product is equipped with an ABS casing, featuring a high protection level and long-distance reading.
Applicable occasions: Vehicle management, outdoor power equipment inspection, elevator inspection, tracking and management of various large-scale equipment.
Product advantages: Long reading distance and high cost performance.
- Overview
- Specifications
- Dimensional parameters
- Recommended Products
Overview
This label is equipped with an LED display light. When the label needs to be located, simply select the EPC number of the label, and the LED light on the label will flash, allowing users to find the managed items more quickly and intuitively, achieving the quick operation of "goods finding people". Meanwhile, the battery-free luminous tags do not require battery replacement for long-term use, fully meeting the cost advantage of users' one-time investment for long-term use.
The installation method of RFID light-emitting electronic tags is flexible. When combined with reader devices, the identification operation is simple and convenient, making inventory checking, quick goods search and other asset management much easier.
Specifications
| Model | TAG-915- M13 |
| Frequency range | 902-928MHZ |
| Chip capacity | EPC 96bit; User memory 512bit; TID: 32 bits, Unique TID: 64 bits; |
| Reading distance | password: 32-bit Access password 32-bit access password 32-bit destroy password 32-bit Kill |
| Chip | 3-7 meters (Fixed reader, depending on the reader's performance and antenna gain size) |
| Read-write protocol | Alien higg3 |
| Chip lifespan | EPC Class1 Gen2; ISO18000-6C |
| Anti-static (ESD) performance of the chip | It can be erased and written 100,000 times |
| Function | 2000V |
| Antenna substrate | Read/Write |
| Working temperature | PET |
| Storage temperature | -40 degrees to 100 degrees |
| Product weight | -40 degrees to 100 degrees |
| Product materials | 25 grams |
| IP rating | Reinforced ABS material |
| Size | IP68 |
| Installation method | 135 * 22 * 12.5 MM |
| Personalized customization | Rivet installation, adhesive backing installation. |

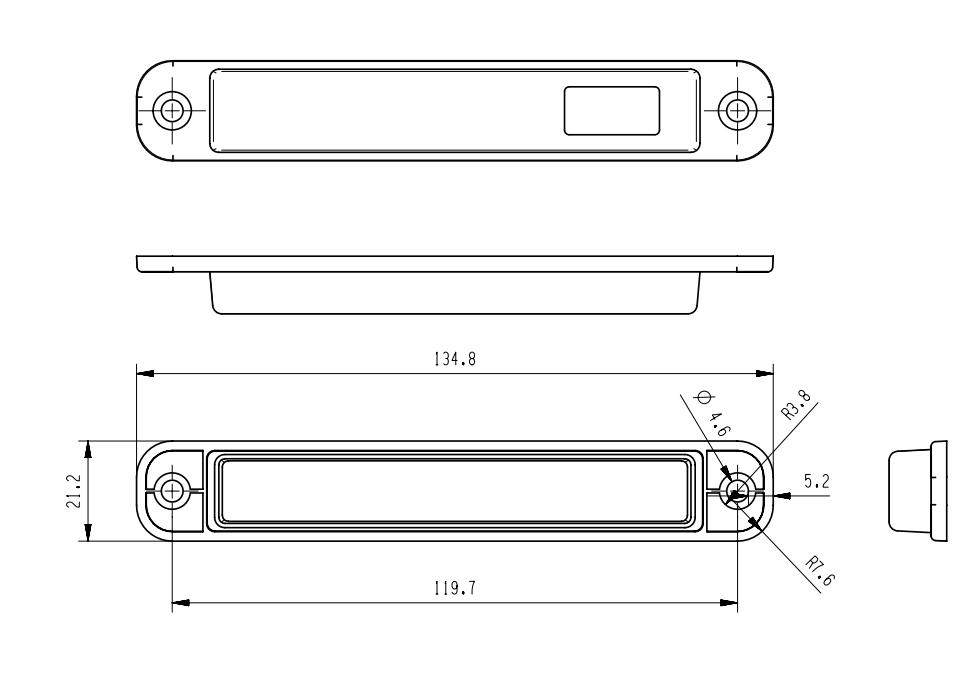

Dimensional parameters
