Linux 4 Port UHF RFID Reader
UHF RFID Protocol
ISO 18000-6C/Gen2
National standard/national military standard (customized)
UHF RFID Band
FCC902-928MHz(Americas)
ETSI865.6-867.6MHz(EU)
KCC-917-920.8MHz(Korea)
TRAI865-867 MHz (MCIT;India)
ACMA920-926(ACSTRALIA)
SRRC-MII (P.R.China) 920.1- 924.9 MHZ
- Overview
- Specifications
- Product Structure and Interface
- List of product accessories
- Warranty Service Terms
- Recommended Products
Overview
Characteristic
Communication mode and peripheral interface
Support DB9 interface RS232 serial communication
Support M12-5pin power supply and RS232 integrated interface
Support Bluetooth 5.0 communication
Power supply and energy consumption
DC12v to 36v operating voltage range
Maximum power consumption 12W
Environmental conditions
Working temperature/humidity:-20 ℃ to +70 ℃
Storage temperature/humidity:
Protection grade: IP67 (anti-collision and anti-drop)
Application
Universal UHF RFID Tag Reader Writer
Universal UHF RFID Data Logger
Intelligent management filing cabinet/library cabinet
Smart Asset Management Statistics Workbench
Access Control Statistics Management System
Health/Medical/Nursing Applications
Industrial Automation
warehousing logistics
Foreword
FU-VEGA VEGA reader is a product based on advanced wireless identification technology UHF RFID(Ultra High Frequency Radio Frequency Identification). The equipment is an independent single-control equipment, which can be deployed as UHF RFID reader/writer with standard RS232 serial wired interface or wireless Bluetooth 5.0 interface, flat volume, IP67 protection and thick protective enclosure, and is suitable for application scenarios in various IOT fields such as automatic production lines, forklift identification, industrial tunnels/channels, etc. For example, logistics management, inventory control, supply chain management, asset tracking and other fields.
Specifications
Electrical characteristics of equipment
| Condition | Parameters | Description | Remarks |
| Communication mode andExtended Interface | Wired Interface | DB9-RS232,M12-5pin(DC + RS232) in one | |
| Wireless Interface | Bluetooth 5.0 | ||
| Power | External power supply | DC12-24v | |
| Static power consumption | 0.36W | ||
| Working power consumption | MAX 12W | ||
| RF Function | Operating frequency | 806-960MHZ (with regional frequency band setting) | |
| Support protocol standards | ISO 18000-6C/Gen2 | ||
| Output power | Max 30 dBm | ||
| Output power flatness | ± 1dBm | ||
| Label processing speed | ≤450 Tag/S | ||
| Read Distance | ≥ 9 m using 9dBi circularly polarized antenna | In special cases, depending on the label performance | |
| Secondary development support | Support language | C, C ##, Java | |
| development system | Windows | ||
| Bluetooth function | Bluetooth Specifications | Bluetooth dual-mode 5.0 | |
| Transmit power | Max 6dBm | ||
| Sensitivity | [email protected]%BER | ||
| frequency band | 2.402GHz-2.483Ghz ISM band | ||
| Modulation mode | GFSK, π/4-DQSK, 8-DPSK | ||
| baseband crystal oscillator | 24MHZ | ||
| RF input impedance | 50Ω | ||
| Agreement | SPP |
Mechanical characteristics and use environment
| Condition | Parameters | Description | Remarks |
| Shape and structure | Dimensions | 217.5mm*120mm*38mm | |
| Net weight | 0.9Kg | Gross weight of single equipment | |
| Color | Black | ||
| Shell material | Aluminum alloy | ||
| Assembling and fixing | Installation method | Screw Fixing | |
| Use of the environment | Working temperature | -20 ℃ ~ +70 ℃ | |
| Storage temperature | -40 ℃ ~ +85 ℃ | ||
| Working humidity | 5% to 95% non-condensing |
Product Structure and Interface
Product Size

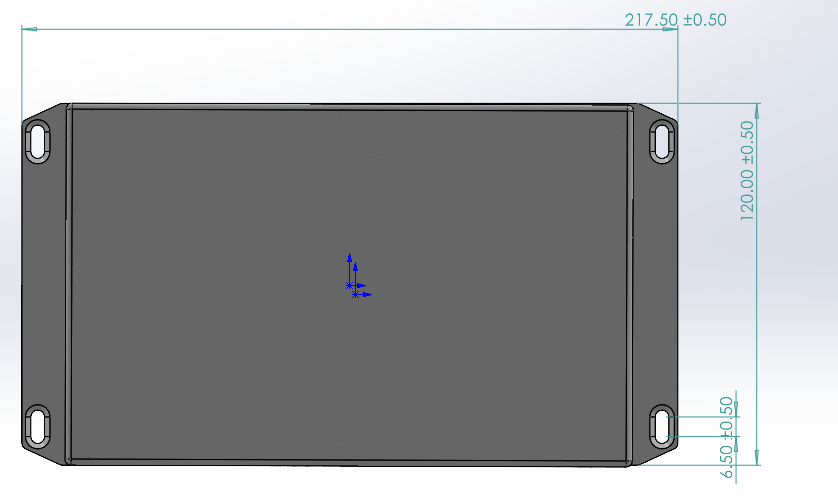

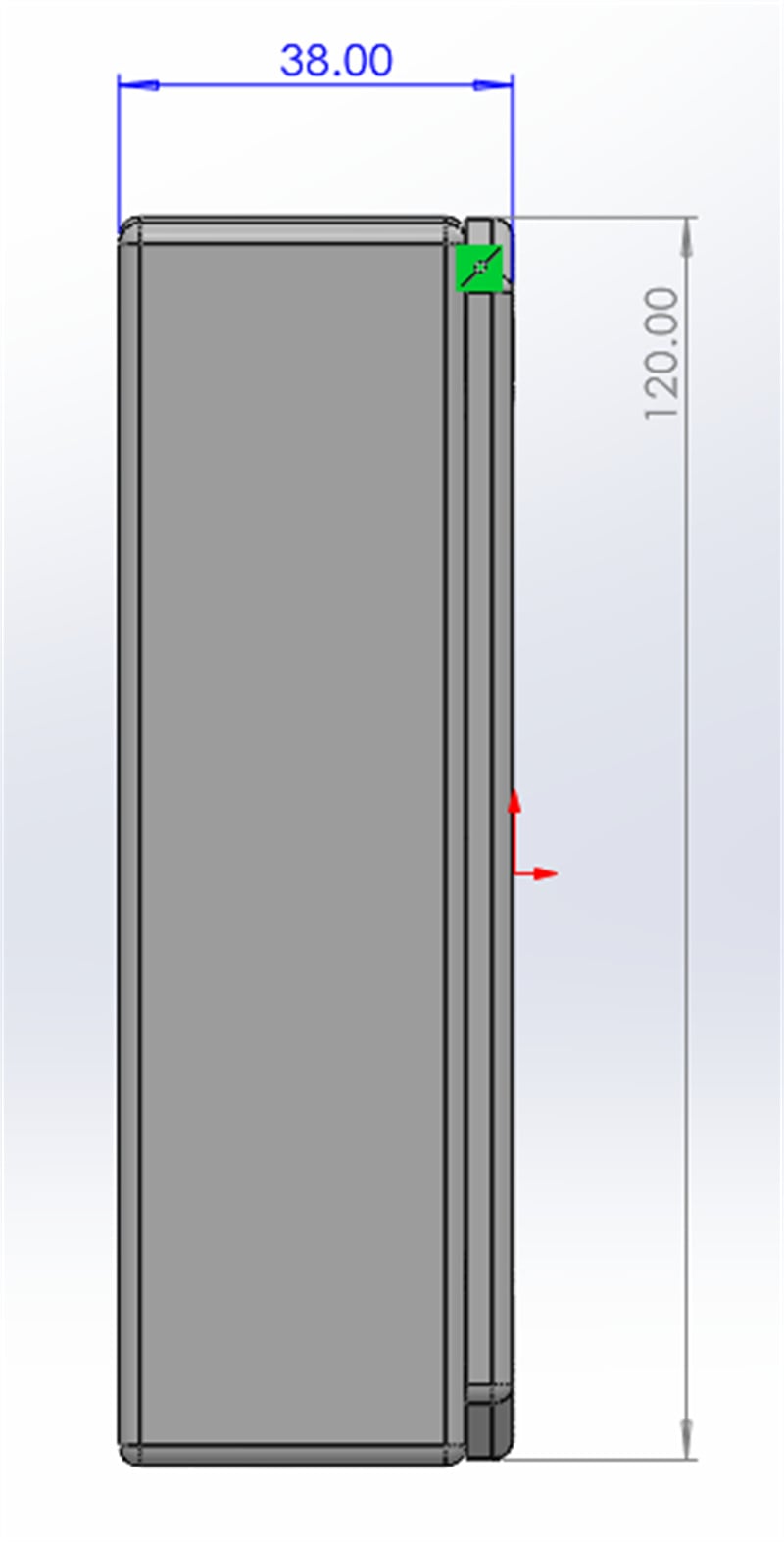

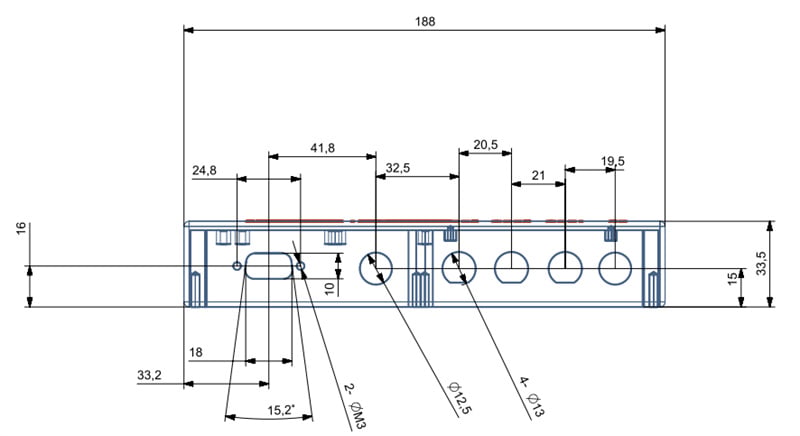

Product size chart：
217.5mm*120mm*38mm
3.2 Interface Definition:
Interface definition：
Serial interface :DB9 female, RS232 communication
Power interface :M12-5pin aviation male, DC + RS232 integrated interface (DC range 12-24v)

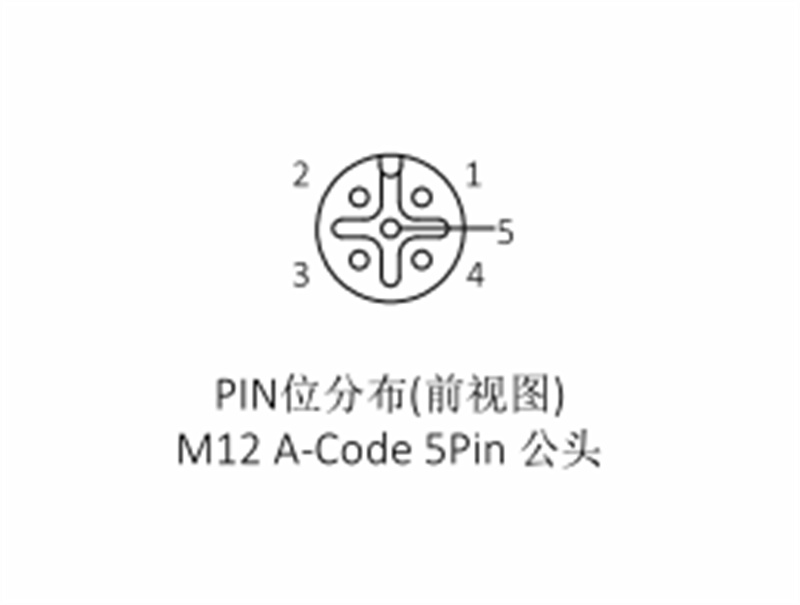

| Wiring table | ||
| M12-5 core male | Definition | Remarks |
| 1 | GND | |
| 2 | Power-DC+ | Isolated power supply, not at the same potential as GND |
| 3 | Power-DC- | |
| 4 | RS232-RX | |
| 5 | RS232-TX | |

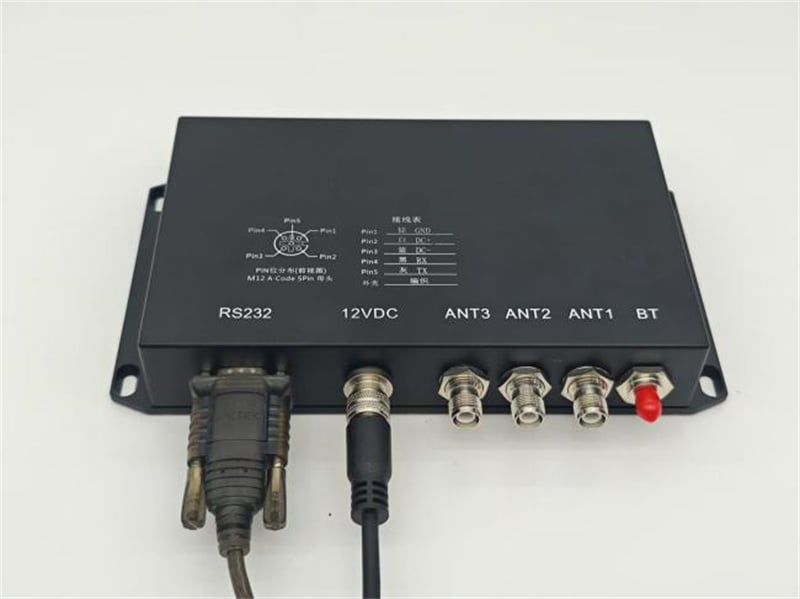

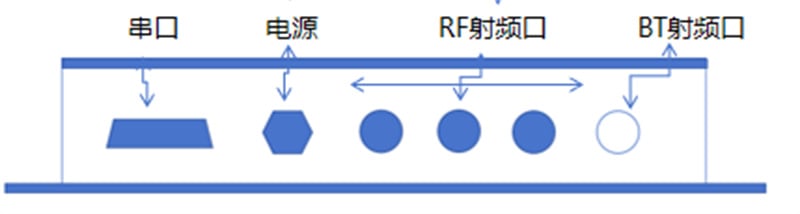

RF port :TNC male (external thread internal needle) * 3,RF antenna interface
BT RF port :SMA female head (external thread inner hole), Bluetooth antenna interface
3.3 Typical Interface Connections and Applications

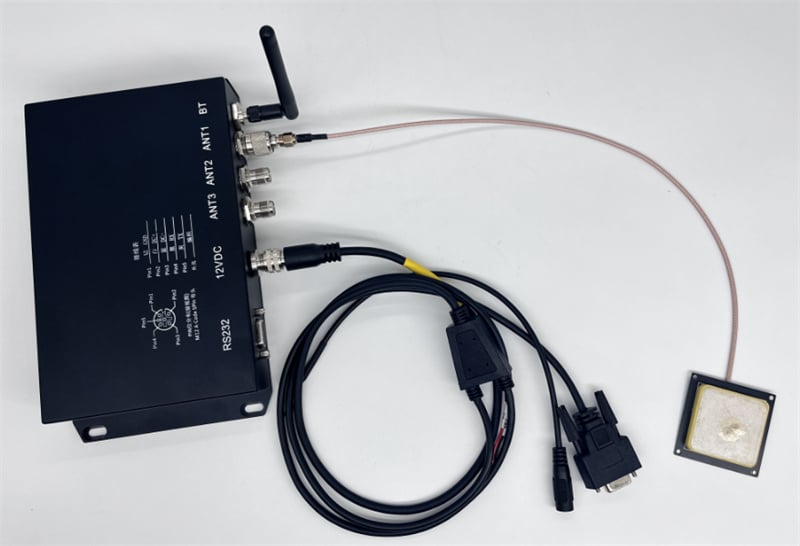

3.3.1 Wired connection:
|
RS232 direct connection |

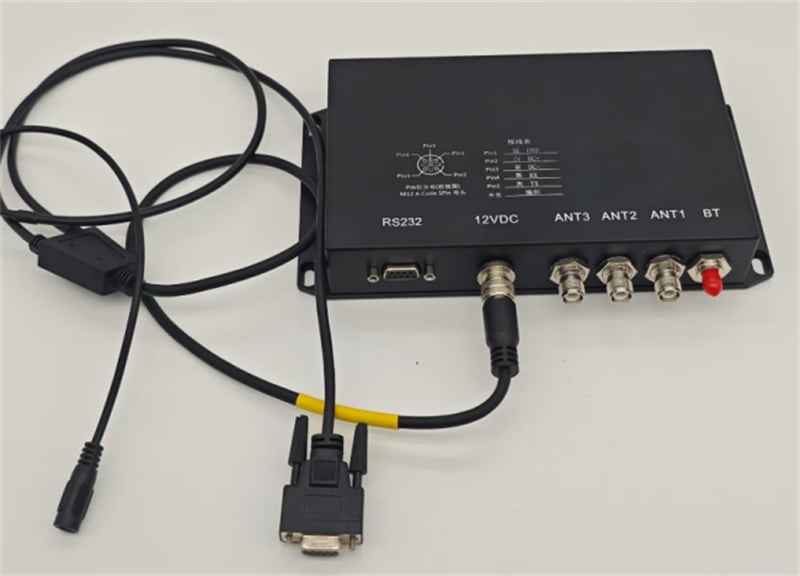

DC + RS232 integrated connection |
|
|
|
RS232 direct connection: suitable for short distance connection, or the whole machine channel equipment.
DC RS232 integrated connection: suitable for long-distance connection, using M12-5pin-shielded extension cable, supporting a maximum transmission distance of 10 meters. Suitable for use in production line, forklift, warehouse integrated equipment.

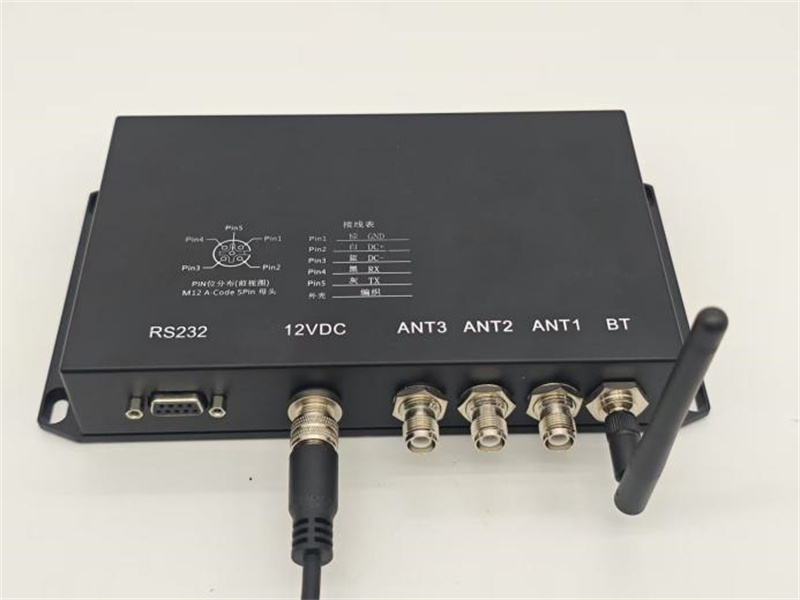

3.3.2 Wireless Bluetooth Connection:
Wireless connection range:
Stable high-speed communication, within a radius of 2.6 meters around the equipment;
Stable low-speed connection, within a radius of 5 meters around the equipment;
Bluetooth maximum playback range: 9 meters
Wireless Bluetooth connection, only need to power the device, within the range of the device can be through the computer, tablet wireless connection.
Suitable for areas with cumbersome wiring or inappropriate wired communication, such as mobile forklifts and temporary inspection areas.
List of product accessories
Accessories List
| Name | Quantity |
| Device Host | 1 |
| RS232 to USB data cable | 1 |
| DC12v power adapter | 1 |
| Power Cord | 1 |
Note: Items that do not belong to the equipment accompanying or subsequent optional items will not be recorded in the list. Please confirm with the sales for specific information.
Warranty Service Terms
1.Warranty Service Scope
● Warranty Products:
To comply with the relevant laws and administrative regulations of the People's Republic of China, this warranty service is a limited warranty applicable only to products sold by Shenzhen Fuwit Technology Co., Ltd. (hereinafter referred to as "Fuwit") or its authorized distributors.
● Warranty period:
From the date of shipment, products that experience malfunctions under normal use within the specified period are eligible for warranty service. Customers requesting warranty services must provide a purchase contract, delivery receipt, the faulty device's SN number, and a description of the issue to prove that the product qualifies for a one-year warranty from the date of shipment.
● Exclusions from Warranty:
a. Failure to provide valid purchase contracts, delivery receipts, or proof of purchase (including altered purchase contracts or receipts, or discrepancies between documents and actual products).
b. Surface damages such as scratches, dents, or depressions.
c. Consumable items like batteries, except in cases where defects result from material or manufacturing issues.
d. Damage caused by accidents, misuse, improper handling, fire, natural disasters, or improper maintenance (including external force damage).
e. Repairs, modifications, or alterations conducted by unauthorized personnel, which may lead to permanent product damage.
2.Description
● This warranty policy grants you specific legal rights, which may vary by country. Other statutory rights under different national laws are not excluded, limited, or suspended by this policy. Some of the following limitations may not apply to you.
● To the extent permitted by law, this warranty policy is exclusive and supersedes all other express, implied, or statutory warranties, including but not limited to warranties of merchantability, fitness for a particular purpose, or any other condition under statutory laws. Furthermore, Fuwit shall not be liable for any incidental, special, indirect, or consequential damages arising from the use, misuse, inability to use, or defects of the product.
● Fuwit reserves the right to deny warranty claims for products or services obtained and/or used in violation of any national laws.
● Products purchased through auction websites or from non-authorized distributors of Fuwit are not covered under this warranty service.
● If the product is determined to fall outside the warranty scope after inspection, Fuwit will proceed with repairs only after obtaining customer approval and charging a quoted fee. Repaired components are covered by a 90-day warranty for the same functionality failure.
●Fuwit reserves the right to repair or replace the product or software. Repairs will be performed using original manufacturer parts following standard procedures. If the product cannot be repaired, it may be replaced with a module or an entire unit. If repair parts are out of stock or the product has been discontinued, Fuwit will provide an equivalent replacement product based on depreciation value during the warranty period or offer an upgrade option with an additional charge upon customer agreement. Products outside the warranty period will not be eligible for repair services. Any replaced defective parts will become the property of Fuwit.
3.Precautions
● Before requesting warranty service, customers should back up all personal and important data and provide only the faulty product for repair. During the repair process, all data stored in the device may be lost and cannot be recovered. Fuwit does not provide data backup services and does not guarantee that system settings will remain unchanged before and after repair.
