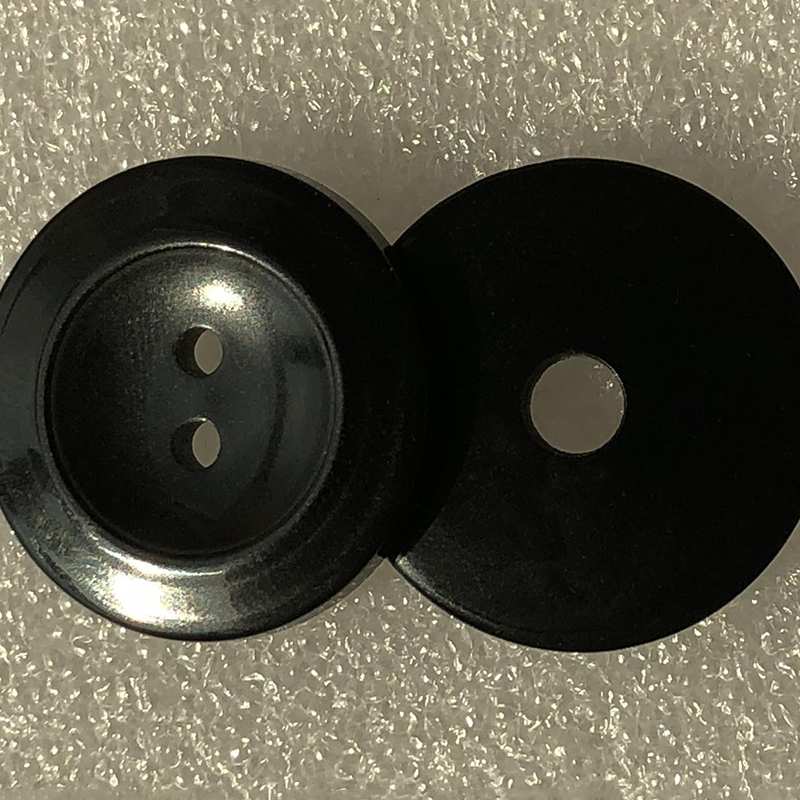

TAG-915-2503 UHF RFID Button Laundry Tag
The TAG-915-2503 electronic TAG is encapsulated in unsaturated polyester and equipped with an RFID chip. It is tailor-made for special working environments such as the fabric and sweater dyeing and bleaching industry, powerful washing, chemical raw material industry, and medical care. It is a green and environmentally friendly label that is wear-resistant, has high hardness and is resistant to acid and alkali.
Brand:
ThingMagic(JADAK)
Spu:
M7E-TERA
- Overview
- Recommended Products
Overview
Specification parameters
| Model | TAG-915-2503 |
| Frequency range | 920-925MHZ |
| Chip capacity | EPC 96bit; User memory 128bit; TID 64bit |
| Reading distance | 1.2-1.5 meters (ThingMagic micro handheld device) |
| Chip | Impinj Monza MR6P |
| Read-write protocol | EPC Class1 Gen2; ISO18000-6C |
| Chip lifespan | It can be erased and written 100,000 times |
| Function | Read/Write |
| Working temperature | -20 degrees to 60 degrees |
| Storage temperature | -20 degrees to 60 degrees |
| Product weight | 2.5 grams |
| Product materials | Unsaturated polyester |
| IP rating | IPX8 |
| Size | Round, size 25*3mm |
| Installation method | Rivet installation, adhesive backing installation. |
| Personalized customization | The middle hole can be customized (both appearance and size can be customized) |
