Overview
Specification parameters
| Model | TAG-915- 8005 |
| Frequency range | (US standard) 902-928 MHZ, (European Standard) 865-868 MHZ |
| Chip capacity | EPC 128bits, user area 32bits, TID48bits |
| Reading distance | Non-resistant to metal 3-6M, metal surface 50-1m (reading distance varies depending on different equipment scenarios) |
| Chip | IMPINJ R6-P can customize chips |
| Read-write Protocol | ISO18000-6C |
| Chip lifespan | It can be erased and written 100,000 times |
| Function | Read/Write |
| Waterproof grade | IP68 |
| Working temperature | -40℃ to +100℃ (short-term high temperature 120 ℃) |
| Storage temperature | -20℃ to +80℃ |
| Material properties | Resistant to alternating high and low temperatures, wear-resistant, anti-aging, and capable of withstanding high-weight lamination at room temperature |
| Gravity under pressure | 3 tons |
| Product weight | 25 grams |
| Product materials | Modified polyurethane resin |
| Color | Green/Yellow |
| Size | Ø T: 80 mm * 5 mm |
| Installation method | Screw locking, adhesive backing, riveting |

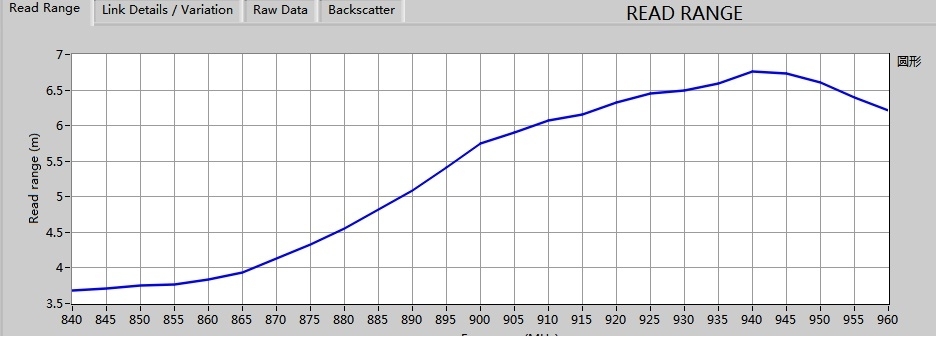

Performance curve test graph
