TGA-915-503 UHF RFID Acoustic-Optical Tag
The TAG-915-503 electronic TAG is a high-frequency electronic tag with sound and light alerts. It adds sound and light alert functions on the basis of traditional high-frequency tags, enabling quick item location in item management (the items being found have light and sound alerts) It is applicable to application fields such as warehouse inventory item positioning, shelf positioning, clothing and hat search positioning, book search positioning, and archive search positioning.
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Installation hole location diagram
- Recommended Products
Overview
| Model | TAG-915-503 |
| Frequency range | 840-960MHz |
| Chip capacity | TID:112-bit, EPC:192-bit |
| Chip | NMV2D CAB0/CAB1 |
| Read-write protocol | EPC Gen2v2,ISO/IEC 29167-10 |
| Product features | Light/sound reminder |
| Reading and writing sensitivity | ≥10M (related to the actual environment) |
| Data preservation | Ten years |
| Programming times | 100,000 times |
| Battery life | Capacity 1000mA, normal use for 3 years (related to the frequent operation and reading of tags) |
| Label weight | 36 grams |
| Label size | 136 x37x15. 6 mm |
| Working temperature | -25℃ to 75℃ |
| Storage temperature | 0℃ to 25℃ |
| Operating humidity | 10% to 95% |
| Installation method | It can be glued on the back, threaded with screws, or hung in a bag. |

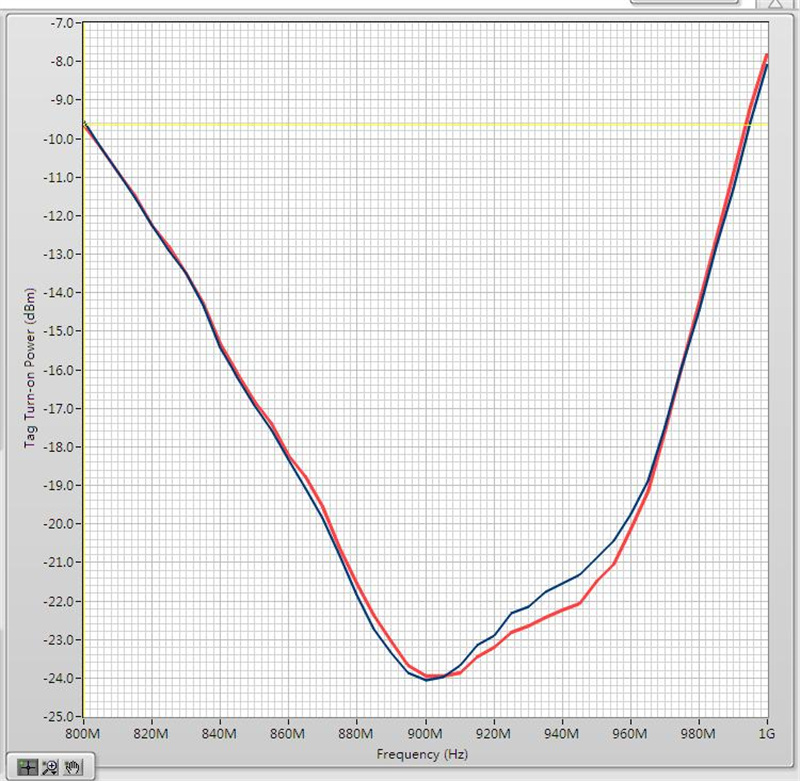

Read the performance test curve graph in the microwave anechoic chamber.

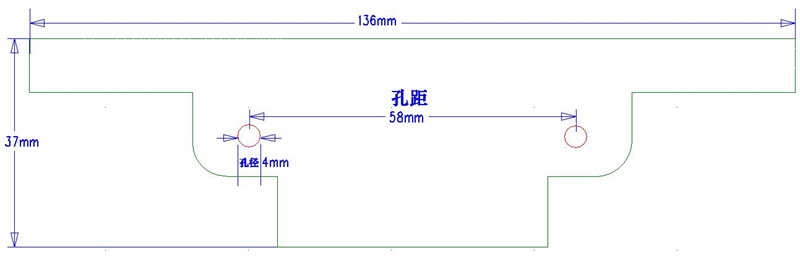

Installation hole location diagram
