TAG-915-Sensor-13634 UHF RFID Acousto-Optical Tag
The audio-visual electronic tag is a passive RFID audio-visual electronic tag based on the 860MHz to 960MHz frequency band. It adds sound and light prompt functions to the traditional ultra-high frequency tags, enabling quick item location in item management (the items being found have light and sound prompts). It is suitable for application fields such as warehouse inventory item location, clothing and hat search location, book search location, and archive search location.
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Specification parameters
- Size
- Recommended Products
Overview
Product features
Compact and lightweight, easy to install.
Long service life.
It has a long recognition distance and high sensitivity.
Specification parameters
| Functional parameters | |
| Model | TAG-915-Sensor-13634 |
| Frequency range | 860-960MHz |
| Chip capacity | EPC 128bits , user 2176bits, TID 48bits |
| Reading distance | 5 to 10 meters (The reading distance may vary depending on the device scenario) |
| Chip | IMPINJ Monza X-2K dura |
| Read-write protocol | EPC Class1 Gen2; ISO18000-6C |
| Working life | Not replacing the battery for more than three years; |
| Function | Read/Write |
| Physical parameters | |
| Product weight | 32.3 grams |
| Electrical appliance characteristics | One built-in replaceable button-type CR2477 battery with a working voltage of 3V; |
| Product materials | ABS material, welded by ultrasonic waves, anti-vibration. |
| Color | LED indicator lights can be equipped with colors (yellow, red, blue, green, purple, orange) according to customer requirements. |
| Size | White, seven colors |
| Environmental parameters | |
| Working temperature | -20℃~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |

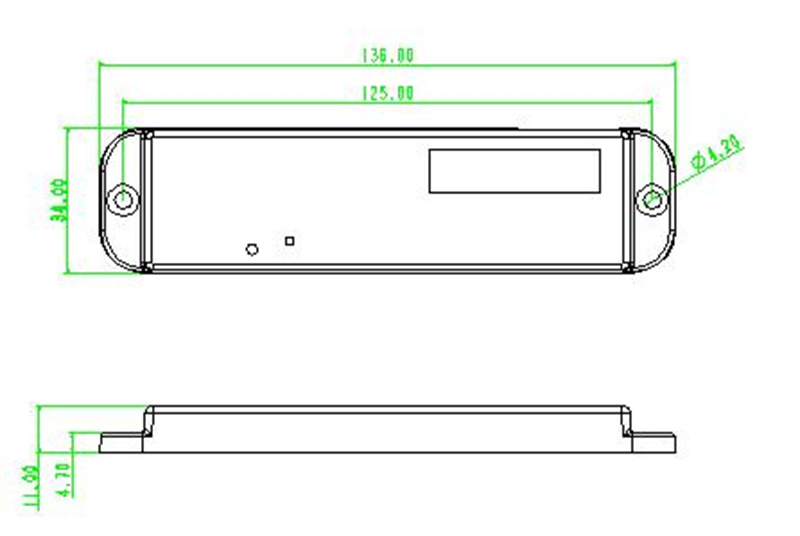

Size
