TAG-915-8520 UHF RFID Cement Buried Tag
Tag-915-8520 is a special TAG specially developed for application in cement and concrete products. The tag is made of modified polyurethane resin material, featuring excellent resistance to acid and alkali corrosion, resistance to high and low temperature changes, and anti-aging properties. It also has a high protection level of IP68, enabling it to be pre-embedded in cement and concrete products. Meanwhile, the optimized antenna design ensures that even after being pre-embedded in cement products, it still has a maximum reading distance of up to 2.5 meters. TAG-915-8520 can be well applied in various construction fields such as cement components, Bridges and bridge piers
- Overview
- Applications
- Recommended Products
Overview
Specification parameters
| Functional parameters | |
| Model | TAG-915-8520 |
| Frequency range | (US standard) 902-928 MHZ, (European Standard) 865-868 MHZ |
| Chip capacity | EPC 128 (96) bits, user 32 (64) bits, TID 48bits |
| Chip | IMPINJ MR6-P can customize chips |
| Read-write protocol | ISO18000-6C |
| Chip lifespan | It can be erased and written 100,000 times |
| Function | Read/Write |
| Reading distance | 0.6- 1.5m (embedded 8-10CM) 1.5-2.5M (embedded 1-2CM) (Reading distance varies depending on different devices) |
| Physical parameters | |
| Product weight | 6g |
| Product materials | Modified polyurethane resin |
| Color | Green/Yellow |
| Size | L:85mm*W:20*T:5mm |
| Environmental parameters | |
| Working temperature | -40℃~ +100℃ |
| Storage temperature | -20℃ ~ +80℃ |
| Material properties | It has excellent resistance to acid and alkali corrosion, can withstand high and low temperature changes, and is anti-aging |
| Waterproof grade | IP68 |

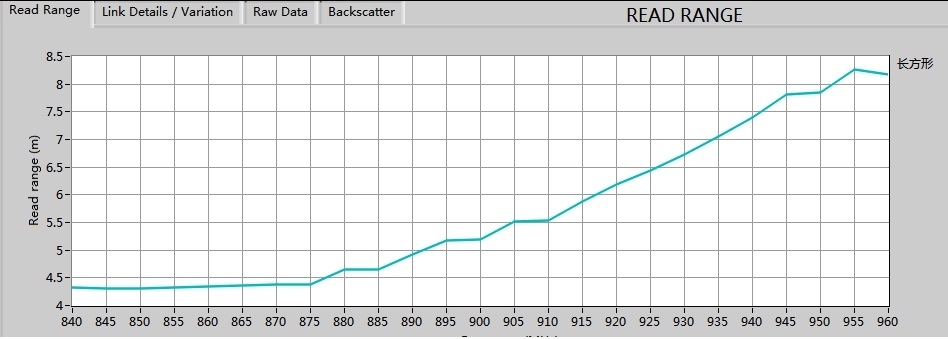

Performance curve test graph
Applications
Various cement components, Bridges, bridge piers and other construction fields.
