Desktop UHF RFID all-in-one machine FU-M6-USB-N
FU-M6-USB-N is a desktop RFID all-in-one machine with excellent Thingamgic M6e-NANO modules as the core. FU-M6-USB-N all-in-one machine is light and stylish in appearance, easy to install without affecting the appearance, and suitable for binding operations such as reading and writing RFID tags. At the same time, the equipment has indicator light, prompt tone and switch button, which is very humanized and convenient for users to operate quickly.
- Overview
- Specifications
- Device appearance structure
- Recommended Products
Overview
Product Introduction
The FU-M6-USB-N UHF RFID desktop workbench simulates the integrated intelligent desktop UHF RFID thin and light all-in-one machine with the M6e-NANO of the Thing Amgic series as the core. This device has an attractive appearance and is easy to use without affecting its aesthetic and fashion. It is suitable for PC connection operations on workstations in electronic management projects. It can perform initialization operations such as reading, writing, and binding of RFID data for some anti-metal tags and irregular tags that cannot be initialized with data. Support for fast and efficient, demonstration recording and reading technologies. This device is equipped with light and sound functions as well as switch functions. It is very user-friendly and easy for users to quickly get started with operation. The prompt is widely applicable to intelligent brain logs, archive informatization, and asset management.
Product features
1. Supports FCC902-928 MHz or other designated specifications (ETSI(EU) 865.6-867.6 MHZ or MIC(Korea)910-914 MHZ or SRRC-MII(P.R.China) 920-925 MHZ);
2. Excellent compatibility of tag chips, supporting Alien H3, Impinj M series, NXP G2x* & G2i* series, ID Cool Log tag chips;
3. Support for ThingMagic Mercury API embedded operating system, provided. The SDKS of NET and Java can easily customize interfaces, thereby enabling the necessary control over readers.
4. This device is equipped with indicator lights, prompt sounds, and switch buttons, which is very user-friendly and enables users to quickly get started with the operation.
FU-M6-USB-N UHF RFID protocol that supports 18000-6C
FU-M6-USB-N support FCC902-928Mhz or other specified Specifications (ETSI(EU) 865.6-867.6MHz or MIC(Korea)910-914MHz or SRRC-MII(P.R.China) 920-925MHz).
FU-M6-USB-N gives full play to the advantages of Thingmagic RFID module algorithms. Its excellent tag chip compatibility supports Alien H3, Impinj M series, NXP G2x * & G2i * series, and ID Cool Log tag chips. The tag compatibility industry is unique.
FU-M6-USB-N fully supports ThingMagic Mercury API embedded operating systems, provides SDK for. NET and Java, and can easily customize interfaces to control the reader.
Important:
Without the guidance of the authorized personnel of the product manufacturer, do not disassemble and assemble the reader-writer equipment at will, otherwise electric shock and damage of equipment parts may occur.
Please do not press or impact the reader equipment to avoid damaging parts or making the equipment run abnormally.
Please make sure that the power supply you are using is well grounded, otherwise the accumulated static electricity will damage the equipment and the core RFID module.
Warning:
In the living environment, the product may cause radio interference. In this case, users need to take solutions to their interference. When not in use for a long time, please turn off the power of the equipmen.
Specifications
| Tag/Transfer Protocol | |
| Tag Protocol | EPC Class 1 Gen 2(ISO18000-6C |
| RF interface parameters | |
| Antenna connector | built-in 4.5dBic high performance antenna |
| RF output | 0 ~ 27dBm(0.01dBm adjustable) |
| Frequency Characteristics |
SRRC-MII 920.1– 924.9 MHz(P.R.China) FCC917.4-927.2MHz(NA); ETSI865.6-867.6MHz(EU); KCC917-923.5MHz(Korea); MIC916.8-923.4(Japan); TRAI865-867 MHz (India); ACMA920-926MHz(Australia); OPEN859-873MHz AND 915-930MHz Customizable channel plan. |
| Transmission Control Interface | |
| Connector | USB interface |
| Indicator lamp | Two colors |
| Physical property | |
| Size | 385 (length) * 270 (width) * 20 (height) mm |
| Weight | 1800g |
| Power supply | |
| DC power supply | DC 12V |
| DC supply current | 2A |
| ESD protection | |
| Power signal | ± 8kV contact discharge; ± 15kV air discharge |
| Antenna signal | ± 4kV contact discharge; ± 15kV air discharge |
| Performance | |
| Tag Reading rate | >200tag/s |
| Communication mode | |
| Communication Interface | USB interface |
| Environment features | |
| Operating temperature | -10℃ to + 50℃ |
| Storage Temperatur | - 20℃ to + 65℃ |
| Relative humidity | 5-95% non-condensing |
| Authentication and Security | |
| Related Certification | RFID module compliance: FCC 47 |
| Other | Rohs |

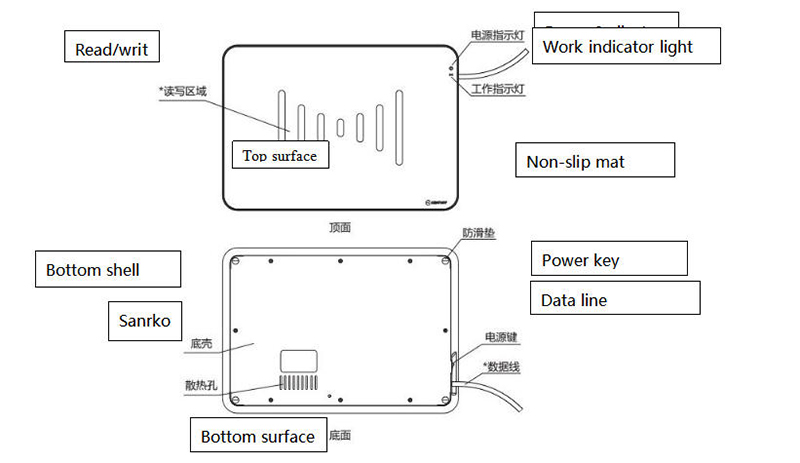

Device appearance structure
Read/write region definition:

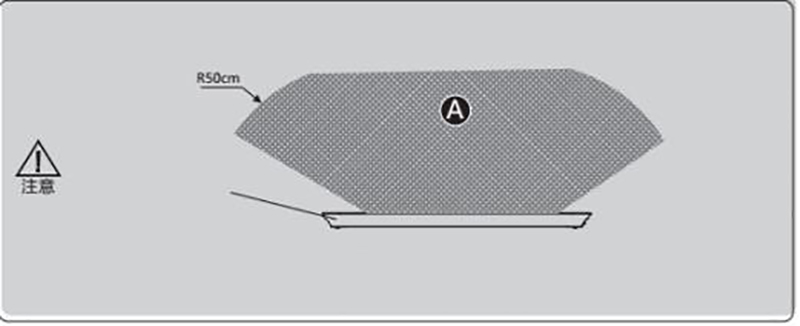

The reader-writer area is an RFID read coverage area. The basic range is shown in the following figure. Please place the label in this area to read when using it.
FU-M6-USB-N all-in-one machine
As shown in Figure A, with the reading mark of the all-in-one machine as the center, the radius above the all-in-one machine is 50cm and the dimension is 140 ° The space area is the valid identification area of the tag.
Indicator light definition:
| Indicator light type | Color | Indicator status | Description |
| Description | Red | Chang Liang | Turn on the current |
| Work indicator light | Blue | Often destroyed | Standby status of RFID system |
| 2Hz cycle flicker | Tag read successfully |
Size description:
| Model | FU-M6-USB-N all-in-one machine |  |
|
| Size | Length | 385mm | |
| Width | 270mm | ||
| Height | 20mm | ||
| Weight | 1800g | ||
