TAG-920Φ100 UHF RFID Buried Tag

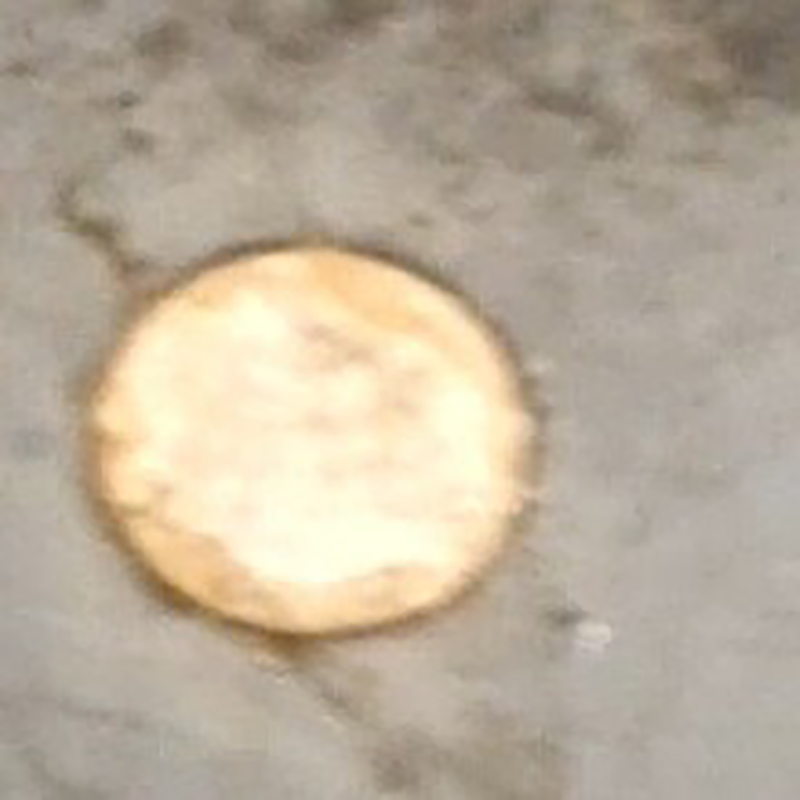

Tag Mounting: Into the ground parallel to the ground
Characteristic: Read distance, Anti-collision, Easy installation
Application: Tobacco Management, Food Management, Cargo location Management, etc
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Feature
- Chip
- Physical
- Environment
- Recommended Products
Overview
It is a specially designed underground label for goods positioning.
It features a long reading distance, high pressure and impact resistance, high mechanical strength and easy installation.
It is especially suitable for various tobacco tray positioning, grain management and other uses, and can be conveniently applied to all occasions that adopt RFID positioning management.
Feature
| Model | TAG-920φ100 |
| Frequency Range | 920-925MHz |
| Tag read range |
Fixed Type:Over 5m,Face Read(Output 30dBm) Mobile type:Over 50 cm,Face Read(Output 28dBm |
| Chip | MR6-P |
| Chip Protocol | EPC Class-1 Gen2 |
| Protocol Support | ISO 18000-6C, EPC global C1Gen2 |
| Functionality | Read/Write |
Chip
| EPC | 128 Bits |
| User Memory | 32 Bits |
| TID | 48 bits |
| Access Password | 32 bits |
| Kill Password | 32 bits |
| EEPROM Data Retention | 10 Year |
| EEPROM Write Endurance | 100,000 cycles |
Physical
| Tag Dimension | 100mm(Diameter) ×15mm( Thickness)(Back Sizing) |
| Material | Ceramic |
| Color | Black(Customized) |
| Weight | 278g |
| Mounting | Into the ground parallel to the ground |
Environment
| Waterproofing grade | IP65 |
| Operating Temperature | -40ºC ~ +250ºC |
| Application | Tobacco Management, Food Management, Cargo location Management, etc |
