Overview
Product Overview
902-928MHz
Gain 5dBi
Circular polarization
Dimensions: 440*130*1mm
Product application
1. RFID logistics tracking
2. Warehouse application
3. Access control system
4. Production line management
Specifications
| Electrical indicators | |
| Frequency range | 902-928MHz |
| Gain | 5dBi |

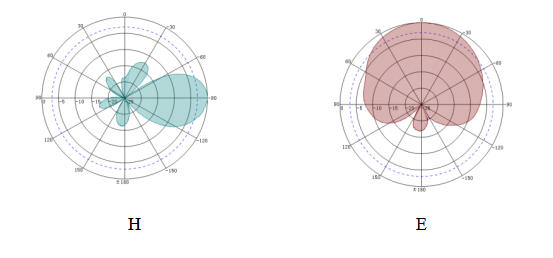

| Flap width | Hor:35° Ver:95° |
| Polarization mode | Circular polarization |
| Voltage standing wave ratio | ≤1.5 |
| Before-and-after ratio | ≥20 |
| Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | Dc grounding |
| Joint type | SMA |
| Mechanical indicators | |
| Antenna size | 440*130*1mm |
| Net weight of antenna | 0.5kg |
| Packaging size | 49*22*3cm |
| Gross weight of the antenna | 0.8kg |
| Antenna cover material | PCB |
| Antenna cover color | black |
| Working temperature | -20-60℃ |
| Waterproof grade | IP55 |
