Overview
◆ Designed for close reading of independent tags
◆ Antenna design mainly made of metal
◆ Near-field characteristic design that can perfectly identify tiny tags
◆ Mini size: 110 mm x 40 mm x 1.6 mm

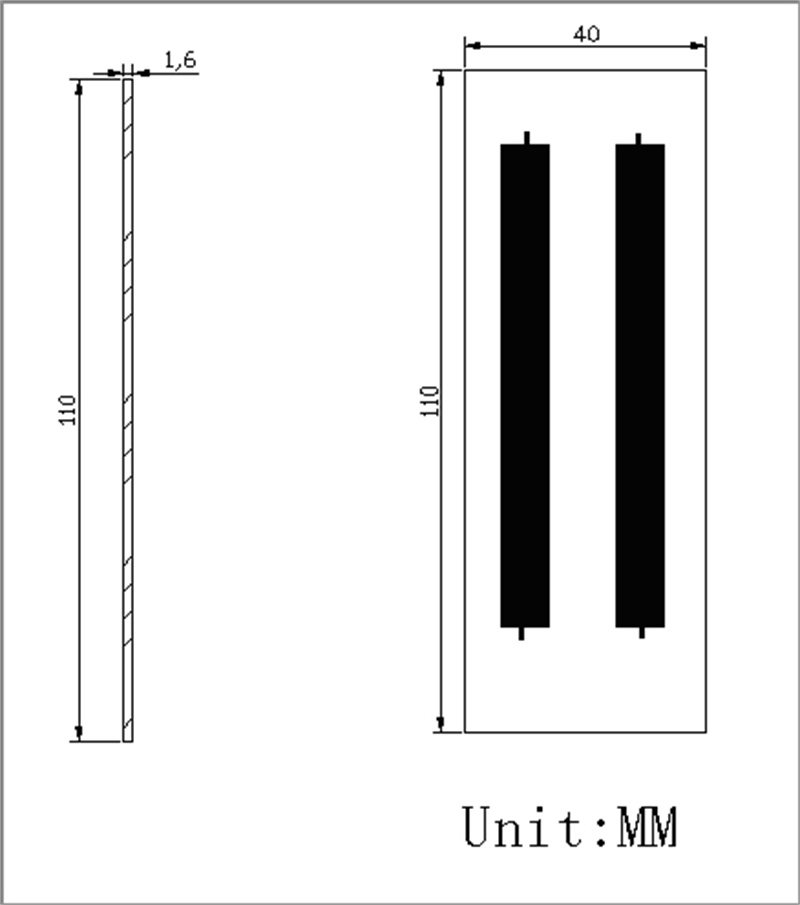

DIMENSIONS

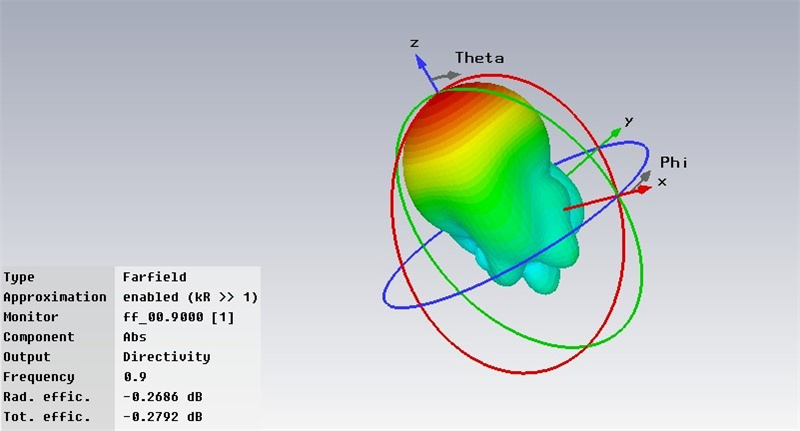

Radiation pattern
Specifications
| NO | Min | Typ | Max | Unit | |
| 1 | Part Number | T40110N | Each | ||
| 2 | Type | Microstrip antenna | |||
| 3 | Operating Frequency | 840MHz-960MHZ | MHz | ||
| 4 | Polarization | Linear | |||
| 5 | Peak Gain | -4 | dbic | ||
| 6 | Beamwidth | >200 | MHz | ||
| 7 | VSWR | 1.5:1 | MHz | ||
