FU-Astra-M6 RFID integrated reader
FU-Astra-M6 is a small ultra-high frequency reading and writing device with an integrated design of antenna and reader. It integrates a high-performance single-port module and supports the ISO18000-6C protocol. The output power is adjustable from 0dBm to 27dBm. The reader is exquisite and compact, has a long reading distance, high accuracy, fast speed, strong anti-interference ability, and supports multiple communication interfaces. It has excellent protective performance and is convenient to install and use.
- Overview
- Specifications
- Recommended Products
Overview
FU-Astra-M6 is a small UHF reading and writing device with integrated antenna and reader. It integrates a highperformance single-port module, supports ISO18000-6C protocol, and its output power is adjustable from 0 DBM to 27.
DBM. The reader is exquisite and compact, with long reading distance, high accuracy, high speed, strong antiinterference ability, and supports a variety of communication interfaces. It has excellent protection performance and convenient installation and use.
Application scenarios
Intelligent vehicle management such as vehicle access control management, parking lots, and the automatic vehicle weighing industry, etc. Production automation, visual management, etc. Logistics industry such as container management, pallet management, etc. Electronic tickets and personnel access control; Asset inbound and outbound management, etc.
Typical application youdaoplaceholder
• Intelligent vehicle management such as vehicle access control management, parking lot, automatic vehicle weighing industry, etc
• Production automation, visual management, etc
• Logistics such as container management, pallet management, etc
• Electronic tickets and personnel access control
• Asset warehousing management, etc
Specifications
| Physical parameter | |
| Size | 129mmx129mmx45mm |
| Weighe | 437g |
| Material aluminum | shell +PC |
| Power Supply | DC12V/3A |
| Radio frequency parameter | |
| Module | high-performance RFID module |
| RFID protocol | EPCglobalGen2V2(ISO18000-63) |
| Frequency | FCC(NA, SA)917.4-927.2MHz; SRRC-MII(P.R.China)920.1-924.9MHz; |
| Radio frequency power | Adjust from OdBm to +27dBm. |
| Tag inventory rate | Up to 200 labels per second. |
| Axial Ratio | <1.3:1 |
| Communication interface | RS232/RJ-4510M/100M adaptive Ethernet interface. |
| GPIO interface | 1 IN/1 OUT (built-in optocoupler isolation), built-in buzzer. |
| RFID antenna | 1 6dbi circularly polarized antenna |
| Label reading distance | 0-6m (depending on label performance and test environment.) |
| Write label distance | 0-3m (depending on label performance and test environment.) |
| Working environment | |
| Operating temperature | -20 C~+60 C |
| Storage temperature | -20 C~+80 C |
| humidity | 5%-95%RH without condensation |
| Protection level | IP54 |
| Development support | |
| API support | C#/.NET, Java, C |

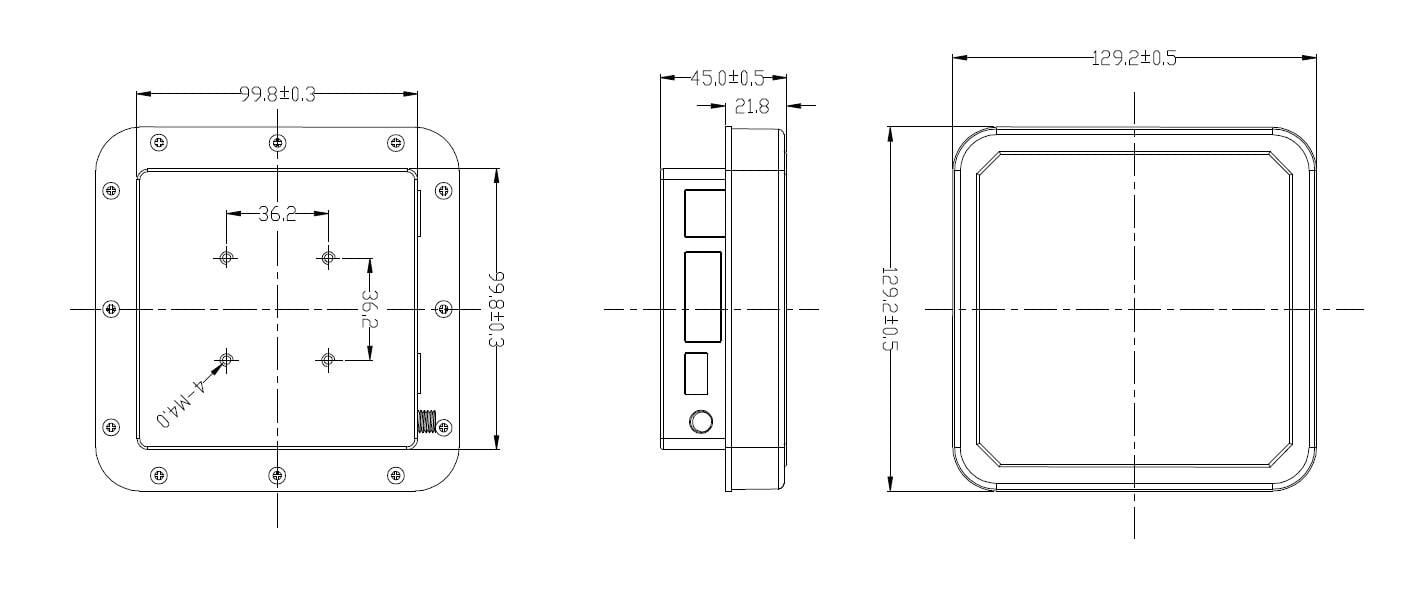

Equipment size

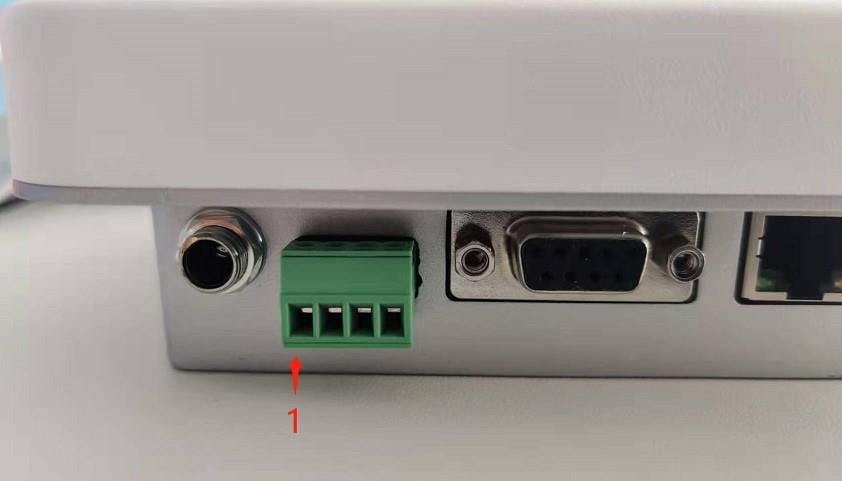

GPIO interface definition
| 1 | GPIO1_IN+ | GPIO1 input of module,external input anode, connected to internal optocoupler anode. |
| 2 | GPIO1_IN- | The module GPIO1 input, the external input cathode, is connected to the internal optocoupler cathode. |
| 3 | GPIO2_OUT+ | GPIO2 output of module controls normally open positive pole of relay. |
| 4 | GPIO2_OUT- | GPIO2 output of module controls normally open negative pole of relay. |
| buzzer | GPI04_OUT | The output of module GPIO4 is high, the buzzer beeps, the output is low, and the buzzer stops beeping. |
