FU-70110 10-Channel Fixed Reader
Conform to ISO18000-6C(EPC C1G2) and 6B agreements;
High-speed scanning and reading speed, reading speed is greater than 250 times per second;
Ultra-long scanning distance, when using 8dBi antenna to read the 9662 white card distance is greater than 12 meters;
Provide 10 antenna interface, can be connected to 10 antennas at the same time to achieve automatic switching;
High-strength one-piece metal body, sturdy and durable industrial-grade products;
Broad spectrum frequency hopping anti-jamming, support DRM mode;
Low power design, significantly reduce energy consumption;
Flexible parameter setting to provide maximum tag reading rate;
- Overview
- Specifications
- Product appearance and size
- Precautions and environmental protection instructions
- Recommended Products
Overview
Application
warehousing logistics
Vehicle Management
Manufacturing
Item tracking
Personnel Management
Foreword
FU-70110 is the 1 industrial grade 10 channel UHF fixed reader. The reader supports ISO18000-6C (EPC C1G2) and 6B protocols, and has the advantages of ultra-high sensitivity, excellent multi-tag anti-collision algorithm, support for dense read-write mode and low power consumption. It is widely used in demanding mid-to-high-end application scenarios, such as fast reading speed, simultaneous reading of multiple tags, intensive read-write environment, and complex networking communication. At the same time, the product provides a standard API user interface to help customers easily apply the reader to their own projects.
Specifications
Electrical Characteristics
| Condition | Parameters | Description |
| Communication mode andExtended Interface | Communication Interface | USB2.0 Full Speed Port (12Mbit/sec) x 110/100M Base-T Ethernet port x 1RS232 x 1 or RS485 x 1Wifi 802.11b/g |
| Antenna Interface | Ten-way SMA external thread female head | |
| GPIO Interface | 2-way switch input (optocoupler isolation)2-way switch output (relay node) | |
| Status indication | Power, Status, and Antenna Indicators | |
| Power | Operating voltage | 9-24V DC |
| Working current | 0.6A * 12V peak @ 30dBm (depending on the output power)0.2A * 12V(PA off)35mA * 12V (standby state)80uA * 12V (deep sleep state) | |
| RF Function | Operating frequency | 902-928MHZ (North America)920-925MHZ (China)840-960MHZ (Multi-country frequency standard can be customized in this range class) |
| Support Agreement | EPC C1 GEN2/ISO18000-6C | |
| Inventory Notes | 902MHZ-928MHZ frequency hopping or fixed frequency (frequency range can be set)Counting speed> 250Tags/S | |
| Output power | 7-31.5dbm, step 1dB | |
| Identification distance | > 12m (8dBi antenna, 9662 white card) | |
| extended application | secondary development | Users can carry out secondary development of reader/writer software based on the provided SDK. SDK supports C/C ++, C#(.NET), Java and binary stream formats. |
Mechanical Characteristics and Operating Environment
| Condition | Parameters | Description |
| Shape and structure | Dimensions | 190mm (length) X 111mm (width) X 32mm (height) |
| Weight | 850g (without bracket) | |
| Installation method | Wall-hanging fixed type | |
| Use of the environment | Working temperature | -40-75 ℃ |
| Storage temperature | -40-80 ℃ | |
| Working humidity | 0% - 95% non-condensing |
*Contact us for equipment details and custom equipment.
Accessories List
| Name | Quantity |
| FU-70110 10-channel fixed reader | 1 |

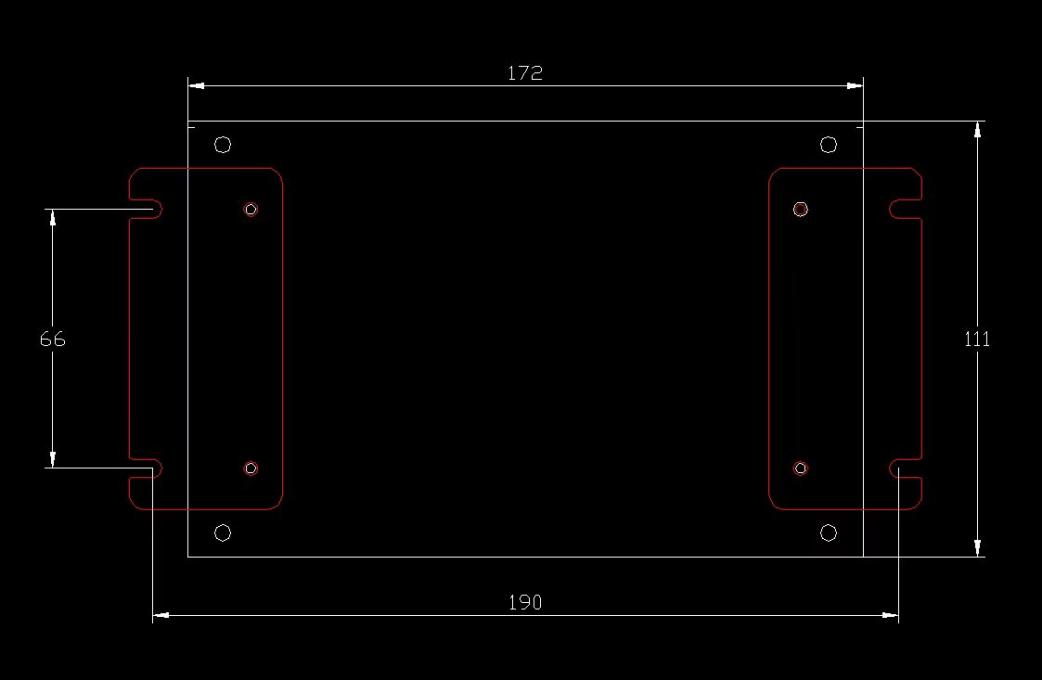

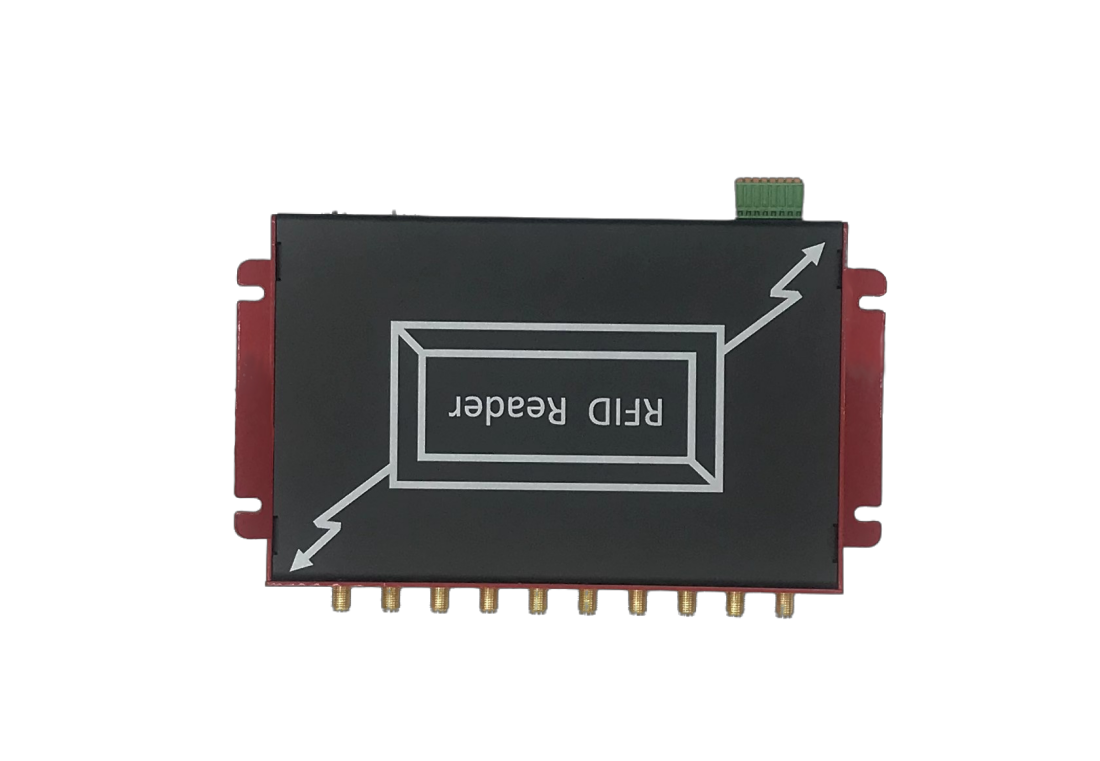

Product appearance and size
FU-70110：190mm (length) X 111mm (width) X 32mm (height)
Precautions and environmental protection instructions
Considerations
For safe and effective use, please read the following information before using this product:
● Do not disassemble the casing without professional authorization to prevent damage.
