FU-CB-H01 UHF RFID Medical Consumables Cabinet
High-value medical consumables generally refer to medical materials that are used in various specialties and directly act on the human body, have strict safety requirements, and are relatively high in value. It mainly includes stents, artificial organs, interventional catheter materials, implant materials, anesthesia materials, etc. With the rapid expansion of hospital scale, its usage scope and quantity are showing a rapid growth trend. In the face of the increasing usage of high-value consumables, hospitals also need to manage them efficiently and safely, effectively preventing the loss of high-value consumables, and conducting dynamic management and real-time monitoring.
- Overview
- Specifications
- Features
- Other information
- Recommended Products
Overview
Ultra-high frequency RFID medical consumables cabinet, based on RFID technology, automatically senses the inventory inside the consumables cabinet and realizes the automatic record of consumables requisition, which is convenient and efficient. One medicine, one code. By using ultra-high frequency RFID tags, a unique identity ID is assigned to each consumable. From the system entry of the consumable, the unique value of the tag is bound. When in use, the nurse opens the cabinet door by means of finger vein, card swiping, etc. They can directly collect and close the door. The type, specification, quantity and other information of the used consumables will be automatically recorded, and the corresponding settlement information will be pushed to the patient for settlement.
Working environment conditions
The product is suitable for hospital operating rooms, interventional rooms, etc., and can also be placed in dedicated consumables rooms.
Safety and protective measures
When the equipment is not in use, the power supply must be cut off.
The equipment is for fixed use and can lean against the wall at the back.
The panel is made of tempered glass. Do not strike it with gravity or sharp objects.
Except for maintenance personnel, no one else is allowed to open the top maintenance panel.
Keep the equipment clean and well-ventilated.
Specifications
| Main cabinet parameters | |
| Appearance dimensions: | 835MM(L)*560mm(W)*1950mm(H) |
| Packaging dimensions: | 935MM(L)*660mm(W)*2150mm(H) |
| Operating system: | Windows 7 |
| CPU configuration: | Intel Core i5 |
| Performance configuration: | DDR3/4G running memory; 500G mechanical hard drive /120G solid-state drive |
| Display screen: | 14-inch capacitive touch display; Resolution: 1920*1080 |
| Network interface: | LAN (RTL 8111E Gigabit network card) |
| Other interfaces: | USB2.0*3 |
| Functional modules: | QR code scanning, finger vein, high-frequency card, ticket printing (optional) |
| RFID module: | Built-in ThingMagic four-channel module |
| RFID operating frequency: | 902MHz to 928MHz |
| Multi-tag recognition: | Multi-tag anti-collision, over 300 tags (it is recommended to use around 150 tags evenly). |
| Cabinet material: | 1.2MM thickened carbon steel plate; Imported plastic acrylic Metal LV6061 |
| Surface treatment: | Sheet metal powder coating |
| Shielding performance: | ≤5cm |
| Power supply: | AC 200V±10% |
| Power consumption: | ≤80W |
| Weight: | 110KG |
| Auxiliary cabinet parameters | |
| Communication interface: | Serial Port 232/ RG45 (connected to the main cabinet) |
| Functional modules: | Finger vein, high-frequency card |
| RFID module: | Built-in ThingMagic four-channel module |
| RFID operating frequency: | 902MHz to 928MHz |
| Multi-tag recognition: | Multi-tag anti-collision, over 300 tags (it is recommended to use around 150 tags evenly). |
| Cabinet material: | 1.2MM thickened carbon steel plate; Imported plastic acrylic Metal LV6061 |
| Surface treatment: | Sheet metal powder coating |
| Shielding performance: | ≤5cm |
| Power supply: | AC 200V±10% |
| Power consumption: | ≤80W |
| Weight: | 100KG |
Features
It can store high-value medical consumables, enabling rapid inventory taking and automatic identification and recording of entry and exit from the warehouse.

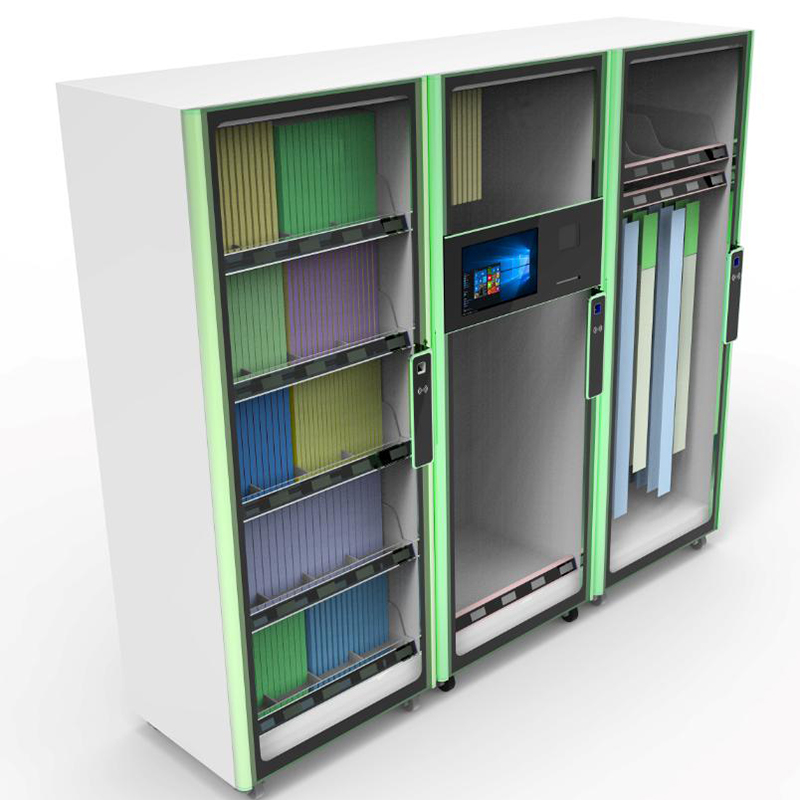

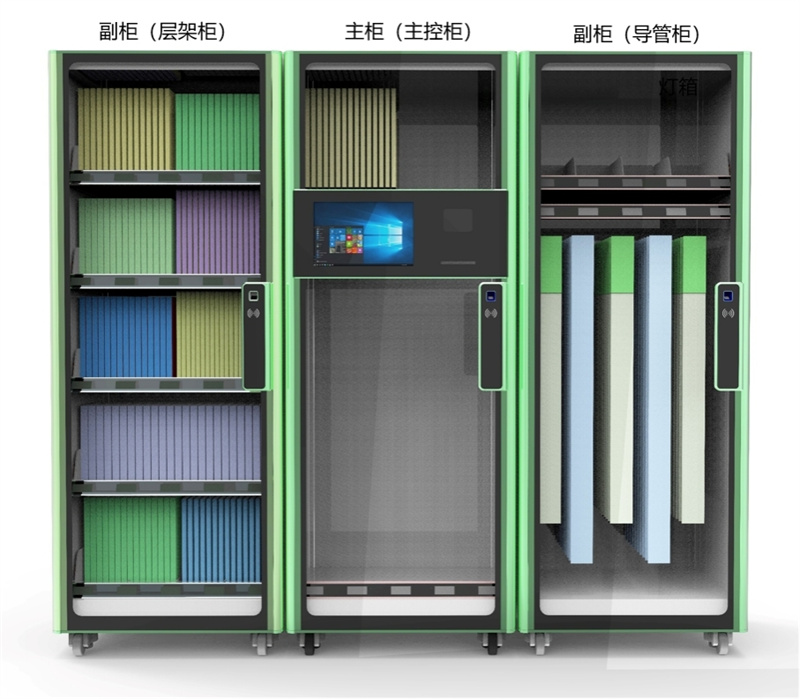

Any number of cabinets can be combined and configured, including main cabinets and auxiliary cabinets (window display auxiliary cabinets/conduit auxiliary cabinets).
After the operation, the data can be connected to the transmission HIS system for billing to avoid missed charges.
It can dynamically display the inventory, usage and out-of-stock information of consumables in real time, and realize a lean supply system for the application, procurement and replenishment of consumables.
Through the software, near-expiration early warning, out-of-expiration interception and batch number tracking management can be achieved.
The report query perfectly replaces the manual records retained by departments, and realizes electronic traceability of information such as supplementary reporting and loss of consumables.

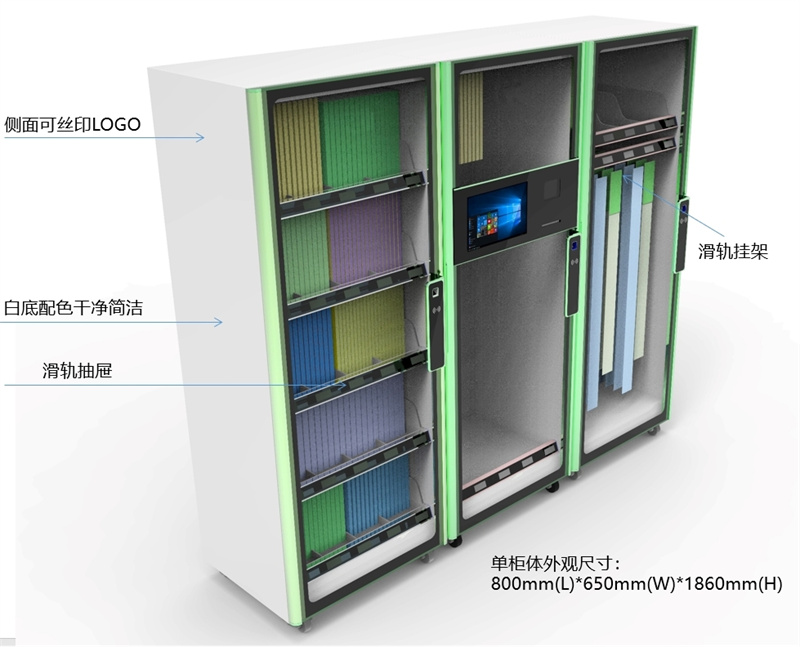

The side can be customized with silk-screen printing and OEM services are provided.
The slide rail drawer and hanging rack can be pulled out when in use, making it convenient to take out consumables.
The top of the cabinet is equipped with an emergency unlocking and maintenance window.

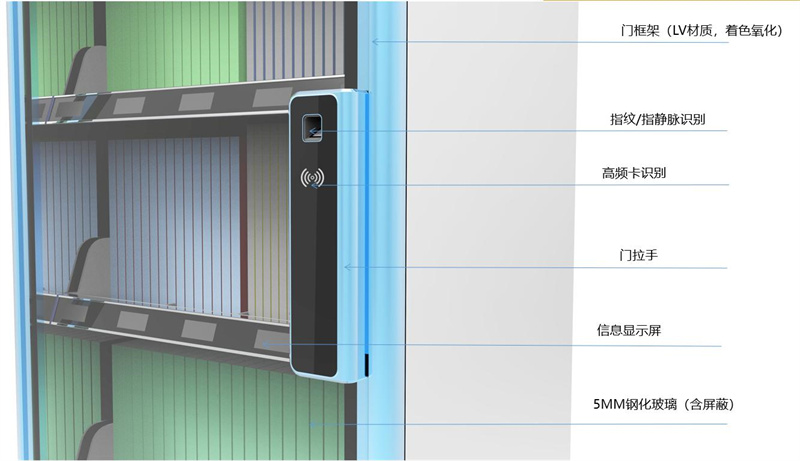

The door frame is made of aluminum profiles through oxidation, which is sturdy and durable with an attractive appearance.
The secondary cabinet offers multiple door opening methods, including finger vein, medical card, or software control for the main cabinet.
Each floor is equipped with four grid information display screens, which can show the types and information of consumables in real time and prompt nurses to take them.
The layer board is equipped with acrylic transparent partitions to separate categories and facilitate management.
The cabinet body has a transparent window, making it convenient to observe the usage of consumables from outside the cabinet.

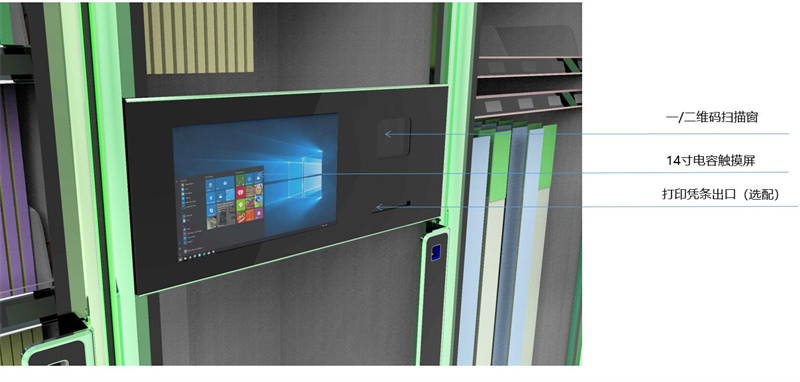

The main cabinet is equipped with a QR code scanner, which is convenient for reading identity information for door opening verification or scanning the QR code of consumables for RFID data reading in special circumstances (when the RFID tag is invalid).
Equipped with a 14-inch capacitive touch screen, it facilitates human-computer interaction and process management.
An optional receipt printer is available to print the data for record-keeping.
The secondary cabinets can be controlled and cascaded through the main cabinet to achieve multi-cabinet control, unified data summary and external data interaction.
Other information
Size and weight
Weight: 150kg including wooden box packaging.
Installation and commissioning
The ultra-high frequency medical consumables cabinet is shipped by conducting a complete machine test and packaging the entire machine in a wooden box before shipment. Customers can directly enter the commissioning and acceptance stage without installation.
Structural Acceptance
Check the accessories on the packing list and verify whether the connections between each device are normal.
Check whether each component is firmly fixed.
Whether all components have been installed in place;
Check whether all kinds of cables are firmly and correctly connected.
Check if the screws are tightened.
Check if there is any hard damage to the appearance of the equipment.
Daily maintenance and repair
1. Before starting up, check the power supply and control switches. Whether the buttons and the like are safe. Reliable.
2. After power-on, if network communication cannot be established, please open the top maintenance cover, check if the network cable is connected properly, and search for the IP through the Demo. If the software fails to open due to the situation where the IP can be searched, please check whether the local IP and the device IP are in the same network segment.
3. If there is any missed reading, please check whether the tag is damaged or the reading distance is too close, whether the equipment power needs to be adjusted and whether all antennas are turned on.
4. In case of any abnormality with the equipment, immediately press the emergency switch and check the working condition of all parts of the equipment. If you cannot rule it out by yourself, you should contact the after-sales department of the equipment immediately.
5. The equipment has not been used for a long time. The power supply should be cut off.
7. Transportation and storage
7.1 Transportation and Requirements
It is suitable for transportation modes such as railways, highways, aviation and waterways.
If the products are transported by dedicated vehicles, foam packaging can be adopted. For logistics transportation, wooden crates are used for packaging.
Youdaoplaceholder3 Can be placed upright, not upside down;
Unboxing tools: flat-head screwdriver + hammer
Safety Reminder: The iron sheets at the wooden box joints are sharp. Be careful not to scratch them!!
7.2 Storage Requirements
When storing, keep the door closed to prevent rain from soaking.
No items are allowed to be piled up on the front.
The environment should be cool and dry, with a temperature not exceeding 50℃.
Packing list
| Name | Unit | Quantity | Remarks |
| Medical consumables cabinet | Taiwan | 1 | Main cabinet/Secondary cabinet |
| Power cord | The root | 1 | |
| Emergency lock key | The | 2 |
