TAG-915-Sensor-210031A UHF RFID LED Tag
Tag-915-sensor-230131a is a battery-free RFID electronic TAG with a light-emitting diode (LED). It is a high-frequency electronic tag specifically designed for single-item positioning and features a rapid search function. This label is equipped with an LED light. When the label needs to be located, simply select the EPC number of the label, and the LED light on the label will flash, allowing users to identify the managed items more intuitively and making inventory checks, goods search or other processing procedures easier.
- Overview
- Specification parameters
- Size
- List of Attachments
- Recommended Products
Overview
Meanwhile, the TAG-915-Sensor-230131A adopts a special structural design, featuring high LED light brightness, compact size, and a fully flat label surface. It can be printed, meeting the requirements of visualization systems and batch initialization of RFID information. It is flexible and convenient to apply.
Specification parameters
Electrical characteristics of equipment
| Conditions | Parameter | Explanation |
| Basic parameters | FaceStock or Housing | Printable White PET |
| Antenna Type | Aluminum Antenna | |
| Technology | Microstrip Flat Style | |
| Characters | General/LED Reminded | |
| Product features | Chip Model | KX2005XB-L/T |
| Protocol | ISO18000-6C GEN2 | |
| Operating Frequency | 865-868Mhz | |
| Memory | TID/UID Upto 192bit+ EPC/Block Upto 240bit+ User 1312bit+ Reserve 64bit | |
| Reading Range | 300cm (depends on reader) | |
| Applicable Surface | Air-free | |
| Option | Custom color printing(Embossing or laser-engraving) with barcode or text & personalization encoding | |
| Additional | LED color: Red |
Mechanical properties and usage environment
| Conditions | Parameter | Explanation |
| Shape and Structure | Size(L/OD x W/ID x H) | 95*30*0.2mm(ID/OD:ID/OD:inner/outer diameter of round tags) |
| Backing Liner | White Glassine Paper Liner | |
| Installation | Hanging Style | |
| Usage environment | Data EEPROM Retention | 10years |
| ESD Limited Voltage | 2KV | |
| Operating Temperature | -35℃ - 85℃ | |
| Storage Temperature | 0℃ - 25℃ | |
| Relative Humidity | 10%-95%(Variant Performance) |
For detailed information about the equipment and to customize it, please contact us.
Size

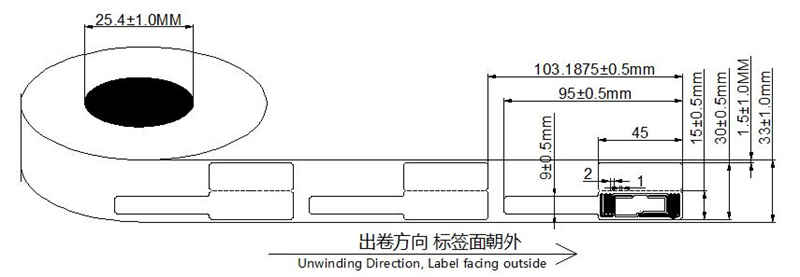

Product size

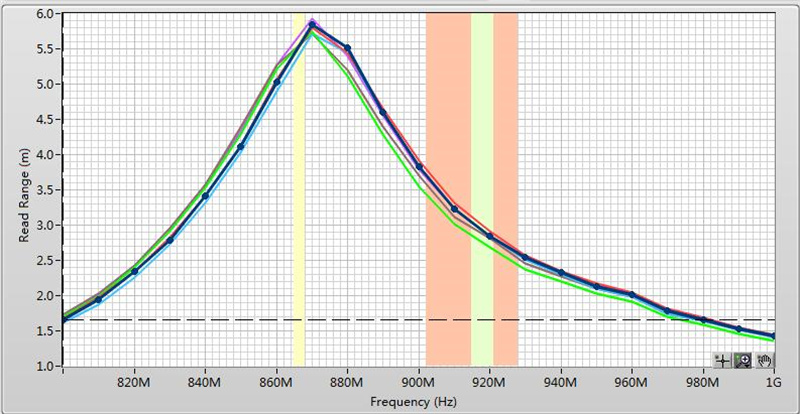

Linear graph of the relationship between reading range and frequency
List of Attachments
| Name | Quantity | Remarks |
| TAG-915-Sensor-210031B | Each roll contains 1,000 to 3,000 pieces | For special requirements, please contact us |
Note: Items not included with the equipment or subsequent optional items will not be recorded in the list. For specific information, please confirm with the salesperson.
