Overview
UHF RFID Reader Circular Polarization Antenna
Microstrip ceramics Antenna with RHCP
Small antenna element
Low Weight, Compact Size
Low interaction with platform
Negligible detuning close to users
Easy application and Save development time

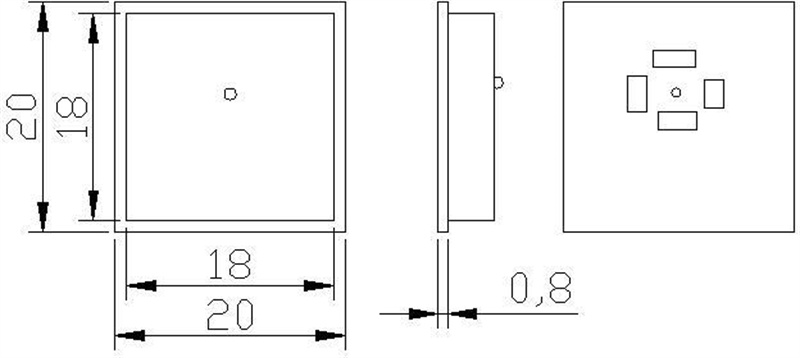

DIMENSIONS

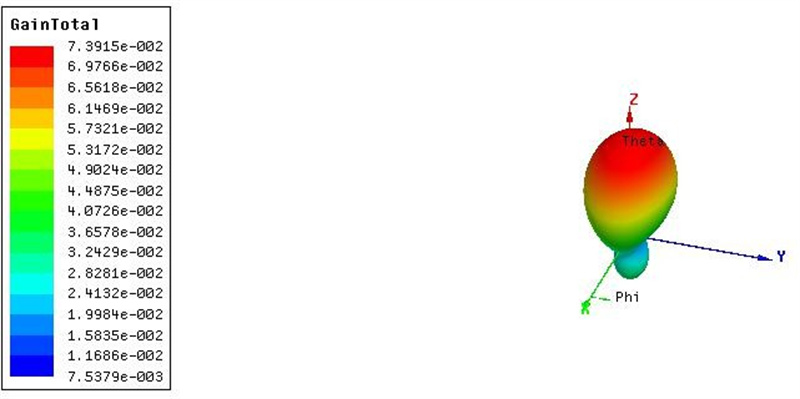

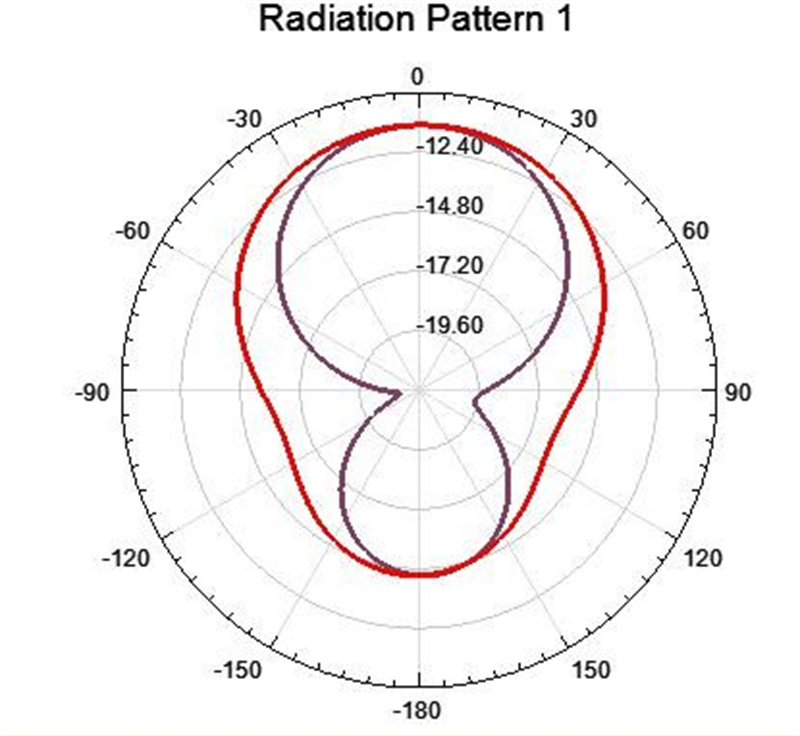

Radiation pattern
Specifications
| Operating Frequency (MHz) | 922.5MHz±2MHz |
| V.S.W.R | 1.5:1 |
| Type | Microstrip Ceramics Antenna |
| Band Width(MHz) | >4.0 |
| Peak Gain(dBic) | -1 |
| Polarization | RHCP |
| Axial Ratio(db) | <2.0 |
