FU-SmartBox-F UHF RFID Jewelry Inventory Box

Overview

Characteristics

Support EPC C1 G2 (ISO18000 ‐ 6C) protocol;

The maximum output power support is 31.5dbm, and the power is adjustable (the range is 8 dBm ‐ 31.5dBm);

With jewelry inventory, query function;

The inventory rate is fast, and the inventory can be completed within 12 seconds;

Secondary development is convenient;

Design with independent intellectual property rights;

Application

Gold Jewelry Inventory

Jewelry and jade inventory

Archives management

Asset Management

Foreword

FU-SmartBox-F01 is a high-performance UHF read-write device, which FU-SmartBox-F01 supports EPC Gen2 & ISO18000-6B & 18000-6C & IP-X(18000-6D) multiple UHF RFID protocols (ISO18000-6B & 6D, authorization is required before use); And supports multi-protocol automatic identification and mode switching.

The FU-SmartBox-F01 is designed in accordance with EMC IEC61000-4 standards and meets the industrial wide voltage input mode. The power input and signal are isolated. The isolated voltage is 2KV, wide voltage input and industrial wide temperature working temperature meet the long and stable working time. Industrial serial port/network port output meets high-speed automatic real-time data transmission.

FU-SmartBox-F01 gives full play to the advantages of Thingmagic RFID module algorithms. Its excellent tag chip compatibility supports Alien H3, Impinj M series, NXP G2x * & G2i * series, ID Cool Log tag chips, and the tag compatibility is unique in the industry. Supports multiple protocols including EPC Gen2 & ISO 18000-6C, EPC ISO 18000-6B, IP-X multiple RFID protocol standards.

FU-SmartBox-F01 full support for ThingMagic Mercury API embedded operating system. NET and Java SDK, you can easily customize the interface, so that the reader needs to control.

The FU-SmartBox-F01 supports firmware upgrade through network and serial port, and supports secondary development. For small size, high-density information collection has a very accurate and efficient working ability.

Specifications

Electrical characteristics of equipment

Mechanical characteristics and use environment

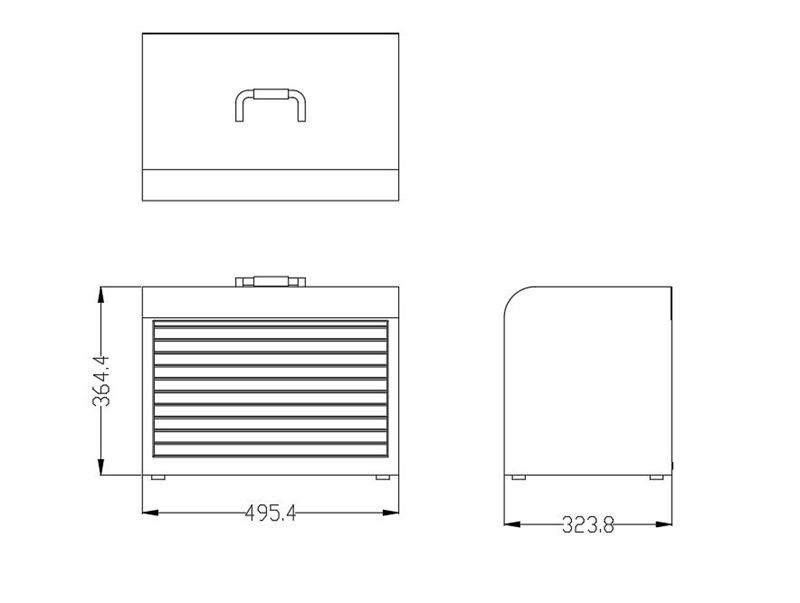

Product appearance and size

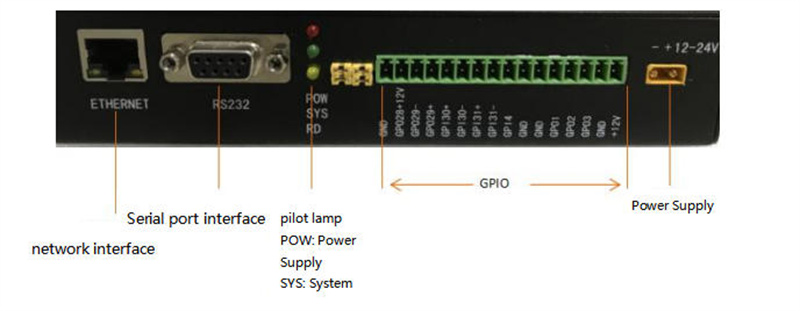

Interface definition

Accessories List

Note: Items that do not belong to the equipment accompanying or subsequent optional items will not be recorded in the list. Please confirm with the sales for specific information.

Precautions and environmental protection instructions

Precautions

In order to use this product safely and effectively, please read the following before use.

● Non-professionals are strictly prohibited to open the shell to prevent product damage.

Warranty Service Terms

1.Warranty Service Scope

● Warranty Products:

To comply with the relevant laws and administrative regulations of the People's Republic of China, this warranty service is a limited warranty applicable only to products sold by Shenzhen Fuwit Technology Co., Ltd. (hereinafter referred to as "Fuwit") or its authorized distributors.

● Warranty period:

From the date of shipment, products that experience malfunctions under normal use within the specified period are eligible for warranty service. Customers requesting warranty services must provide a purchase contract, delivery receipt, the faulty device's SN number, and a description of the issue to prove that the product qualifies for a one-year warranty from the date of shipment.

● Exclusions from Warranty:

a. Failure to provide valid purchase contracts, delivery receipts, or proof of purchase (including altered purchase contracts or receipts, or discrepancies between documents and actual products).

b. Surface damages such as scratches, dents, or depressions.

c. Consumable items like batteries, except in cases where defects result from material or manufacturing issues.

d. Damage caused by accidents, misuse, improper handling, fire, natural disasters, or improper maintenance (including external force damage).

e. Repairs, modifications, or alterations conducted by unauthorized personnel, which may lead to permanent product damage.

2. Description

● This warranty policy grants you specific legal rights, which may vary by country. Other statutory rights under different national laws are not excluded, limited, or suspended by this policy. Some of the following limitations may not apply to you.

● To the extent permitted by law, this warranty policy is exclusive and supersedes all other express, implied, or statutory warranties, including but not limited to warranties of merchantability, fitness for a particular purpose, or any other condition under statutory laws. Furthermore, Fuwit shall not be liable for any incidental, special, indirect, or consequential damages arising from the use, misuse, inability to use, or defects of the product.

● Fuwit reserves the right to deny warranty claims for products or services obtained and/or used in violation of any national laws.

● Products purchased through auction websites or from non-authorized distributors of Fuwit are not covered under this warranty service.

● If the product is determined to fall outside the warranty scope after inspection, Fuwit will proceed with repairs only after obtaining customer approval and charging a quoted fee. Repaired components are covered by a 90-day warranty for the same functionality failure.

● Fuwit reserves the right to repair or replace the product or software. Repairs will be performed using original manufacturer parts following standard procedures. If the product cannot be repaired, it may be replaced with a module or an entire unit. If repair parts are out of stock or the product has been discontinued, Fuwit will provide an equivalent replacement product based on depreciation value during the warranty period or offer an upgrade option with an additional charge upon customer agreement. Products outside the warranty period will not be eligible for repair services. Any replaced defective parts will become the property of Fuwit.

3.Precautions

● Before requesting warranty service, customers should back up all personal and important data and provide only the faulty product for repair. During the repair process, all data stored in the device may be lost and cannot be recovered. Fuwit does not provide data backup services and does not guarantee that system settings will remain unchanged before and after repair.
