FU-GA-B10A One-Dimensional Positioning Base Station Acknowledgement Document
Characteristics
1. One-dimensional high-precision positioning can be achieved by a single base station without the need for multiple base stations to co-locate
2. Small size, easy to install
3. It can realize the relative position positioning of the moving target, which greatly expands the application scenario of the positioning system.
4. Can achieve peer-to-peer positioning, that is, the two sides of the communication can locate each other.
5. Can work normally in harsh environments such as dust and smoke
6. Multi-channel signal interface optional, can add CAN interface, relay control interface, signal input, etc.
Application
1. coal power chemical industry
2. Office, warehousing logistics
3. Tunnel positioning
- Overview
- Specifications
- Precautions
- Recommended Products
Overview
FU-GA-B10A one-dimensional positioning base station, using ultra-wideband communication, combined with TOF(Time Of Flight) ranging technology positioning system, only a single base station can achieve high-precision positioning, with excellent positioning accuracy and anti-multipath, anti-occlusion performance, coverage of 800 meters (400 meters) can reach 1000 meters under good conditions.
Compared with the multi-base station grouping positioning system based on TOF technology, the dual-antenna base station has obvious advantages in complexity and installation and deployment cost. The positioning tag only needs to be visible with one positioning base station to realize high-precision positioning, which makes the one-dimensional positioning system have more significant advantages over other schemes in tunnels and highways. At the same time, it is supplemented by multiple fusion positioning engines, which can fuse positioning data of multiple dimensions (including but not limited to UWB single antenna base station, UWBAOA, Bluetooth beacon, Bluetooth AOA, LoRa, GPS, RTK) to meet various positioning requirements.
Specifications
Electrical characteristics of equipment
| Condition | Parameters | Description |
| Communication mode andExtended Interface | Communication Interface | Ethernet port (10Mbps/100Mbps adaptive)DC interface interface (5521 female)Single relay control interface (2Pin, optional)Single signal input interface (2Pin, optional)Single CAN signal interface (2Pin, optional) |
| Indicator light | Optional | |
| Network Extension | Optional WIFI bridge, used to access the environment WIFI | |
| Power | Power supply | 48V standard POE power supply/DC12/aviation plug (power supply can choose one) |
| Power | Less than 3.5W | |
| Positioning performance | Antenna | Two directional flat panel antennas |
| Positioning mode | TOF | |
| Number of concurrent recognition | ≥ 180 persons/second | |
| Positioning frequency | Single device up to 32 times/second | |
| Transmit power | ≤ 12Dbm | |
| Positioning accuracy | Static <10cm | |
| Positioning delay | Maximum <30ms | |
| base station coverage | ± 500 m (1000 m in both directions) |
Mechanical characteristics and use environment
| Condition | Parameters | Description |
| Shape and structure | Dimensions | 250mm * 200mm * 80mm |
| Net weight | 1200g | |
| Colors | silver gray | |
| Protection level | IP66 | |
| Use of the environment | Working temperature | -20 ℃ ~ 70 ℃ |
| Storage temperature | -40 ℃ ~ 70 ℃ | |
| Relative humidity | ≤ 95%(25 ℃) | |
| Atmospheric pressure | 80KPa ~ 106KPa |
*Contact us for equipment details and custom equipment.

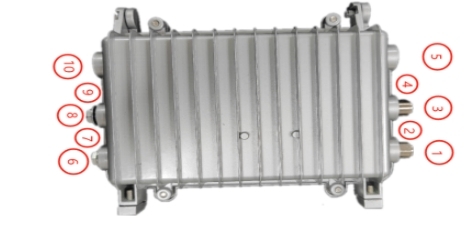

Interface Description
| Serial Number | Function | Specifications | Style Chart |
| 1 | NC | ||
| 2 | NC | ||
| 3 | Base station external antenna interface A- male | Nhead mother -1.0 silk, N-K-1.0 |  |
| 4 | WIFI-2.4G joint | SMA bore |  |
| 5 | NC | ||
| 6 | Power supply 12~36V DC input | M12-1 wire, aviation plug male head, 5P |  |
| 7 | NC | ||
| 8 | Indicator light | Blue and green, power and network lights | |
| 9 | NC | ||
| 10 | RJ45 Mesh Fitting | Lead wire RJ45 waterproof connector female |  |

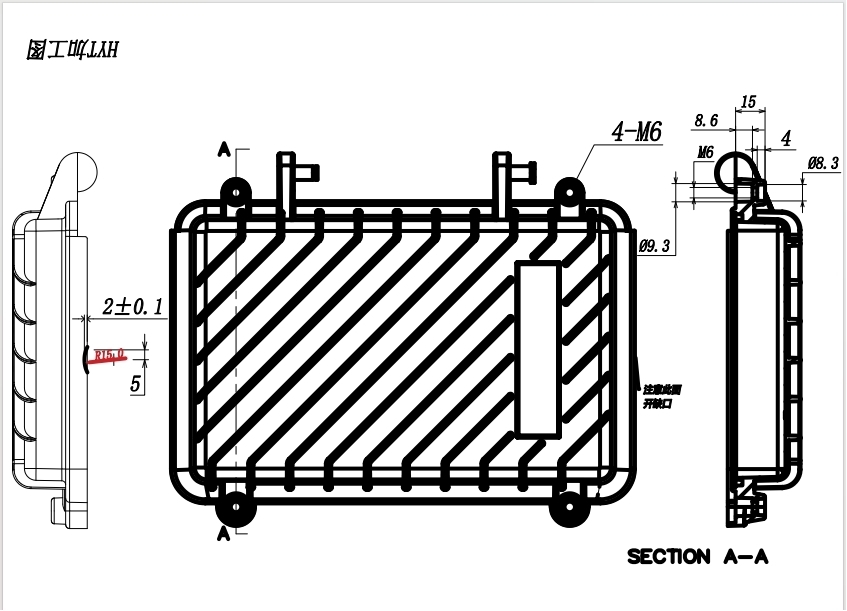

Product structure size
List of product accessories
| Serial Number | Name | Quantity | Remarks |
| 1 | FU-GA-B10A one-dimensional positioning base station | 1 | |
| 2 | Positioning Base Station 5pin Power Cord | 1 | Power cord 3 m/vehicle 12v power supply port (bare wire) |
| 3 | omnidirectional antenna | 2 | Gain: 8dBi, interface: N-type male external screw hole |
| 4 | Omni-directional antenna extension cable | 2 | 4 m (impedance: 50Ω, interface: N-type male head inner screw inner needle) |
| 5 | Antenna bracket | 2 | |
| 6 | WIFI antenna | 1 | Gain: 5dBi Connector: SMA male |
Note: Items that do not belong to the equipment accompanying or subsequent optional items will not be recorded in the list. Please confirm with the sales for specific information.
