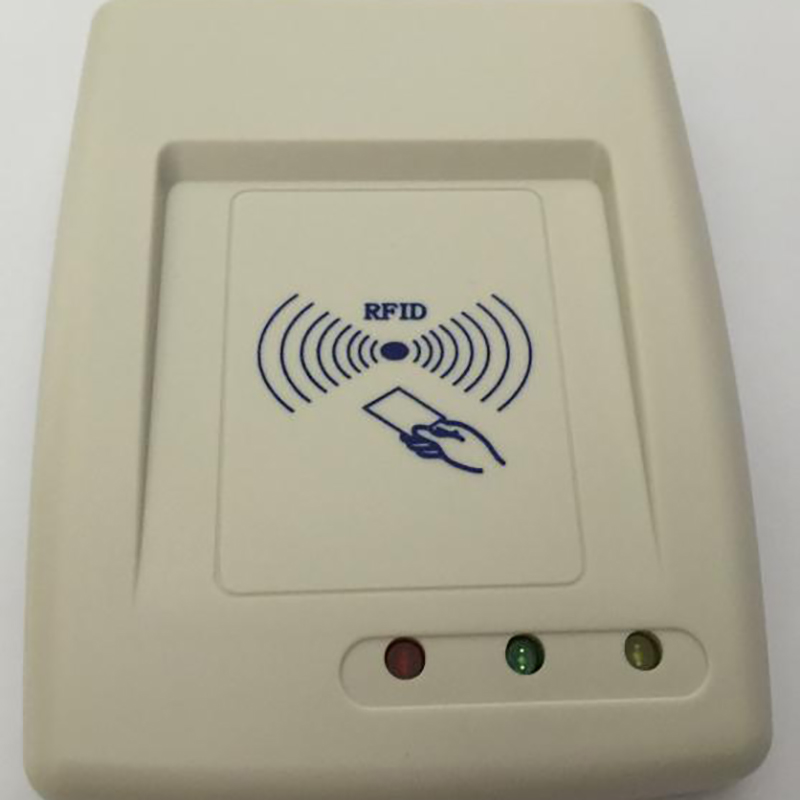

UHF RFID Desktop Reader/Writer
The USB Plus NANO desktop UHF RFID card issuer uses the cost-effective ThingMagic-Nano RF chip in the industry. Using a 50mm x 50mm RFID doubly-fed ceramic antenna, there is no blind spot for reading and writing tags. The USB Plus NANO ultra-high frequency RFID reader uses the FT232 USB-to-serial chip to provide stable USB communication in the industry. All high-performance components are adopted, with an extremely low temperature drift coefficient, allowing it to operate in harsh environments. The tag reading distance range is wide, and it is widely applied in various industry sub-sectors such as smart warehousing and logistics, archive informatization, smart new retail, and smart healthcare.
- Overview
- Specifications
- Recommended Products
Overview
1. Excellent label reading performance: The label reading distance range is wide, adjustable from 1cm to 3m, to meet the needs of different application scenarios. The industry's highest success rate in writing labels. Multi-label recognition capability: >200 labels. Label recognition speed: >200 labels per second.
2. Professional and fast interface: Supports USB 2.0 interface. Supports USB power supply.
3. Extremely low power consumption: It does not generate heat when working continuously at full load for a long time at room temperature. The continuous operating current is less than 500mA at 5.0V (267dBm Output). The standby continuous current is less than 0.025mA @ 5.0V (0 dBm Output).
4. Excellent consistency: A model work of consistent design. All indicators have been strictly calibrated. Ensure consistency.
5. Simple and efficient software interface: Compatible with the communication interfaces of all ThingMagic products, allowing for easy interchangeability and use.
Specifications
| Product performance | |
| The radio frequencychip usesThingmngic-Nanomodule | The reader uses the most cost-effective UHF RFID module in theindustry. |
| Use the highestperformance components |
Using a 50mm x 50mm dual-feed ceramic antenna, there is no blind zoneforreading and writing tags. Uise FT232 USB to serial chip to provide the most stable USB communicationin the industry. All the components of the highest level are used, and the temperaturedrift coefficient is extremely low,which ean work in harsh environments. |
| Excellent 1abelreading performance |
The label reading distance has a wide range, adjustable from lcm to 3a tosuit different applications. The industry's highest success rate of labelwriting. Multi-label recognition capability: >200 labels. Label recognition speed: >200 sheets/sec. |
| Professional andfast interface | Support USB 2.0 interface. Support USB power supply. |
| Very low power consumption |
Long-term continuous full-load work at room temperature withoutheat. Continuous working current <500mA@ 5.0V (267dBm Output). Standby continuous current <0.025mA@ 5.0V (OdBm Output). |
| Excellent consistency |
A model of consistent design. All indicators havebeen strictly calibrated. Ensure consistency. |
| Simple and efficientsoftrare interface | It is compatible with the communication interfaces of allThingmagic products and can be easily interchanged. |
| Supports two installationmethods at the same time |
Can be used as a desktop card issuer. It can be wall-mounted and used as an access control machine. |
| Optional cover color | Optional color: pearl white. |
| Electrical performance | |
| Operating Voltage | DC-5.0V. |
| Standby current | <0.025mA. |
| Working current |
Continuous working current <500mA@ 5.0V (267dBm Output). Standby continuous current <0.025mA@ 5.0V (0 dBm Output). |
| Start Time | <10mS. |
| Operating temperature | -30℃ +70 ℃ |
| storage temperature | -40℃-+85 |
| Working humidity | <95%(+25℃) |
| Air interface protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C |
| Workingspectrum range | 902Mhz-928Mhz865MHz-868MHz(Optional) |
| Work area support |
US,Canada and other regions following U.S. FCCEurope and other regions following ETSI EN 302 208 Mainland China JapanKorea Malaysia Taiwan |
| Output power range | 0-27dBm |
| Output power accuracy | +/-0.01dB |
| Output power flatness | +/-0.01dB |
| Receiving sensitivity | <-86dBm |
| Inventory label peak spe |
ed>200 |
| Tag buffer | 200 labels @ 96 bit EPC |
| Labe1 RSSI | Support |
| CommunicationInterface | USB 2.0 |
| Communicationbaud rate | 115200 bps (default and recommended) |
