TAG-915M8030 UHF RFID Jewelry Tag
Compact in structure, lightweight and beautiful.
Large-capacity chip storage area to meet users' customized needs.
Batch group reading is convenient and fast.
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Environmental Requirement
- Product structure
- Product packaging and list
- Recommended Products
Overview
| Item | Parameters mm |
| Inlay Length | 11±0.20 |
| Inlay Width | 42±0.20 |
| Inlay right to label right | 2±1.0 |
| Inlay left to label left | 17±1.0 |
| Label Length | 30±0.5 |
| Label Width | 80±0.5 |
| Label Corner Radius | R=1±0.50 |
| Label Edge to Liner Edge (Top) | 6±1.0 |
| Label Edge to Liner Edge (Bottom) | 6±1.0 |
| Label Pitch | 40.005±0.5 |
| Label Gap | 4.005±0.5 |
| Liner Width | 80±1.00 |
| Core ID | 3inch(76.20±0.50) |
| Roll OD | ≤201 |
| Inlay Top to Label Top | 3±1.0 |
| Inlay Edge to Label Edge (Bottom) | 35±1.0 |
| Antenna Length | 11±0.20 |
| Antenna Width | 42±0.20 |
Environmental Requirement
Labeling temperature/humidity :[10°C to 40°C]20% to 80%
Temperature/humidity after RH labeling :[-20°Cto+50°C]20%to80%R(varies depending on the material being labeled).
Finished product shelf life: Under conditions of 23±5°C temperature and 50±10% relative humidity, it can be stored for one year when sealed in anti-static bags.
Notice: The above suggestions regarding environmental requirements are based on our company's latest knowledge and existing experience. Our company reserves the final right of interpretation of the product.

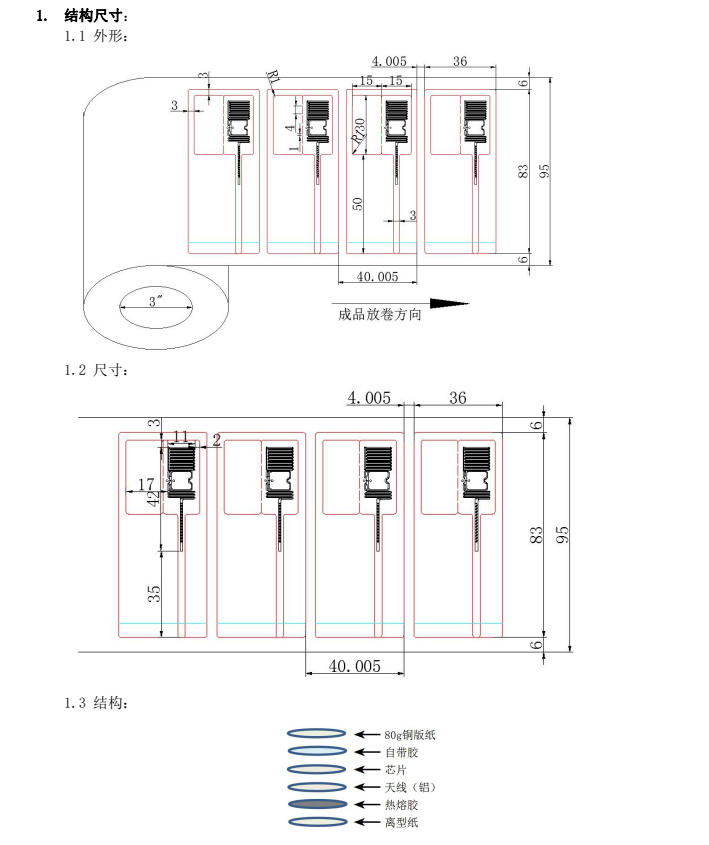

Product structure
Product packaging and list
| Shipping methods: |
1. Roll form 2. Vacuum packaging |
| Winding quantity: | 2500±2Pcs per roll |
| Packaging method: | 8 rolls per box (subject to actual shipment); |

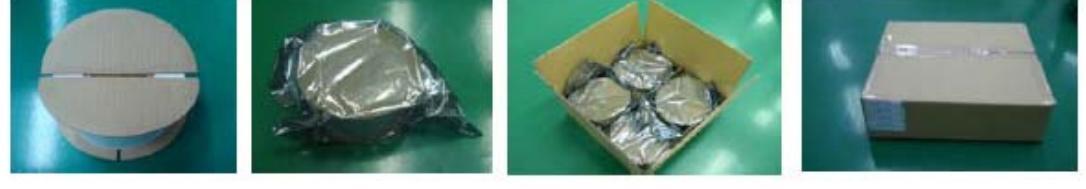

| Packaging picture: |  |
| Special requirement: | The box should be fully sealed without any gaps |
