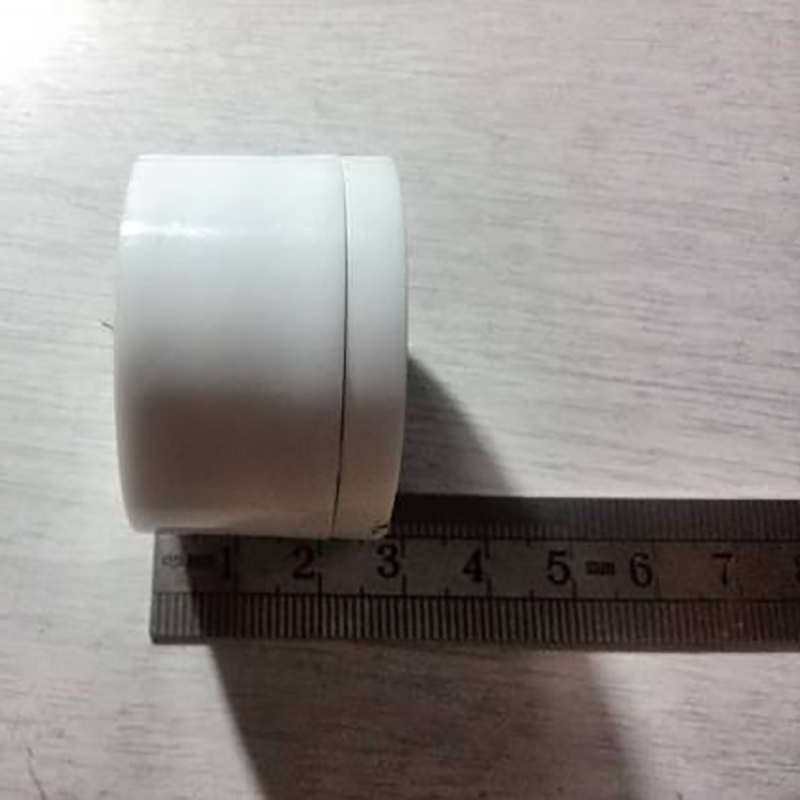

TAG-920Φ40 UHF RFID Buried Tag
The RFID underground TAG Tag-920 φ40 is a specially designed underground tag for goods positioning. It features a compact size, resistance to certain pressure and impact, high protection level, and easy installation. It can be conveniently applied to various RFID area positioning management scenarios, especially suitable for storage location management in various types of warehouses, as well as for outdoor road and bridge inspection, cement building management, and other applications.
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Applications
- Recommended Products
Overview
Specification parameters
| Model | The TAG - 920 Φ 40 |
| Frequency range | 860~960MHZ |
| Chip capacity | EPC 96bit; User 512bit; |
| Reading distance | Over 1 meter (depending on the performance of the reader and the size of the antenna gain) |
| Chip | Alien H3 or IMPINJ chip |
| Chip fixation method | Epoxy resin black glue 0.5MM dispensing |
| Read-write protocol | EPC Class1 Gen2; ISO18000-6C |
| Chip lifespan | It can be erased and written 100,000 times |
| Function | Read/Write |
| Operating temperature/humidity | -20℃ to +75℃ |
| Storage temperature/humidity | -20℃ to +95℃ |
| Label color | white |
| Label material | Internal PCB ultra-high frequency anti-metal tag + iron sheet + PP shell (material replaceable) |
| Stress resistance | It can withstand the pressure passed by ordinary forklifts. |
| Size | Diameter: 40MM, height: 25MM |
| Installation method | A 40mm hole with a depth of 25MM is drilled by a drilling machine. Just place the wide side of the label upwards. |
Applications
RFID warehouse location positioning management.
Outdoor road and bridge inspection and management.
Cement building management.
