FU-808CL / 4G+BD+UWB fusion positioning vehicle tag
FU-808CL / 4G+BD+UWB fusion positioning vehicle-mounted tag, with built-in 4G Cat.1 data card, meets the requirements of outdoor 4G communication BD and GPS positioning, as well as UWB positioning in tunnels. UWB can achieve sub-meter positioning with high anti-interference. The external communication indicator and power on/off button are equipped with a 5000mAh rechargeable lithium manganate battery. The overall IP67 protection level meets the requirements for use in harsh indoor and outdoor environments. Ensure the real-time positioning of vehicles or items and provide activity trajectory traceability for value targets.
- Overview
- Specifications
- Product structure
- Warranty Service Terms
- Recommended Products
Overview
Typical applications
Coal, electricity and chemical industry
2. Warehousing and logistics
3. Tunnel positioning
Main features
4. Supports 4G+BD+GPS+UWB integrated positioning
5. UWB achieves sub-meter positioning with high anti-interference capability
6. IP67 protection grade
7. Charging via M12 aviation interface
8. Supports communication indication and power on/off
Specifications
| Basic parameter specification table | |
| Weight | No more than 280g |
| Size | 150mm*85mm*35mm |
| Protection | IP67 |
| Continuous working time | Max70 days (1Hz positioning frequency) |
| Positioning frequency | Adjustable from 0.1 to 20Hz |
| Battery type | 5000 mah / 3.7 V |
| Charge and discharge cycles | More than 300 times |
| Charging method | M12-4-pin aviation plug, fully charged in ≥ 2 hours |
| Installation method | The positioning holes on all four sides are fixed |
| Working environment | Temperature: -10℃ to 60℃ Average relative humidity: ≤95% (at 25℃) |
| Electrical appliance characteristics | Operating voltage: DC3.3V Operating frequency: 4GHz Radio frequency bandwidth: 500MHz |
| Battery characteristics | |
| Battery cell information | 955565/5000mAh/3.7V |
| Charging limiting voltage | 4.20v±0.02v |
| Nominal voltage | 3.70v |
| Discharge cut-off voltage | 3.0v |
| Open-circuit voltage | 3.80-4.0v |
| Internal resistance of the battery | ≤260mΩ |
| Nominal capacity | 5000mA |
| Standard charging current | 0.2C |
| Maximum charging current | 0.5C |
| Standard discharge current | 0.2C |
| Maximum discharge current | 1.0C |
| Working temperature | Charging temperature: 0℃ to 45℃Discharge temperature: -20℃ to 60℃ |
| Storage temperature | -20℃～45℃ |
Product structure
1. Structural dimensions:

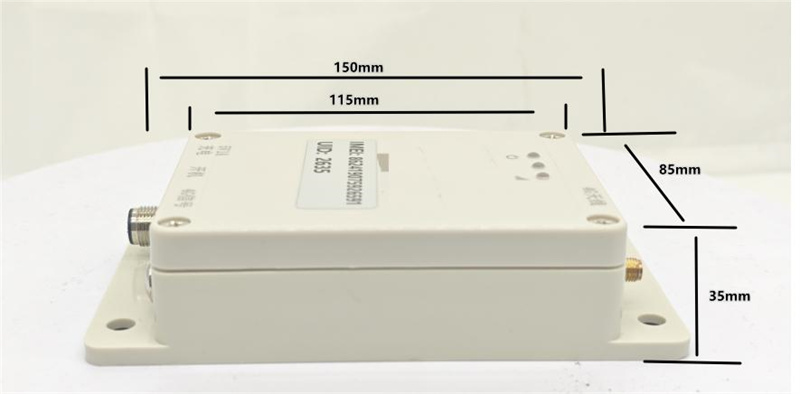

Dimensions: 150*85*35mm

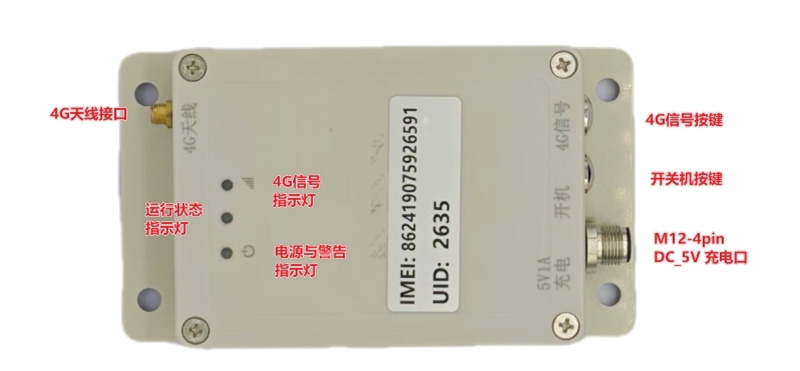

2. Interface Description:
M12-4-pin male charging port:
 |
M12-4pin male connector connection1 / 2 :DC5v3 / 4 :GND |
Power button: Press and hold for 3 seconds to power on, and press and hold for 10 seconds to power off
4G signal indication: Press briefly once to show whether there is a 4G signal.
3. Accessories
| NO | Name | Quantity | Remarks |
| 1 | The main body of the vehicle label | 1 | |
| 2 | Charging cable | 1 | The USB to M12-4-pin charging cable is 1 meter in length |
| 3 | 4G antenna | 1 | Female connector at end A and USB at end B |

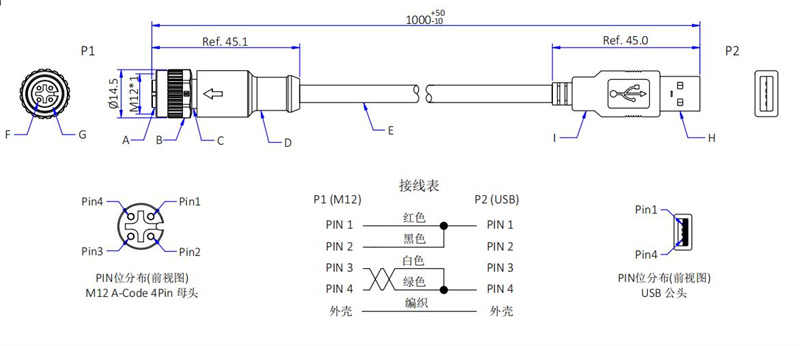

Charging cable specification:
