Overview
◆ Ideal for short-range singulation of individual UHF tags
◆ Near-field design penetrates liquids and most metals
◆ Perfect for use with very small tag inlays featuring near field antennas
◆ Small size: 100 mm x 40 mm x 1.6 mm

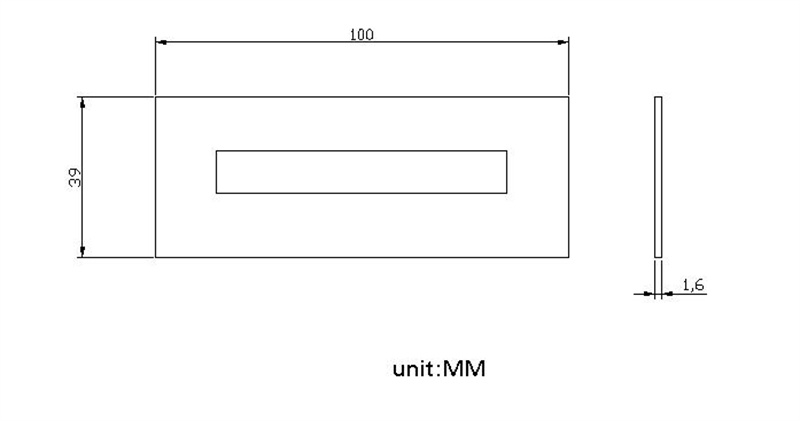

DIMENSIONS

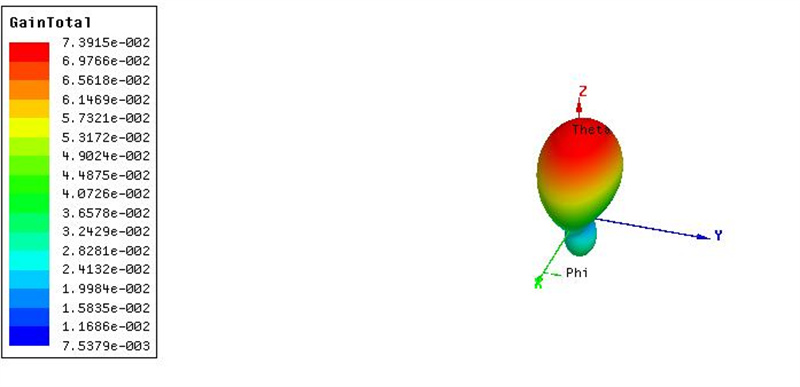

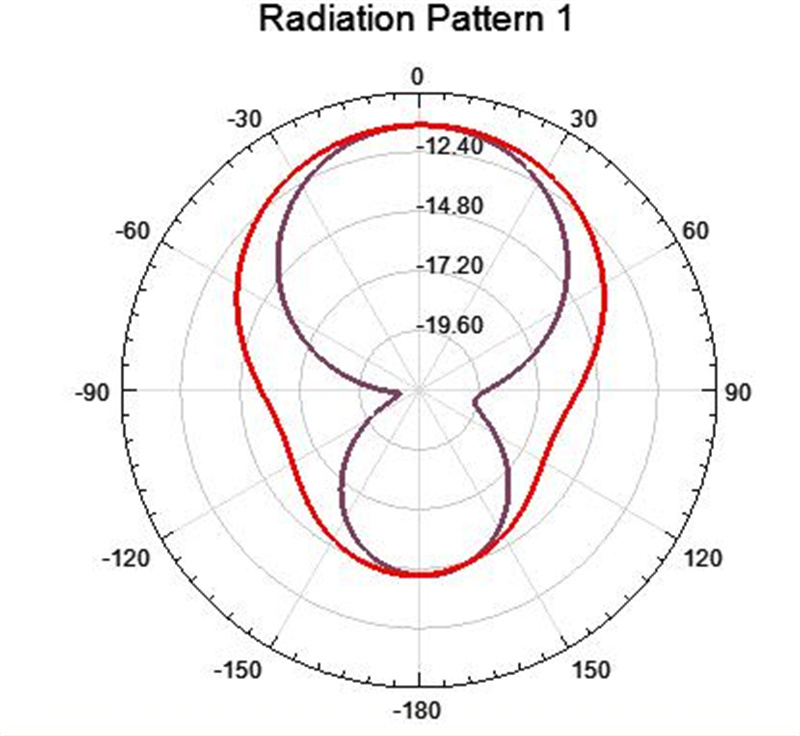

Radiation pattern
Specifications
| NO | Min | Typ | Max | Unit | |
| 1 | Part Number | T30100N | Each | ||
| 2 | Type | Microstrip antenna | |||
| 3 | Operating Frequency | 840MHz-960MHZ | MHz | ||
| 4 | Polarization | Linear | |||
| 5 | Peak Gain | -10 | dbic | ||
| 6 | Beamwidth | >200 | MHz | ||
| 7 | VSWR | 1.5:1 | MHz | ||
