FU-DA-03 UHF RFID Book Inventory Trolley
FU-DA-03NW cart-type inventory vehicle, also known as mobile librarian workstation, is a book vehicle that adds RFID intelligent equipment to the ordinary file vehicle for file management.
- Overview
- Specifications
- Precautions and environmental protection instructions
- Recommended Products
Overview
Characteristics
It has the functions of data search, data wrong frame check, frame and save collection results;
Using fashion shape design, medical mute scroll wheel, suitable for different bookshelf passage;
Front large-capacity book frame, can carry various types of books, convenient librarian shelves;
Modular design is adopted, and the main functional modules of the equipment are easy to install and replace;
Bluetooth antenna handheld design, can be convenient inventory of elevated books, no need to deal with a large number of books off the shelf;
Using Android industrial touch all-in-one machine, simple and fast operation, rapid response, friendly interface, real-time dynamic networking;
Complete fast information interaction, with good expansion performance and strong security;
The system has sufficient anti-attack ability and quick reply ability;
With scalability and maintainability, the system equipment can be upgraded through simple hardware conversion;
Application
Intelligent Brain Log Management
book management
Archives management
Asset Management
Foreword
FU-DA-03NW cart-type inventory vehicle, also known as mobile librarian workstation, is a book vehicle that adds RFID intelligent equipment to the ordinary file vehicle for file management.
FU-DA-03NW cart-type inventory vehicle is suitable for archives and libraries. It is a movable and embedded ultra-high frequency RFID technology to scan and count RFID file signals, and can realize real-time online operation of integrated database. It can collect and transmit information through scanning the frame marks and layer marks on the file frame and the file labels, which can help the staff in the library to efficiently complete the frame routing, special intelligent equipment for searching and counting and for circulating data, especially when the staff in the library are searching for lost data and counting books, plays a great role in realizing graphical, accurate, real-time and efficient management of the collection.

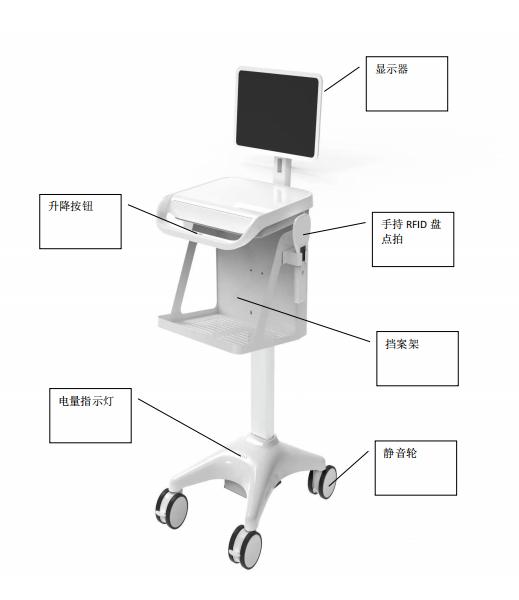

In terms of structure, the FU-DA-03NW inventory vehicle mainly includes main column, base, universal roller, hanging file rack, RFID intelligent console (or console), touch screen industrial control computer, portable Bluetooth RFID handset, portable rechargeable lithium battery and AC power connector.

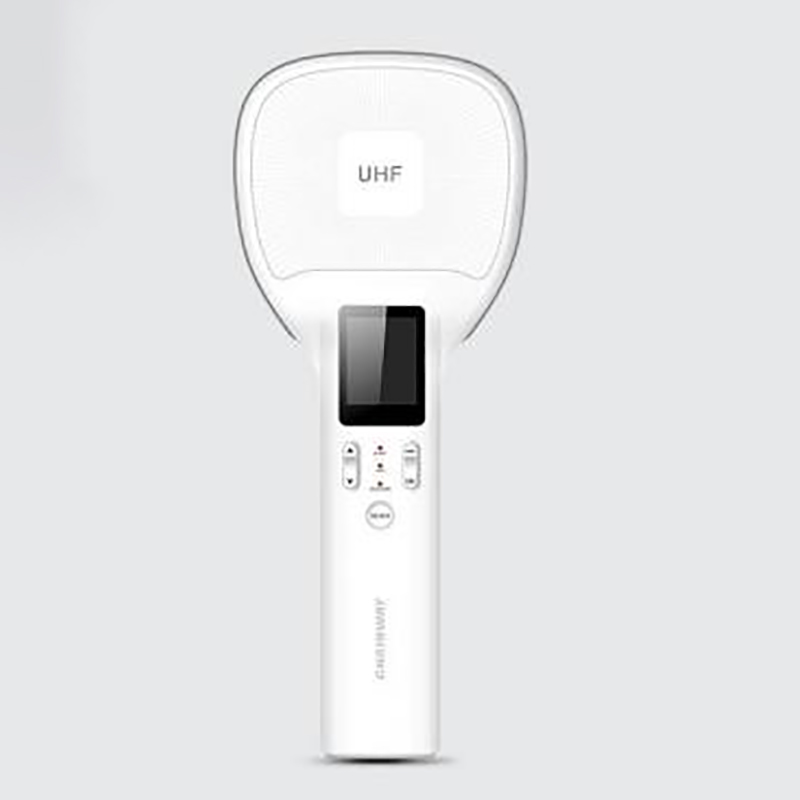

R-2 handheld RFID reader adopts UHF RFID technology, embedded with the world's outstanding RFID core module, combined with wireless communication technology, can realize the identification and tracking of single or multiple products, and then improve the function of enterprise information management system in the traditional sense, and realize the effective management of single product or multiple products.
Specifications
Electrical characteristics of equipment
| Condition | Parameters | Description |
| Communication mode andExtended Interface | Communication Interface | WIFI,BlueTeeth (Bluetooth),RJ45 |
| Power | Operating voltage | AC 100V-240V 50Hz~60Hz |
| Overall power | 200W | |
| Battery capacity | 18Ah | |
| Battery voltage | 12V | |
| RF Function | Label Protocol | ISO18000-6C |
| Operating frequency | 860~960MHz, customer optional |
Mechanical characteristics and use environment
| Condition | Parameters | Description |
| Shape and structure | Dimensions | 600(L)mm×475(W)mm×1166-1516(H)mm |
| Body weight | 20KG | |
| Car body load-bearing | 110KG | |
| Material | Using aluminum alloy, steel material, modified engineering plastic | |
| Color | White/silver (can be customized according to user needs) | |
| Use of the environment | Working temperature | -10 ℃ ~ 50 ℃ |
| Storage temperature | -20 ℃ ~ 60 ℃ | |
| Relative humidity | 5%-80% non-condensing |
Accessories-Display Parameters
| Parameters | Description |
| CPU | RK3399 quad core cortex A53 + dual core cortex A72 |
| RAM | 2GB optional 4GB |
| Memory | 16GB Optional 32GB |
| Operating System | Android 12 |
| Screen size | 24" |
| Screen Type | IPS |
| Resolution | 1920*1080 |
| number of colors | 16.7M Colors |
| color gamut | sRGB 99% |
| Screen Ratio | 16:9 |
| Touch Type | In cell touch |
| Touch interface | HID-USB |
| WiFi | 802.11b/g/n/a/ac |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | 100M/1000M |
| Microphone input | Supports external 3.5mm microphone input |
| SIM Slot | Optional 4G module |
| USB | Multi-function interface: default Type-c full function, when HDMI IN is connected, Optional for external devices with touch function |
| HDMI IN | Support 1920*1080 @ 60hz |
| Power jack | DC power input |
| RJ45 | Ethernet interface |
| Headphones | 3.5mm stereo headphone output |
| Product color | White/Black |
| VESA | 100x100mm |
| Key | Power/Volume +/Volume- |
| gravity sensor | Support 90 ° |
| NFC | Optional, 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | Optional external USB camera (5 million with af) |
| OSD Language | Multi-language OSD operation in English and Chinese |
| Certification | 3C/SRRC |
| Storage temperature | -20 ℃ -60 ℃ |
| Working temperature | 0℃---45℃ 10~90%RH |
| Instructions for use | Standard |
| Power Adapter | 12V/4A |
Accessories-Handheld RFID Device Parameters
| Condition | Parameters | Description | Remarks | ||||
| physical parameters | Overall size | 282 x 117.5 x 32mm | |||||
| Weight of whole machine | 334g (with battery) | ||||||
| Whole machine color | White | ||||||
| Material | Injection Molding | ||||||
| Display | 1.77 inches, 128 x 160 | ||||||
| Battery capacity | Battery specifications: 5200mAhStandby time> 70 hours (Bluetooth connection status) Working time is about 6 hours (UHF group reading) Charging time 3-4 hours (using standard power adapter and data cable) | ||||||
| Communication Interface | Micro-USB | ||||||
| Keyboard | PWR key (side), up, down, back, OK, SCAN key (front) | ||||||
| Buzzer | One, support. | ||||||
| Indicator light | 3, Power,Work,Bluetooth | ||||||
| Use of the environment | Working temperature | -20 ℃ ~ +50 ℃ | |||||
| Storage temperature | -40 ℃ ~ +70 ℃ | ||||||
| Ambient humidity | 5% RH ~ 95% RH (no condensation) | ||||||
| Drop specification | Within the operating temperature range, 6 surfaces can withstand multiple (at least 20) drops from a height of 1.5 meters to the concrete floor. | ||||||
| Rolling test | Rolling 0.5 meters for 1000 consecutive times, 6 surface contact surfaces still run stably after rolling, reaching IEC rolling specifications | ||||||
| Electrostatic Discharge | ± 15KV air discharge, ± 8KV contact discharge | ||||||
| Performance parameters | MCU | Type: Cortex-M3; Frequency: 72MHz | |||||
| Storage capacity | 50000 labels | ||||||
| Bluetooth | Support Bluetooth 4.0 and Bluetooth BLE | ||||||
| Development Environment | SDK | Support Android / IOS | |||||
| Development Language | Java / Objective-C | ||||||
| Development Tools | Android Studio / Xcode | ||||||
| RFID UHF | Engine | CM2000-1, based on Impinj Indy R2000 | |||||
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz | ||||||
| Antenna parameters | Linally polarized antenna (4dBi) | ||||||
| Power | 5W(30dBm, support +5 ~ + 30dBm adjustable) Optional 2W(33dBm, for Latin America, etc.) | ||||||
| card reading distance | > 28 m (indoor);>15 m (outdoor open environment, Impinj MR6 label) | Reading distance and group reading rate are related to the actual environment. | |||||
| Group Read Rate | Up to 900 tags/s | ||||||
| barcode collection | QR code scanning engine | SE2707 | This function is optional | ||||
| Support one-dimensional barcode type | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discre 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc | ||||||
| Support 2D barcode type | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. | ||||||
* Contact us for equipment details and custom equipment.
Product mix
Accessories List
| Name | Quantity |
| FU-DA-03NW RFID mobile inventory vehicle | 1 |
Note: Items that do not belong to the equipment accompanying or subsequent optional items will not be recorded in the list. Please confirm with the sales for specific information.
Precautions and environmental protection instructions
Precautions
In order to use this product safely and effectively, please read the following before use.
● Non-professionals are strictly prohibited to open the shell to prevent product damage.
Warranty Service Terms
1.Warranty Service Scope
● Warranty Products:
To comply with the relevant laws and administrative regulations of the People's Republic of China, this warranty service is a limited warranty applicable only to products sold by Shenzhen Fuwit Technology Co., Ltd. (hereinafter referred to as "Fuwit") or its authorized distributors.
● Warranty period:
From the date of shipment, products that experience malfunctions under normal use within the specified period are eligible for warranty service. Customers requesting warranty services must provide a purchase contract, delivery receipt, the faulty device's SN number, and a description of the issue to prove that the product qualifies for a one-year warranty from the date of shipment.
● Exclusions from Warranty:
a. Failure to provide valid purchase contracts, delivery receipts, or proof of purchase (including altered purchase contracts or receipts, or discrepancies between documents and actual products).
b. Surface damages such as scratches, dents, or depressions.
c. Consumable items like batteries, except in cases where defects result from material or manufacturing issues.
d. Damage caused by accidents, misuse, improper handling, fire, natural disasters, or improper maintenance (including external force damage).
e. Repairs, modifications, or alterations conducted by unauthorized personnel, which may lead to permanent product damage.
2.Description
● This warranty policy grants you specific legal rights, which may vary by country. Other statutory rights under different national laws are not excluded, limited, or suspended by this policy. Some of the following limitations may not apply to you.
● To the extent permitted by law, this warranty policy is exclusive and supersedes all other express, implied, or statutory warranties, including but not limited to warranties of merchantability, fitness for a particular purpose, or any other condition under statutory laws. Furthermore, Fuwit shall not be liable for any incidental, special, indirect, or consequential damages arising from the use, misuse, inability to use, or defects of the product.
● Fuwit reserves the right to deny warranty claims for products or services obtained and/or used in violation of any national laws.
● Products purchased through auction websites or from non-authorized distributors of Fuwit are not covered under this warranty service.
● If the product is determined to fall outside the warranty scope after inspection, Fuwit will proceed with repairs only after obtaining customer approval and charging a quoted fee. Repaired components are covered by a 90-day warranty for the same functionality failure.
● Fuwit reserves the right to repair or replace the product or software. Repairs will be performed using original manufacturer parts following standard procedures. If the product cannot be repaired, it may be replaced with a module or an entire unit. If repair parts are out of stock or the product has been discontinued, Fuwit will provide an equivalent replacement product based on depreciation value during the warranty period or offer an upgrade option with an additional charge upon customer agreement. Products outside the warranty period will not be eligible for repair services. Any replaced defective parts will become the property of Fuwit.
3. Precautions
● Before requesting warranty service, customers should back up all personal and important data and provide only the faulty product for repair. During the repair process, all data stored in the device may be lost and cannot be recovered. Fuwit does not provide data backup services and does not guarantee that system settings will remain unchanged before and after repair.
