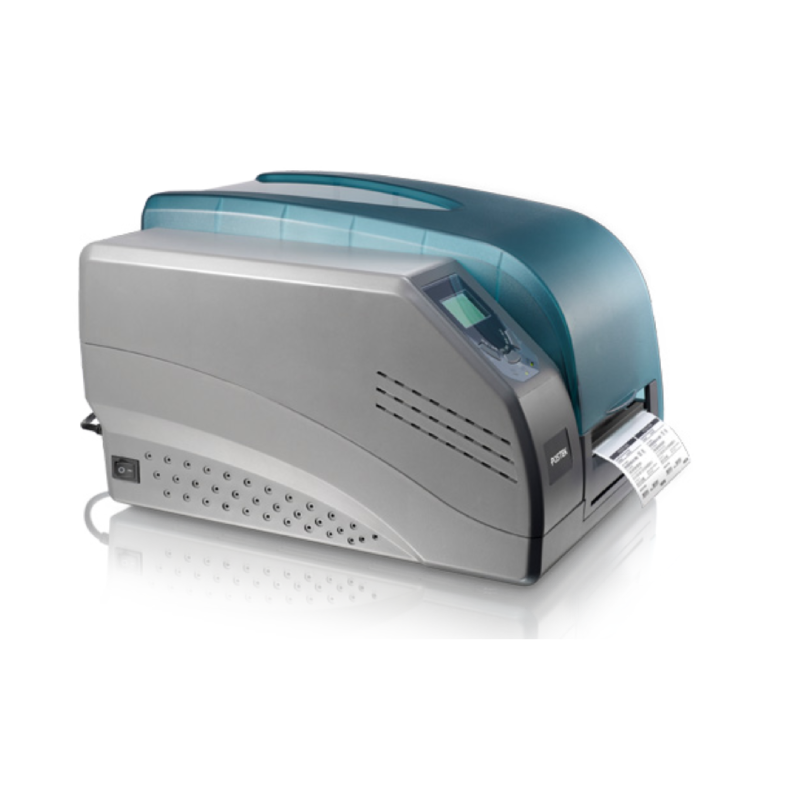

L200e/L300e RFID industrial barcode printer
Combining advanced RFID technology and integrating them into a compact body design, we have launched this ingenious RFID tag printer. Despite its small size, it is highly capable. Continuing our relentless pursuit of excellence, equipped with the original and advanced RFID antenna technology, this solid and powerful device continuously and stably performs tasks from morning till night, providing a more efficient and accurate printing solution and significantly enhancing your operational efficiency in a short period of time. This time, we have taken another beautiful step. From now on, this series of RFID models will offer you an even more outstanding printing experience.
- Overview
- Specifications
- Recommended Products
Overview
With precise positioning, it can read and write labels with an inlay pitch of 12 millimeters, and is currently the printer on the market that supports reading and writing labels with the smallest inlay pitch.
The antenna design of printing first and then reading and writing verification tags is adopted, achieving a 100% detection rate of defective tags and ensuring the accuracy of business management.

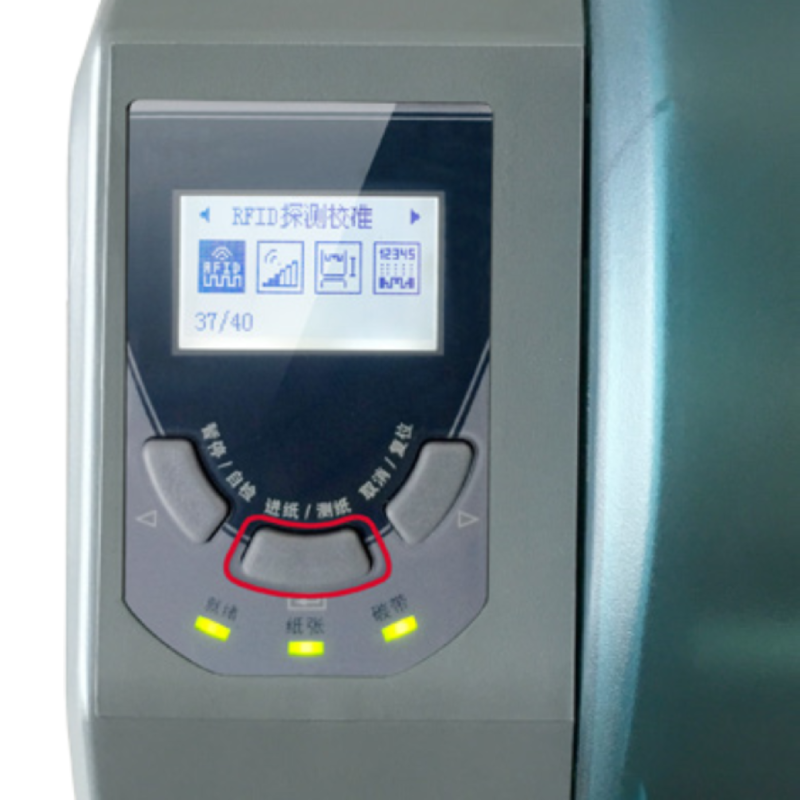

The one-click tag antenna positioning and the first tag printing function are simple to operate, efficient and convenient, and the usage cost is reduced to a lower level.
The industrial-grade left-right body structure and the patented "convection heat dissipation design" enable 7× 24-hour continuous printing for rapid heat dissipation, providing a more outstanding printing experience from morning till night.
The key transmission components are designed with metal bearings, exquisitely crafted to ensure continuous improvement. This protects the interior of your printer from long-term friction and deformation, resulting in a stable and durable product.
Specifications
| Model | L200e | L300e |
| Printing method | Heat transfer printing | |
| Resolution | 203 dpi | 300 dpi |
| Maximum printing speed | 6 ips (153 mm/s) | 6 ips(153 mm/s) |
| Maximum print width | 4.25"(108mm) | 4.17"(106mm) |
| Maximum print length | 315" (8000 mm) | 157" (4000 mm) |
| Label roll size | Width: 4.49 ° largest (114 mm), minimum 0.98 "(25 mm) diameter: maximum 6" (152 mm), inside diameter: minimum 1 "(25.4 mm) | |
| Carbon ribbon roll size | Most outside diameter: 2.75 "(70 mm), inside diameter: 1" (25.4 mm) maximum width: 4.33 "(110 mm), the maximum length: 984 '(300 m) | |
| RFID function | Integrated UHF reader/encoder (EPC Class 1 Gen2/ISO 18000-6C) | |
| Memory | 8 MB FLASH ROM, 16 MB SDRAM | |
| Label thickness | 0.08-0.20mm(0.003"-0.008")Including the thickness of the backing paper | |
| Paper detection method | Reflective (movable)/ penetrating | |
| Font | It comes with five built-in dot matrix fonts and 24-dot matrix Chinese Song typeface, and supports downloading TrueType fonts | |
| Barcode | Code 39, Code 93, Code 128/subset A, B, C, Codabar, Interleave 2of5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128 one-dimensional barcode MaxiCode, PDF417, Data matrix, QR Code and other two-dimensional barcodes | |
| Interface type | RS-232 serial port, 10/100M-bit Ethernet port, USB DEVICE 2.0 interface, USB HOST interface, Centronics parallel port (optional) | |
| Power adapter | Input: AC 100-240V, 50/60Hz Output: DC 24V, 4.0A | |
| Weight | 3.5 kgs | |
| Body size | Width 256mm x depth 329mm x height 200mm | |
| Working environment | Temperature :0℃ to 40℃(32°℉ to +104°℉) Relative humidity: 5% to 85%, no condensation | |
| Storage environment | Temperature :-30℃ to 60℃(-22°F to +140° F) Relative humidity: 5% to 85%, no condensation | |
| Optional attachments | Paper stripper, paper cutter,Centronics parallel port, external paper rack, external label rewind device, paper guide sheet additional cap (the narrowest paper guide width is 8mm) | |
