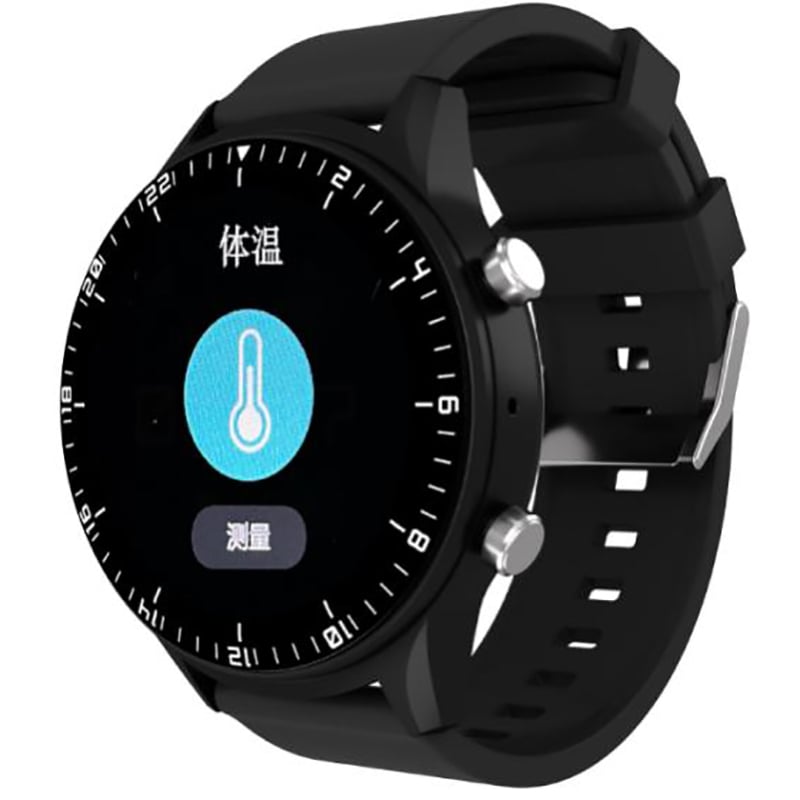

FU-W300GU UWB+4G Cat.1+BLE+GPS Beidou touch screen positioning watch
The FU-W300GU is a watch with UWB+4G Cat.1+BLE+GPS Beidou touch screen positioning, and it is equipped with a 3-year iot card. The cloud platform, mobile APP and wechat mini-program can be used for free (neutral platform, Logo and name can be modified). Free access to third-party platforms.
The watch is IP67 waterproof, explosion-proof, elegant and sturdy, suitable for all kinds of people and different scenarios. There are versions such as 5G Redcap, 4G Cat.1, LoRa, LoRaWAN, UWB and single Bluetooth.
- Overview
- Specifications
- List of Attachments
- Warranty Service Terms
- Recommended Products
Overview
Features
Communication and Connection
· Multi-mode communication: Supports 4G Cat.1 full network compatibility (including VPN private network), UWB (Ultra-Wideband), Bluetooth BLE 5.1, GPS/ Beidou (supporting Beidou-3), and WiFi positioning
· iot card: Built-in 3-year data card
· UWB high-precision positioning
· W300GU: Supports UWB beacon positioning and ranging (CH5/CH9) positioning capability
· Multi-system integrated positioning: GPS/ Beidou + WiFi + base station + Bluetooth BLE
· Bluetooth AOA positioning: Accuracy can reach the 1-meter level
· UWB ranging alarm: In conjunction with G908GU, it achieves precise distance alarm
· Seamless switching between indoor and outdoor: Supports Bluetooth beacons and WiFi hotspot assistance for positioning
Battery and Power Consumption
· Super large battery: 580mAh
· Ultra-low power consumption:
The bottom current of the system is less than 0.1mA
The average current in long connection mode is 1.1mA (UWB off)
· Super long standby time
· Normal use for 5 to 7 days (report every 10 minutes)
The short connection mode can last up to 25 days
The device has been in standby mode for more than 30 days after being picked up
Health monitoring
· Monitoring function:
Blood oxygen, ambulatory heart rate, HRV, body temperature, blood pressure, step count, sleep
· Support for emotion, stress and fatigue analysis (third-party platform support required)
· Wearing detection: Report the on-off status. When not worn, enter ultra-low power consumption mode
· High-altitude drop detection: Equipped with a drop algorithm and supports alarm
Application
Care for the elderly and children
· Management of enterprise employees and field staff
· Smart Construction Site/Industrial Safety
· Health/medical/care applications
· Industrial automation
Ultra-low power consumption, large battery, and extremely long standby time
a) The system architecture is a low-power Cortex M4 main control processor + ultra-low-power 4G Cat.1 bis. Ensure that the bottom current of the system is less than 0.1mA
b) Ultra-low power 4G Cat.1 bis module (Cortex M3 architecture, 4M+2M memory, even lower power consumption with smaller memory), the bottom current of the Cat.1 bis module is less than 10uA
Long connection mode (4-minute heartbeat) : Average current 1.1mA (UWB non-working mode). It also features an ultra-long standby short connection mode (with normal usage lasting about 25 days).
c)580mAh large-capacity battery, ultra-long standby time
d)4G full network compatibility, supporting VPN private network.
2. Indoor and outdoor integrated positioning, high-precision positioning
a) Supports GPS/ Beidou +wifi+ base station indoor and outdoor positioning, and supports Beidou-3
b) The watch is equipped with low-power Bluetooth BLE5.1 and supports scanning Bluetooth indoor positioning with a positioning accuracy of 3 to 5 meters. Supports Bluetooth AOA high-precision positioning.
c)W300GU: Low-power single-chip UWB MK8000 CH5: Enables UWB beacon (no wiring required) mode positioning and ranging; It can be used in conjunction with G908GU to achieve distance measurement alarm
d) It also supports the open UWB chip SDK, facilitating the integration with third-party UWB base stations and systems.
3. High-precision health sensors for real-time health detection and reporting

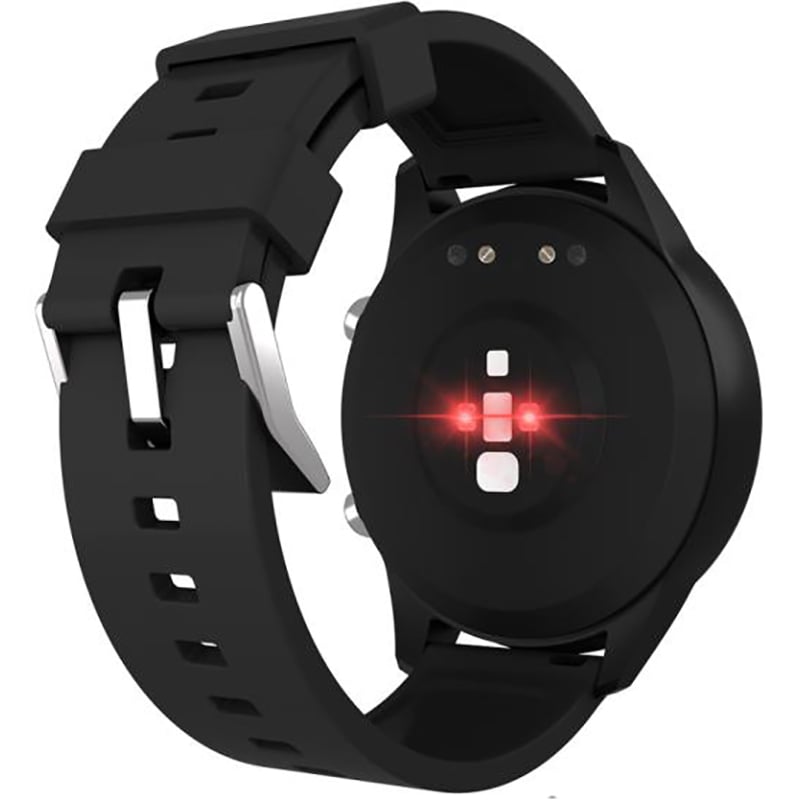

a) Goodix GH3011 high-precision sensor. Support regular measurement and reporting of blood oxygen, dynamic heart rate, HRV, body temperature, blood pressure and step-counting health data.
b) Support for index and data analysis of mood, fatigue, stress, emotion, etc. (Third-party platforms require charging)
c) The bracelet has a wearing detection function (messages are reported to the platform and APP both when worn and removed), and when not worn, it enters ultra-low power consumption mode (standby for more than 30 days).
d) It has a high-altitude drop algorithm.
Specifications
Electrical characteristics of equipment
| Conditions | Parameter | Explanation |
| Platform solution | Main control chip | Low-power Bluetooth BLE5.1 (supports online upgrade, Bluetooth broadcasting, scanning beacons, connection to Bluetooth hosts and peripherals) |
| Memory | 256KB SRAM + 5MB Flash (supports resume storage from breakpoint) | |
| W300GU | Product configuration | 4G (or LoRa-W300LU) +UWB (Hanwei MK8000) +GPS and Beidou +BLE5.0+ health monitoring |
| UWB frequency band | Default: CH5, CH9 (CH2 is also supported) (MK8000, no FEM/PA) | |
| Cooperation mode | By default, it supports our company's UWB distance measurement alarm G908GU (for distance measurement alarm). | |
| Positioning performance | Positioning method | 2. Open the MK8000-UWB SOC chip SDK to facilitate customers' independent development of the MK8000 UWB air protocol and connection with third-party UWB base stations or UWB beacons. (Serial communication between MK8000 and the main control MCU of the device |
| Satellite positioning accuracy | GPS and Beidou +Wifi+LBS+ low-power Bluetooth BLE | |
| Wifi positioning accuracy | Open environment 5 to 20 meters (at least the satellite positioning equipment can correspond to 1/4 of the unshielded sky) | |
| Bluetooth positioning accuracy | Depending on the density of the surrounding WiFi, it is generally 10 to 50 meters | |
| Wearing detection | Depending on the deployment density of Bluetooth beacons, point, surface and three-dimensional positioning can be achieved | |
| Human-computer interaction | Display screen | If the beacon deployment density is 6-8 meters, the accuracy is 1-3 meters; if combined with an AOA Bluetooth gateway, it can reach the 1-meter level. |
| Touch screen | It is equipped with a high-precision built-in acceleration sensor and heart rate sensor, and enters ultra-low power consumption mode when not worn | |
| Key press | 1.3-inch circular 240X240 dot matrix high-definition color TFT display | |
| Motor | Capacitive touch | |
| Electrical parameters | Built-in battery | Two physical buttons |
| Charging interface | have | |
| Charger | Li-ion polymer high-voltage battery, 580mAh / 3.7V/charging: 2 hours | |
| Working hours | Magnetic USB interface charging cable (standard configuration | |
| Function | Electronic fence | 5V / 1A (optional) |
| Historical trajectory | Standby for more than 10 days; Normal use: 5-7 days (default location reporting every 10 minutes) | |
| Alarm function | The platform supports circles, custom areas, and administrative areas. The mobile client supports circular fences | |
| Platform functions | Supports historical data query for over 100 days | |
| Health characteristics | Blood oxygen | SOS alarm, alarm inside the fence, alarm outside the fence, alarm for entering and exiting the fence, low battery alarm, shutdown alarm, etc |
| Body temperature | The platform supports functions such as users changing logos and names, and hierarchical management | |
| Dynamic heart rate | PPG reflective blood oxygen (red light + infrared light) | |
| Blood pressure | High-precision temperature measurement module (temperature measurement accuracy of ± 0.2 degrees) | |
| HRV(RRI) | Dual-color mode + Goodix 3011 (3018) sensor, supporting high-precision dynamic heart rate | |
| Step counting | Support (Conversion based on heart rate data, inaccurate, use with caution) | |
| Sleep | For emotional and psychological applications, etc. (Supporting third-party emotional and stress algorithms; or customizing SDK extraction) | |
| Other features | Resume from breakpoint | Support (Reset at midnight every day, report regularly) |
| Accelerometer | Support (Support regular reporting of deep sleep, light sleep and awake states) | |
| Geomagnetism (compass | Support (In locations without signals, location and health data will be saved and concentrated for transmission once a signal is available) | |
| Wearing detection | with | |
| Message sent out | Reserved design (not included by default) | |
| Payment function | Support (Both wearing and removing the bracelet will have messages reported to the platform and APP) |
Mechanical properties and usage environment
| Conditions | Parameter | Explanation |
| External specifications | Size | 47 X 56 X 13 mm |
| Weight | 51g | |
| Color | Black body + standard black silicone strap (other straps are optional) | |
| Material | Main body: PC+ABS; Watch strap: Silicone | |
| Strap specification | Standard configuration: 22mm standard size, black silicone strap | |
| Usage environment | Working temperature | Optional: Red silicone watch strap; Watch strap with RFID tag; Velcro watch strap Magnetic anti-disassembly watch strap (red or white, black inside) |
| Storage temperature | -10°C ~ 60°C | |
| Working humidity | -30°C ~ 80°C | |
| Waterproof and dustproof grade | -10% ~ 85% HR |
List of Attachments
| Name | Quantity |
| Equipment body | 1 |
| Charging cable | 1 |
| Watch strap | 1 |
| Certificate of Conformity (Warranty Card | 1 |
| Instruction Manual | 1 |
Note: Items not included with the equipment or subsequent optional items will not be recorded in the list. For specific information, please confirm with the salesperson.
Warranty Service Terms
Scope of warranty service
● Warranty products:
In order to comply with the relevant laws and regulations of the People's Republic of China and administrative rules, this warranty service is a limited warranty and is only applicable to products sold by Shenzhen Quanshunhong Technology Co., LTD. (hereinafter referred to as "Quanshunhong") or those sold by authorized dealers.
● Warranty period:
The product is eligible for warranty service within the following period from the date of purchase to the date of shipment if it malfunctions under normal use. If the customer has a need for warranty service, they must provide the purchase contract, delivery note, SN number of the faulty machine, and a description of the fault problem to prove that the product is covered by a one-year warranty from the date of purchase to the date of shipment.
● Non-warranty coverage:
a. Unable to provide valid purchase contracts, receipt documents or proof (including alterations in the contents of purchase contracts and receipt documents, or inconsistency with the actual products, etc.)
b. Surface damage, such as scratches, dents or depressions.
c. Batteries and other consumables, except for those damaged due to material or process defects.
d. Damage caused by accident, abuse, misuse, fire or other natural disasters, or due to improper use or unreasonable self-maintenance (including damage caused by external force)
e. Maintenance, modification or alteration carried out by non-authorized maintenance personnel of Quanshunhong may cause permanent damage to the product.
Explanation
This warranty provides you with specific legal rights, but such rights may vary due to different regulations in various countries. Moreover, other legal rights stipulated by the laws of each country are not excluded, restricted or suspended by Quanshunhong. Therefore, some of the following restrictions may not apply to you.
To the extent permitted by law, this warranty clause is exclusive and supersedes all other express, implied or statutory warranty conditions, including any liability arising from a particular purpose, statutory requirement or any other circumstances, including but not limited to the merchantability or fitness for a particular purpose of the product. In addition, Quanshunhong shall not be held responsible for any accidental, special, indirect or consequential damages (which may result from use, misuse, inability to use or product defects).
Quanshunhong reserves the right to reject warranty applications for products or services obtained and/or used in violation of the laws of any country.
Products sold through auction websites or other non-Quanshunhong or non-authorized dealers are not covered by this warranty service.
If the product is found to be outside the warranty coverage after inspection, Quanshunhong will carry out the repair after obtaining the customer's consent and charging the quotation. For the repaired faults, Quanshunhong offers a 90-day warranty for the same functional faults.
Quanshunhong reserves the right to repair or replace the product or software. Quanshunhong will carry out repairs using original factory spare parts in accordance with standard procedures. In cases where repair is impossible, some products are repaired by replacing modules or the entire machine. In the event of a shortage of repair materials or product discontinuation, during the warranty period, an equivalent equivalent product will be provided for replacement after depreciation of the product, or an upgrade will be provided with the customer's consent and a price difference will be charged. Beyond the warranty period, no repair service will be provided. The faulty parts that have been replaced belong to Quanshunhong.
Precautions
Before applying for product warranty, customers should back up all their important personal data in advance and only provide the products that need warranty. During the maintenance process, the data within the product may be lost and cannot be restored. Quanshunhong does not provide data backup and does not guarantee the consistency of relevant Settings before and after the maintenance.
