TAG-915-Tag-01 UHF RFID detectable TD jewelry tamper-proof tag
Widely used in jewelry count display and improve products level. It also used in watches, glasses, clocks etc. security and traceability.
Brand:
ThingMagic（JADAK）
Spu:
M7E-TERA
- Overview
- Physical
- Environment
- Packing Details
- Reference of Graphic Performance
- Reference Pictures
- Recommended Products
Overview
| Model | TAG-915-Tamper-Detection-Jewelry-Tag-01 |
| Frequency Range | 860-960MHz |
| Read and write sensitivity | ≥1.5 M |
| Chip | UCODE G2iL+ |
| Protocol Support | ISO 18000-6C GEN2 Class 1 |
| Personalized Coding | Support Associated with inside and outside code data structure |
| Product Attribute |
Disposable,Anti-counterfeiting, Tamper Detection, Check on Removal, Prevent Heat Transfer, Chemical transfer, Knife transfe. |
| Functionality | (Read/Write ) |
Chip
| Memory Capacity | TID:64-bitEPC:128-bit |
| Operating Mode | Inventory Read or Write |

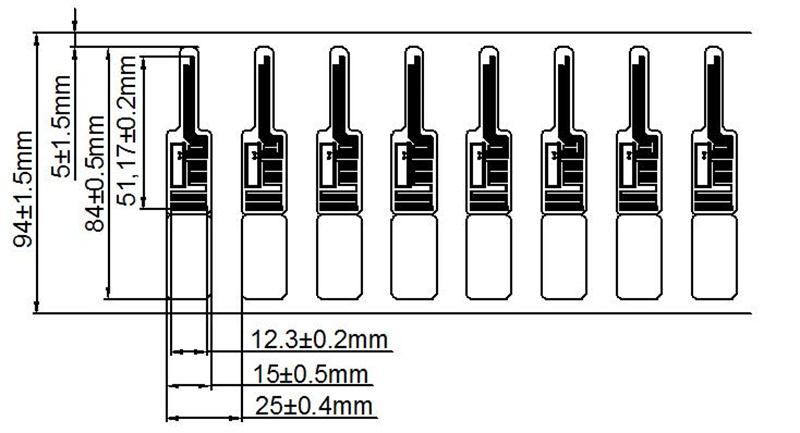

Physical
| Tag Dimension | 51.2X12.3mm(±0.2mm) |
| Antenna Size | 84X15mm(±0.5mm) |
| Product Skip Distance | 25.0±0.4mm |
| Product Margin | 5.0±1.5mm |
| Width of the Tape | 94.0±1.5mm |

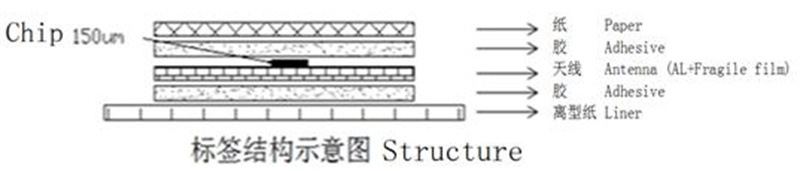

| Material | Polyester Film(PET )+Aluminum Etching+Waterproof Brittle Paper |
Environment
| Data retention | 10年 |
| Read and write the number | 100000次 |
| (Operating Temperature | -25℃～75℃ |
| Storage Temperature | 0℃～25℃ |
| (Relative Humidity | 10% ~ 95%(As Less Reading As More Humidity) |
| Application | It is widely used for counter display of jewelry and ornaments to enhance product grade. It is also used for anti-counterfeiting and traceability supervision in different industries such as watches and eyewear. |

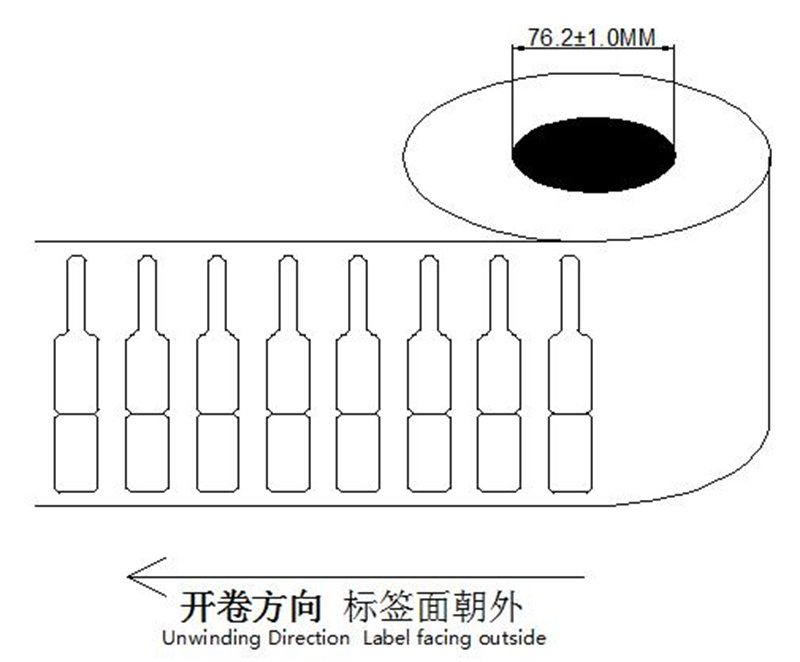

Packing Details
| Core Diameter | 76.2mm(3inch) |
| Volume Number | 1000～3000PCS (According to actual demand) |
| The Roll Direction | The Surface or Printing Facing out or up(According to actual demand) |
| Packing Material | Anti-static PE + Foam stuff + Anti-static Bag |

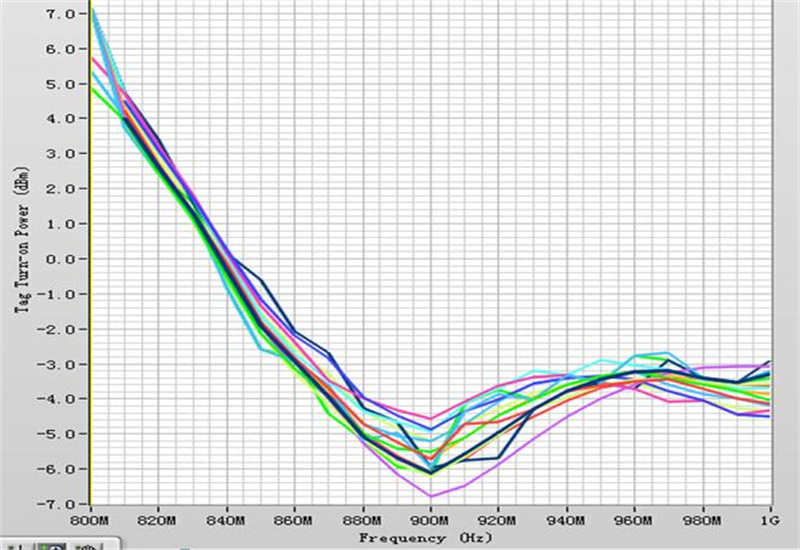

Reference of Graphic Performance
Reference Pictures
