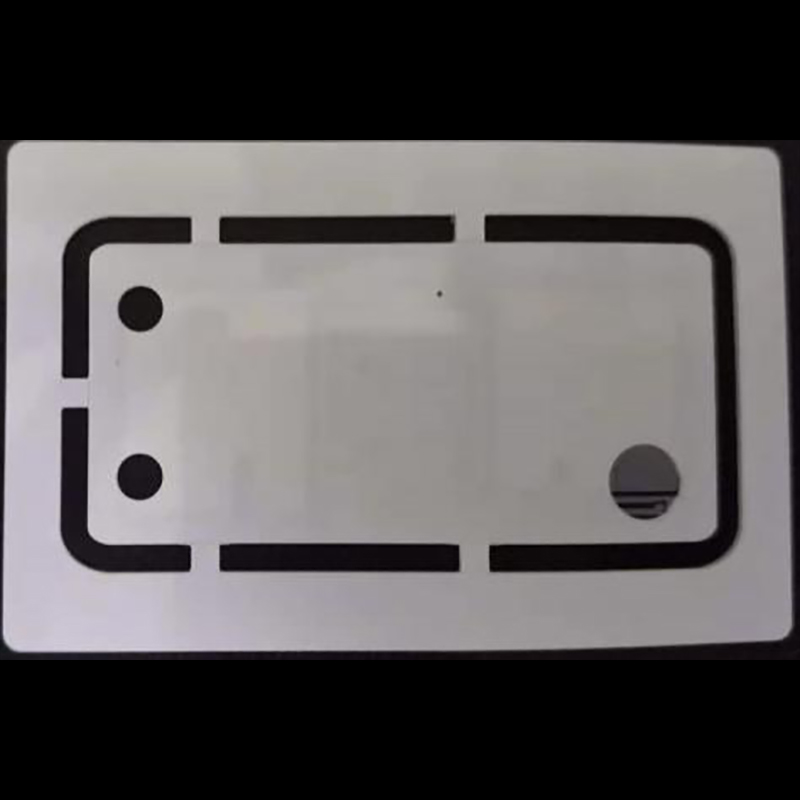

TGA-915-8554 UHF RFID LED Tag
TGA-915-8554 is a battery-free RFID electronic tag with light-emitting (LED) features. It adopts a special chip based on the ultra-high frequency ISO18000-6C protocol and combines LED circuit design. Made of PVC material and processed with high-density composite technology, it meets the application requirements in complex environments such as humidity, high temperature and wear resistance.
- Overview
- Specifications
- Typical applications
- Recommended Products
Overview
This label is equipped with an LED display light. When the label needs to be located, simply select the EPC number of the label, and the LED light on the label will flash, allowing users to find the managed items more quickly and intuitively, achieving the quick operation of "goods finding people". Meanwhile, the battery-free luminous tags do not require battery replacement for long-term use, fully meeting the cost advantage of users' one-time investment for long-term use.
The installation method of RFID light-emitting electronic tags is flexible. When combined with reader devices, the identification operation is simple and convenient, making inventory checking, quick goods search and other asset management much easier.
Specifications
| Functional parameters | |
| Model | TGA-915-8554 |
| Product Name | Ultra-high frequency luminous hard card label |
| Frequency range | 860MHZ~960MHZ |
| Chip capacity | EPC 512bits |
| Reading distance | More than 3 meters (reading distance varies depending on different device scenarios) * Not suitable for metal surfaces |
| Chip | KX2005XB-L/T |
| Read-write protocol | ISO18000-6C |
| Data preservation | Ten years |
| Function | Initialize the EPC Write once (Write) |
| Physical parameters | |
| Product weight | |
| Product materials | Transparent PVC+PET(aluminum etched) |
| Color | white |
| Size | 85.5X54X0.88mm |
| Installation method | |
| Working temperature | -10℃~ +75℃ |
| Other parameters | |
| Printing customization | LOGO printing, color pattern and text printing |
| Size customization | Customize the specifications and dimensions according to different business scenarios |
| Other personalized customization | The surface is printed with barcodes or QR codes, and the EPC code is written simultaneously on the label |
| Application field | Manufacturing parts and components warehousing, warehousing logistics, asset and archive management as well as physical evidence management, inspection management, and refined management of pharmaceuticals/medical care, etc |

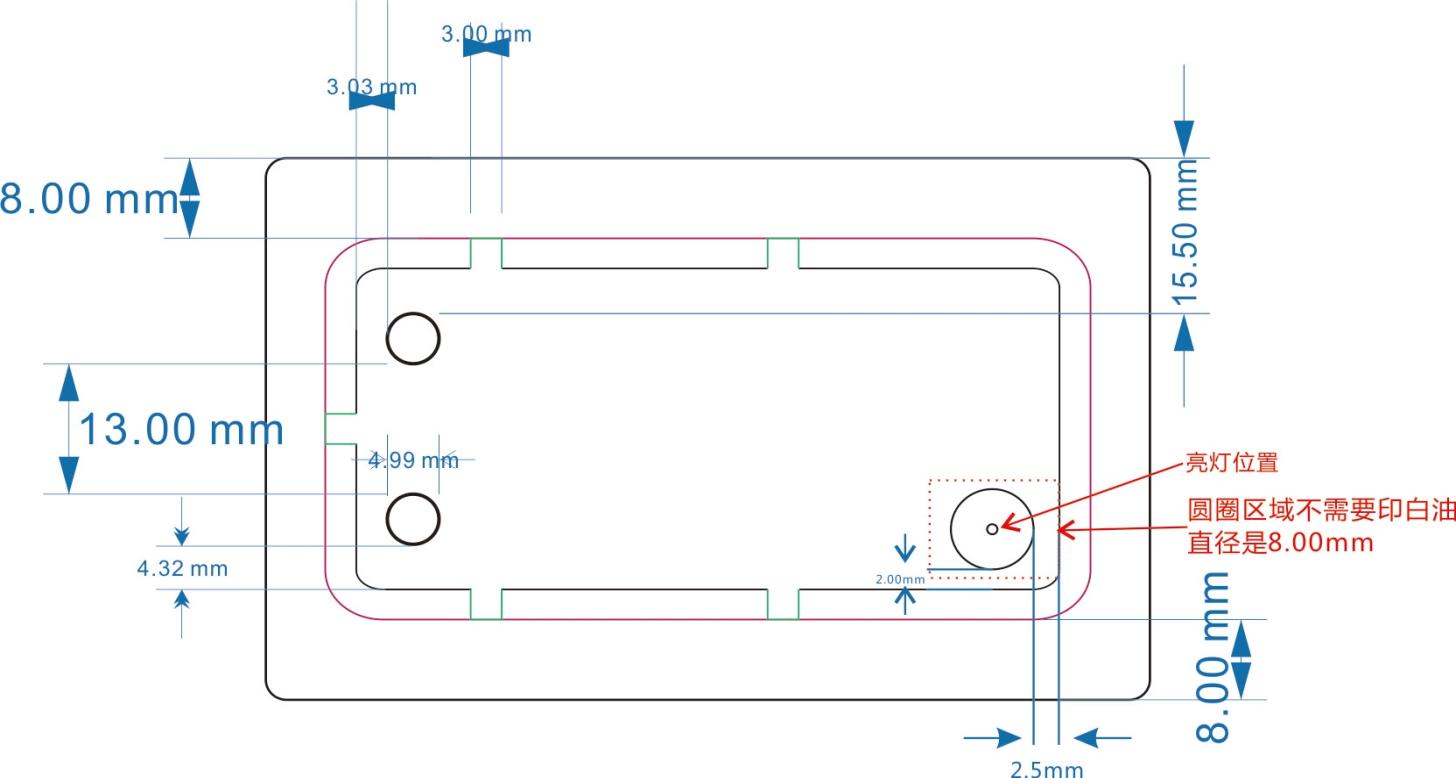

Size:
Typical applications
Warehouse for manufacturing parts and components
Warehousing and logistics
Asset, archive and physical evidence management
Refined management of pharmaceuticals and medical care
Inspection management
