Overview
◆ UHF RFID Reader Circular Polarization Antenna
◆ Microstrip ceramics Antenna with RHCP
◆ Small antenna element
◆ Low Weight, Compact Size
◆ Low interaction with platform
◆ Negligible detuning close to users
◆ Easy application and Save development time

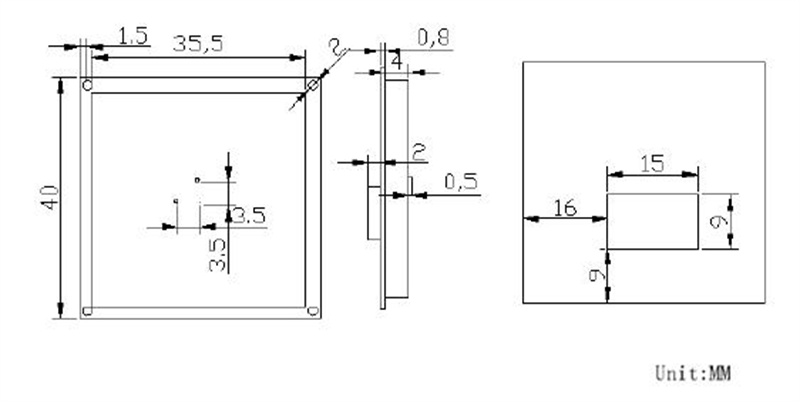

DIMENSIONS

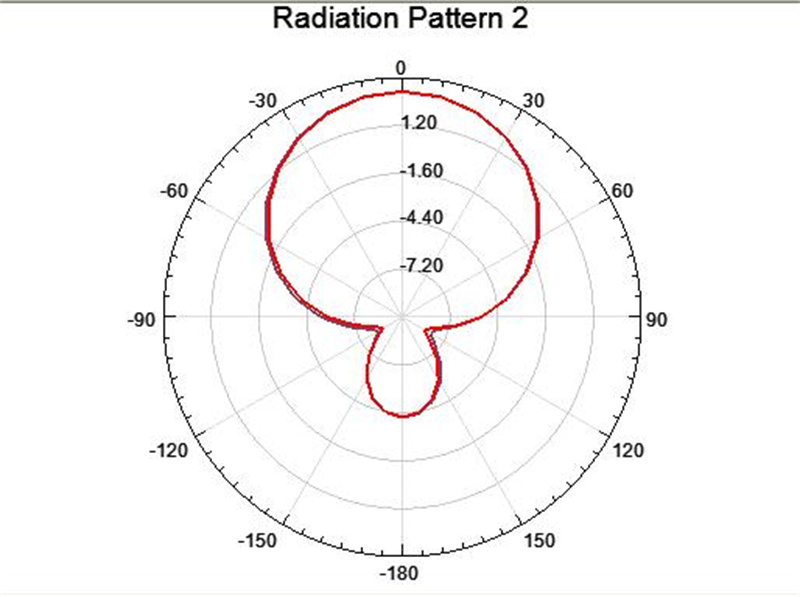

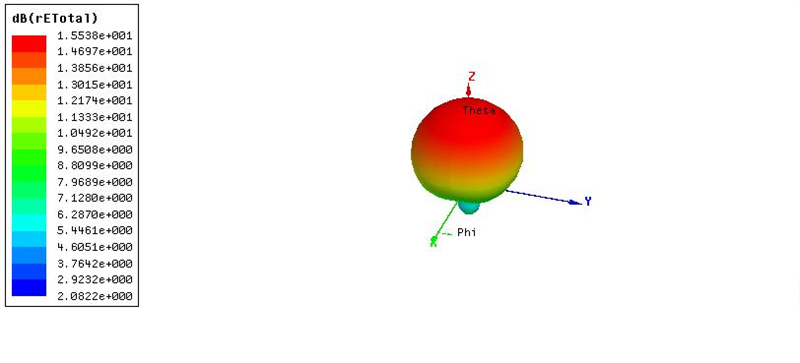

Radiation pattern
Specifications
| NO | Min | Typ | Max | Unit | |
| 1 | Part Number | T35404W | Each | ||
| 2 | Type | Microstrip ceramics antenna | |||
| 3 | Operating Frequency | 922.5MHz±8MHz | MHz | ||
| 4 | Polarization | RHCP | |||
| 5 | Peak Gain | 1.5 | dbic | ||
| 6 | Beamwidth | >16.0 | MHz | ||
| 7 | VSWR | 1.5:1 | MHz | ||
| 8 | Axial Ratio | <2.0 | Db | ||
