Overview
| Functional parameters | |
| Model | TAG-915-Sensor-955015 |
| Frequency range | 860-960MHz |
| Chip capacity | EPC 128bits , user 1321bits, TID 96bits |
| Chip | KX2005-XMP |
| Read-write protocol | EPC Class1 Gen2; ISO18000-6C |
| Function | Read/Write |
| Reading distance | >3m(The reading distance varies depending on different devices.) |
| Physical parameters | |
| Antenna material | Copper + Gold |
| Chip connection method | Bonding glue |
| Chip fixation method | Zhengbangding |
| Size | 95 * 0.15 * 5 mm |
| Adhesive backing | 300LSE |
| LED light color | red |
| Printing, printing | Silk-screen printable |
| Label material | FPC, epoxy resin adhesive for chip position encapsulation, transparent epoxy resin adhesive for LED position encapsulation |
| The color of the bare signature | White, customizable |
| Environmental parameters | |
| Working temperature | -10℃~ +55℃ |
| Storage temperature | -20℃ ~ +70℃ |

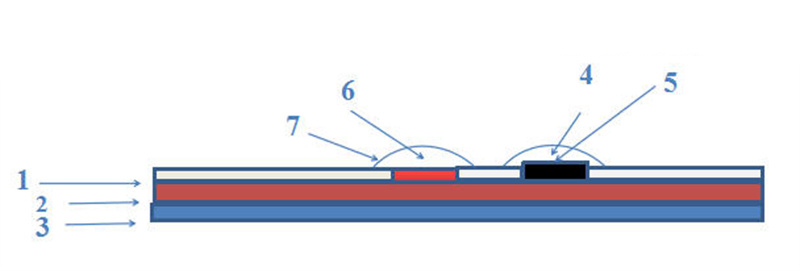

Electronic tag structure
1. PI surface substrate;
2. Copper antenna;
3. PI base material;
4. Black epoxy resin adhesive;
5. Chip;
6. LED lights;
7. Transparent epoxy resin adhesive.

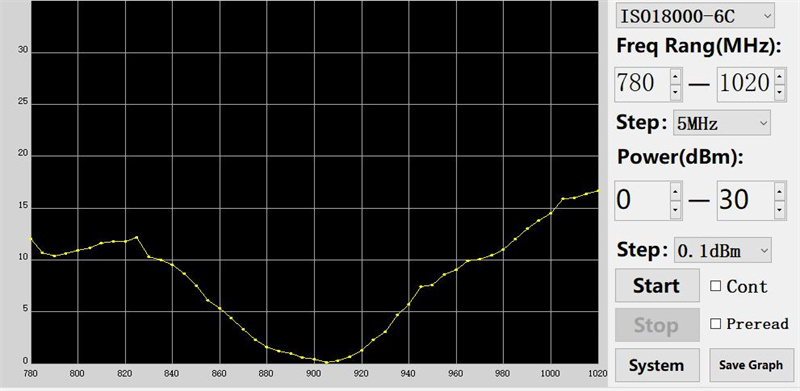

Performance curve test graph
