Overview
It is a general antenna for UHF RFID applications with high gain and low VSWR.
The compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with Gasket and silicone and strengthening rib of shell.
Is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and retail item management.

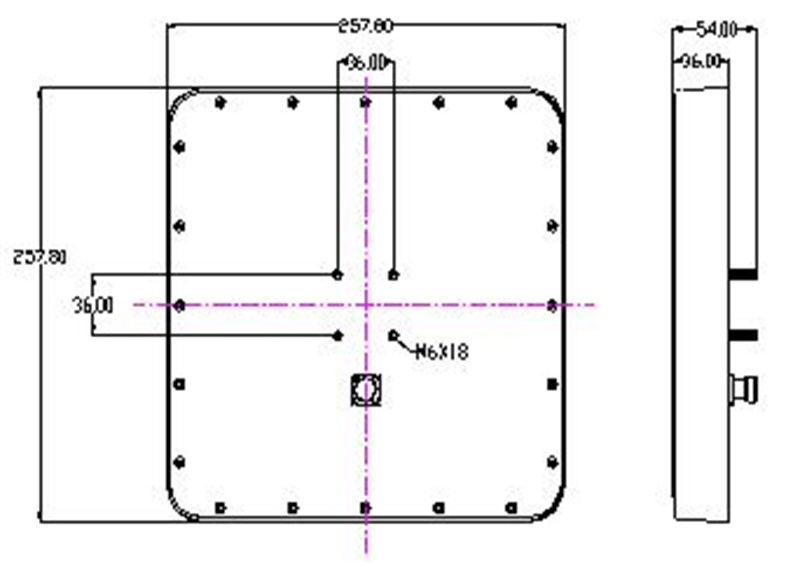

Dimension

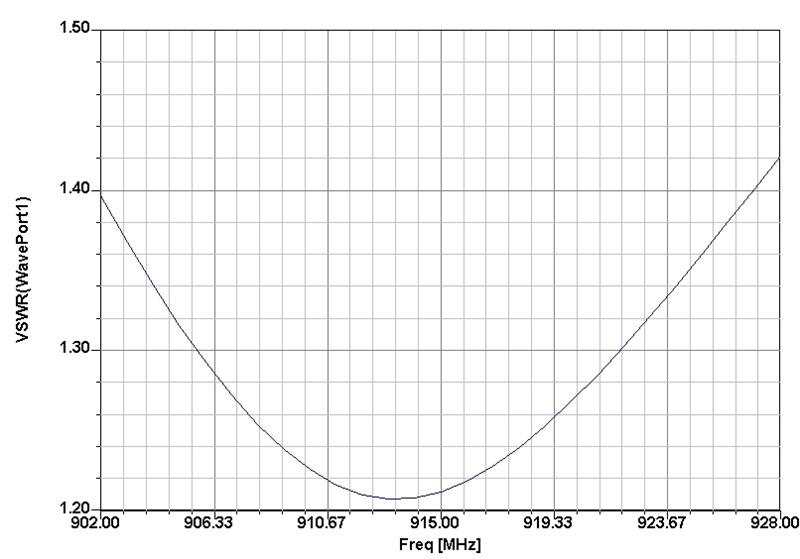

VSWR

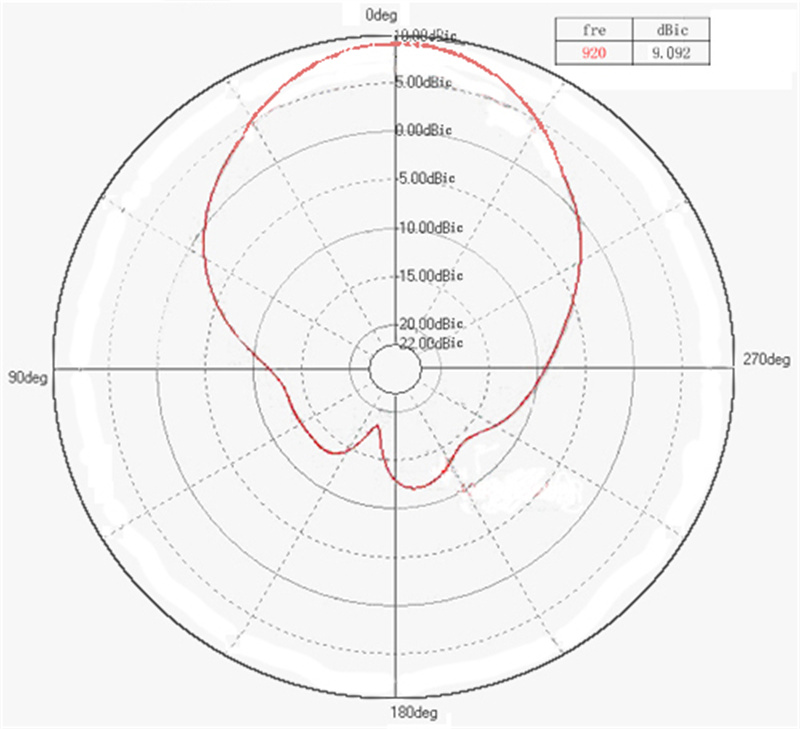

Gain

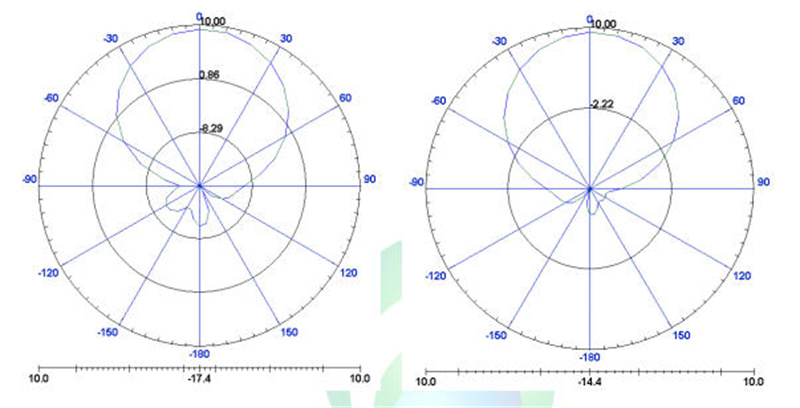

Radiation Pattern

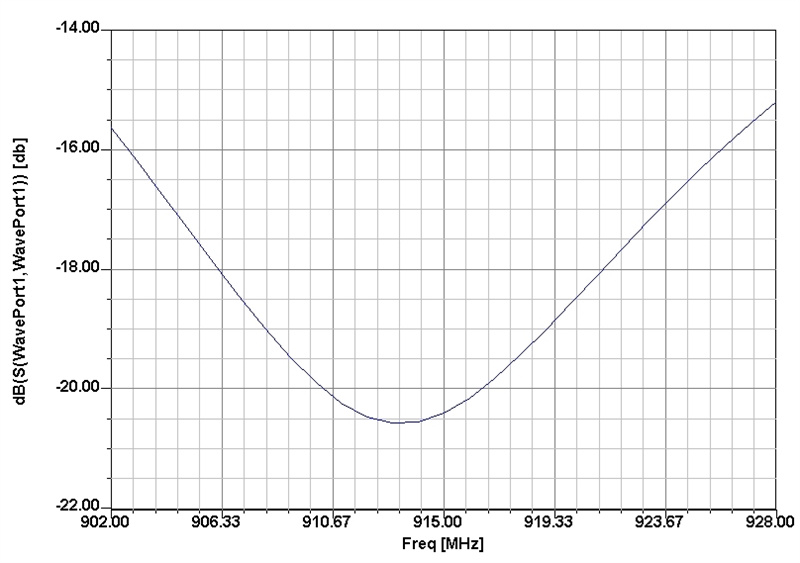

Input port-1 Scattering-parameters
Specifications
Electrical Specifications
| Model | RFA915-9V70 |
| Frequency Range(MHz) | 902-928MHz |
| Gain | >9dBic |
| VSWR | ≤1.3:1 |
| 3dB Beam-Width, H-Plane | 70° |
| 3dB Beam-Width,E-Plane | 70° |
| Polarization | Linear Polarization |
| Relative Humidity | 5%~95% |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | N-50KFD (Type N Female) (One input ports) |
| Antenna Dimension | 258×258×56mm |
| Weight | 0.91kg(without bracket) |
| Material | Engineering Plastic ASA,Aluminums |
| Waterproof Level | IP67 |
| Stire Temperature | -40℃~+ 85℃ |
| Operating temperature | -40℃~+ 85℃ |
| Color | Ivory -white |
